CNC Angle Line - Peddinghaus Angle Line - AFPS 643 - Anglemasters - Automatic CNC Angle Line - Steel Fabrication Angle Shearing - Metal Fabrication Shearing - Fabricate Angle Iron
Punching, Shearing, Roller Measurement, Scribing, Hard Stamp

The Right Solution for My Shop?

AFPS-643/623 - AngleMaster - Angle Line Machine - Detailing Machine - Angle Iron - Flat Stock
The Right Solution for My Shop?

Providing the most accurate, productive, and profitable parts are essential to operation. Successful fabricators currently use the AFPS-643/623 to automate angle iron and flat stock processing with one machine that can deliver accurate, finished parts in seconds. A typical 6" x 6" x 5/8” clip angle with twelve holes, can be punched, marked, and sheared to a finished length in less than one minute.

Shim plates, cap plates and similar connections can be processed in no time; with the AFPS-643/623, change over time is less than 5 minutes, by simply changing the shear blade.
  Parts That Can Be Processed on the 643
AFPS-643/623 Anglemaster
Parts That Can Be Processed on the 643

The AFPS-643/623 can process the following with ease:
  • Clip Angles/Cleats
  • Angle Bracing
  • Wind Tower Components
  • Transmission Tower Connections
  • Grain Handling/Conveyor processing
  • Agricultural Components
  • Shear Tabs
  • End Caps
  • Web Stiffeners
  • Splice Plate Connections
  • Angle Connections

Production Versatility

AFPS-643/623 - AngleMaster - Angle Line Machine - Detailing Machine - Angle Iron - Flat Stock
Production Versatility

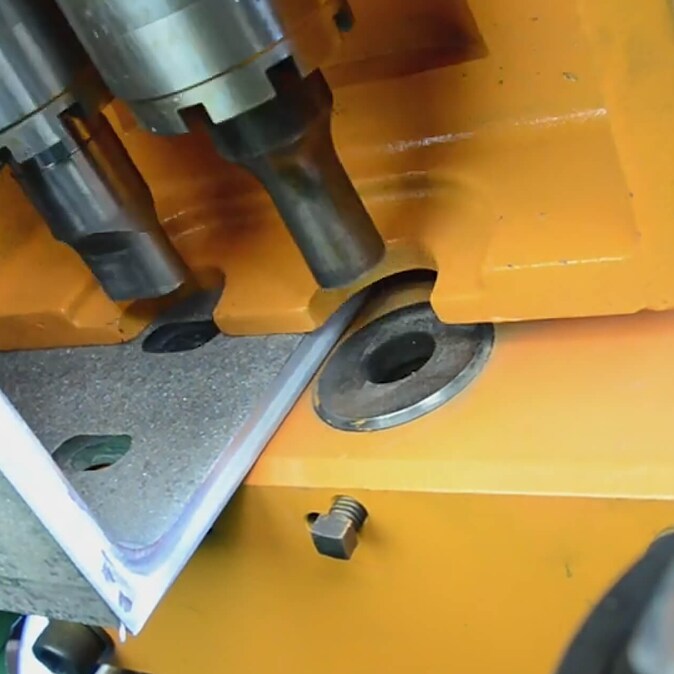

The AFPS-643/623 can punch round or shaped holes (obrounds, slots, etc), mark the parts, and shear parts to length in one-pass, minimizing scrap.

The Anglemaster can be provided with complementary loading and unloading equipment, to minimize material handling and further expedite production.






Support

24 Hour Steel Fabrication Support
Global Support

At Peddinghaus service is our top priority. Peddinghaus offers a global team of customer support representatives that are always available at the Peddinghaus 24 hour customer support center. Through state-of-the-art remote diagnostic software, readily available local field support, and the industry leading warranty, support from Peddinghaus is only a call or a click away.
  24 Hour Tech Center
24 Hour Tech Center
24 Hour Tech Center

To service our global clientele, Peddinghaus proudly provides our partners with 24 hour technical support. Our inside service staff have years of experience in the field, assembly, or factory checkout; providing them with hands-on experience with most machines. At Peddinghaus our staff is not only available when you need them, but they maintain superior knowledge to solve questions as they arise.
  Powerful Field Service Staff
Powerful Field Service Staff
Powerful Field Service Staff

Although 90% of support issues can be resolved by our 24 Hour Tech Support center, an expansive network of 50+ Peddinghaus field service personnel are stationed throughout North and South America, Europe, Africa, Asia, Russia, and Australia.
  Remote Diagnostics
Remote Diagnostics
Remote Diagnostics

Peddinghaus inside service technicians don't need to be at your machine to solve a question you may have. A common internet connection is all that is needed for the Peddinghaus technician to operate your control as if he was standing with you at the machine. The Powerful Windows® based Siemens control used on Peddinghaus equipment allows for this capability, and provides superior diagnostics via Windows® based atmosphere.
  Web Camera Troubleshooting
Web Camera Troubleshooting
Web Camera Troubleshooting

Not every problem can be diagnosed with remote assistance. Mechanical issues or questions that require the human eye are still common. Peddinghaus machines are shipped with high definition web cameras and software; allowing Peddinghaus employees to vividly experience the activity at the installation without the need to leave the office.

This feature is also available as an upgrade to all existing Peddinghaus machines maintaining a Windows® interface.

Industry Applications

Industry Applications

The AFPS-643/623 has unparalleled potential, with capacity to process angle from 1-1/2” up to 6” and 6” flat stock. The innovative one-pass design, make the Anglemaster an ideal valuable tool for many industries. Several industries can benefit from the AFPS-643/623, such as:
  • Structural Steel Fabricators
  • Steel Service Centers & Steel Stocking Centers
  • Transmission Tower Manufacturers
  • Heavy Equipment Manufacturers
  • Agricultural Manufacturers
  • Rock/Stone/aggregate Handling Manufacturers
  • Stadium Seating & Bleacher Manufacturers
  • Barge and Ship Building Manufacturers
  • Conveyor and Grain Handling Equipment Mfg.
  • Any application where angle iron, and flat stock, is processed

Punching

AFPS-643/623 - AngleMaster - Angle Line Machine - Detailing Machine - Angle Iron - Flat Stock

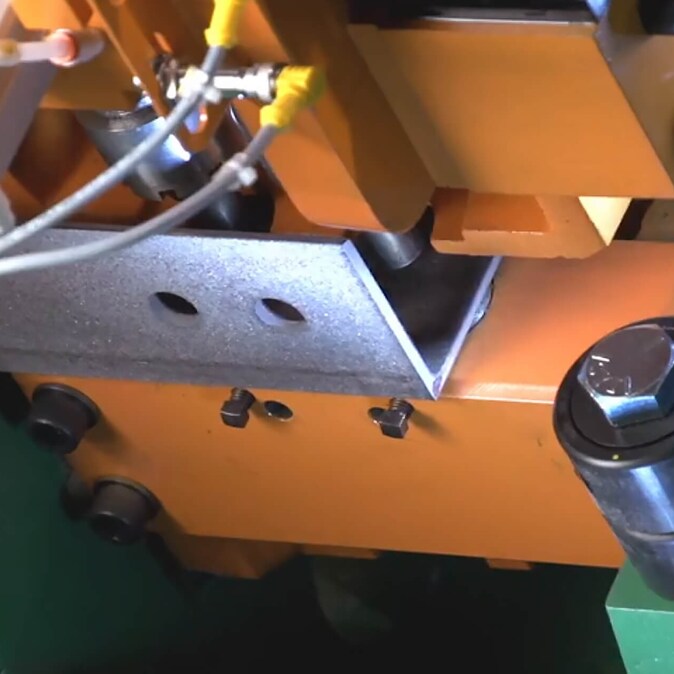

Punching

Two robust 75 ton hydraulic cylinders mounted on a processing table are employed for punching on the AFPS-643/623. These powerful cylinders aid in the production of a wide variety of angle sizes ranging from 1/8" thick to 5/8" thick.

For faster, more accurate production, the AFPS-643/623 offers a hydraulic hold down clamp unit. This assembly assists during the punching process regardless of tooling clearance. This, in addition to a rugged clamping system allows bent/twisted angle to be processed with ease.

When maintenance or manual tool change is a concern a unique “easy out” die design facilitates tool changes, for expedited production. Each punch stem has key ways machined for correct orientation of shaped tooling. Optional tooling packages are available to achieve very tight gauge lines on any size angle iron.

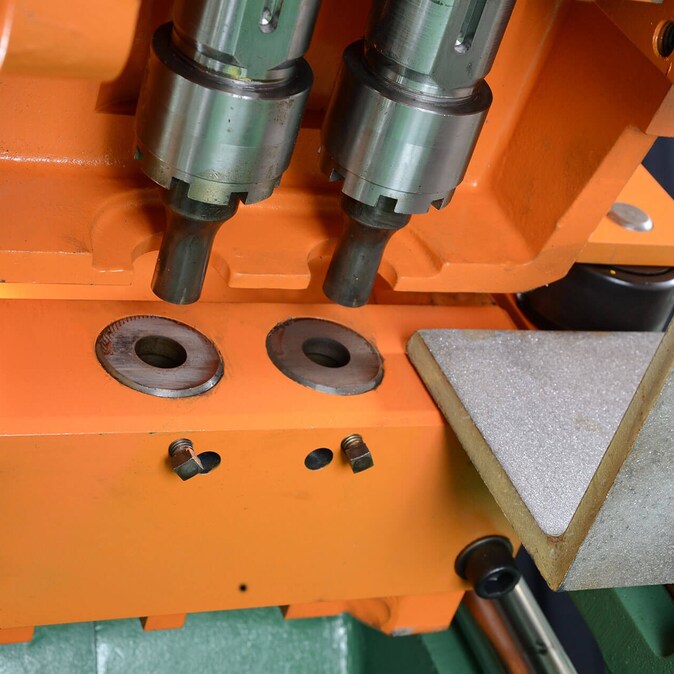

  The 643 Design with 2 Punches per Leg
The 643 Design with 2 Punches per Leg

Double tool punching is available with the 643 version of the Peddinghaus Anglemaster. This version utilizes 2 punch stations per hydraulic press, and thus allows the machine to apply up to 2 different hole shapes/sizes per leg without the need to manually change punch and die tooling. The AFPS-643/623 can accommodate shaped holes such as square, rectangular, obround, or slots.
  The 623 Design with 1 Punch per Leg
The 623 Design with 1 Punch per Leg

The economical AFPS-623 model of Anglemaster utilizes two punch presses, each with one hole diameter per each leg of angle, or flat stock section.
  Material Guidance
AFPS-643/623 Anglemaster Material Guidance
Material Guidance

The AFPS-643/623 features an unmatched clamping system for a rigid work piece through the machine. Equipped with two hydraulic roller clamps for stabilizing material during production, the AFPS-643/623 maintains center to the primary support wheels. During the Machine cycle, four additional pneumatic hold downs serve to clamp flat and angle iron, assuring accuracy, productivity, and increases tool life.

Shearing

AFPS-643/623 - AngleMaster - Angle Line Machine - Detailing Machine - Angle Iron - Flat Stock

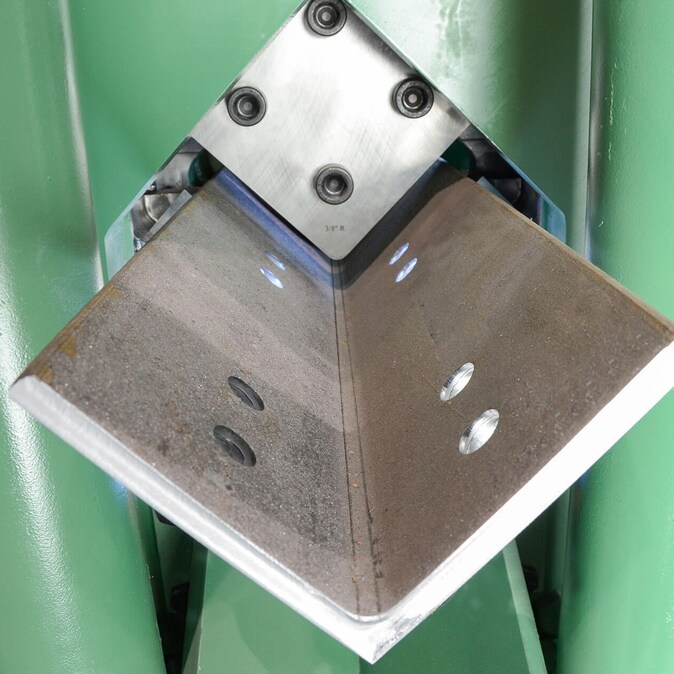

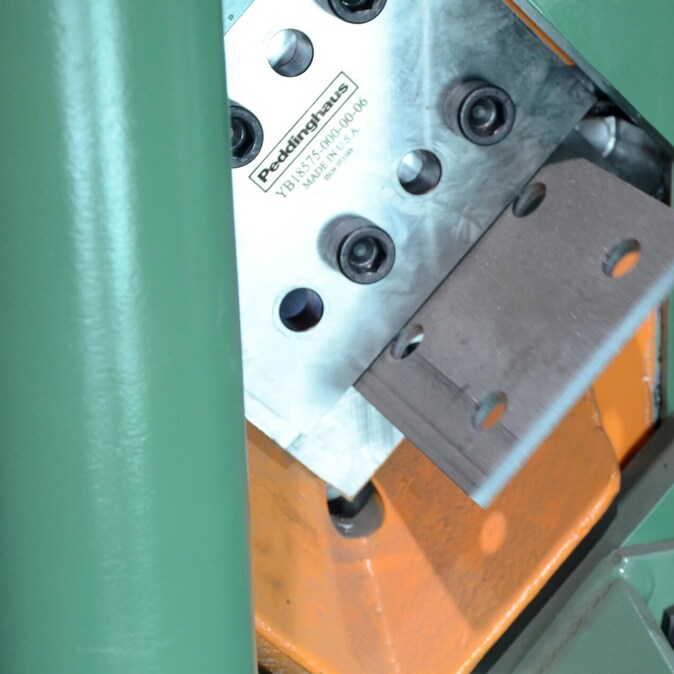

Shearing

Featuring a 230 ton shear, the Anglemaster utilizes single cut tooling which eliminates the creation of a shear “slug”. This ensures minimum scrap and material waste. Changeover time to process angle iron to flat stock is significantly reduced to five minutes, simply change the shear blade.





Measurement

AFPS-643/623 - AngleMaster - Angle Line Machine - Detailing Machine - Angle Iron - Flat Stock

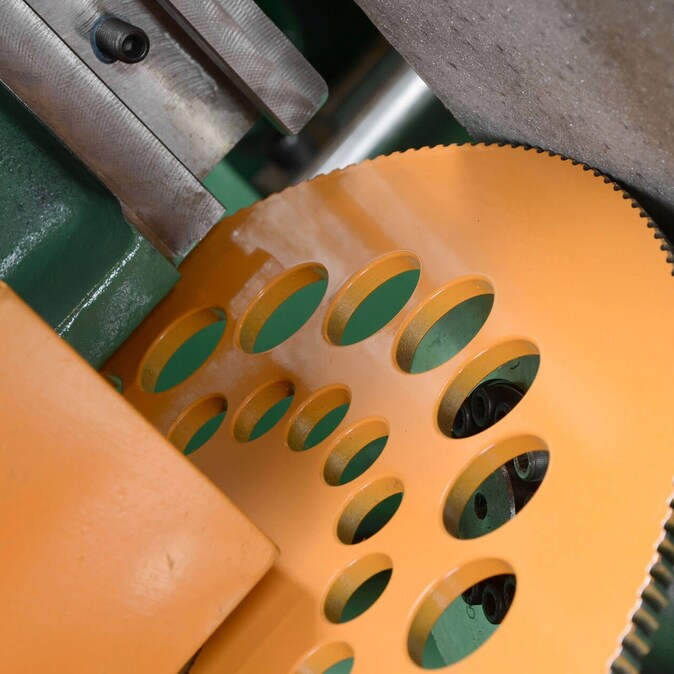

Roller Measurement

Peddinghaus' Roller Measurement allows for supreme flexibility in regards to material handling, and scrap savings. This unique form of measurement actually drives the material through the machine with a powerful drive roller mechanism. By applying a set of precision encoders that track distance the material has traveled, the machine is able to quickly and accurately produce perfect parts. Benefits of the Peddinghaus Roller Feed system can include:
  • Minimized footprint - store material outside, and allow material to easily pass through a small doorway through the exterior walls of your facility
  • No length restriction - stock length is dictated only by weight
  • Load profiles of all shapes and sizes one after another without any stop in production - no need to wait for the return or unload of a gripper carriage, no need to change clamping devices

Part Marking

AFPS-643/623 - AngleMaster - Angle Line Machine - Detailing Machine - Angle Iron - Flat Stock
Part Marking System

Whether it's piece marking, or layout marking, the AFPS-643/623 Anglemaster is capable of clear, concise part designation on all profiles that it processes.

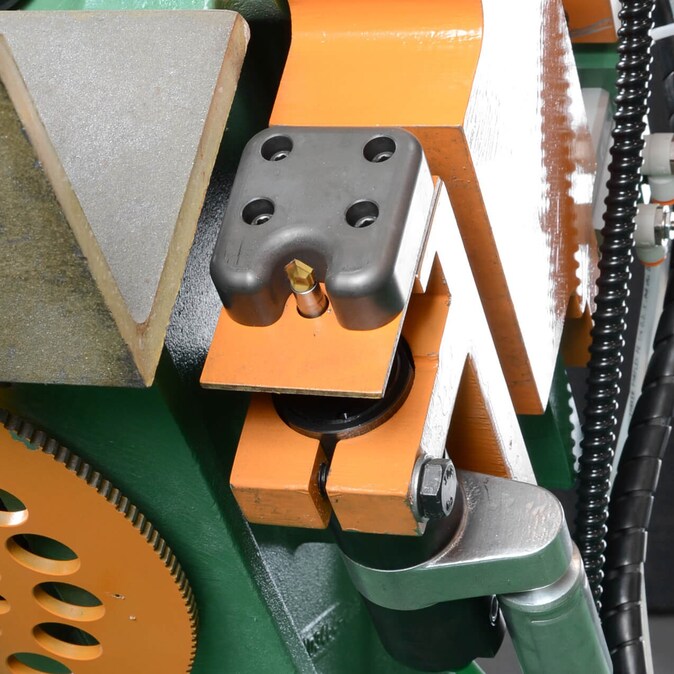

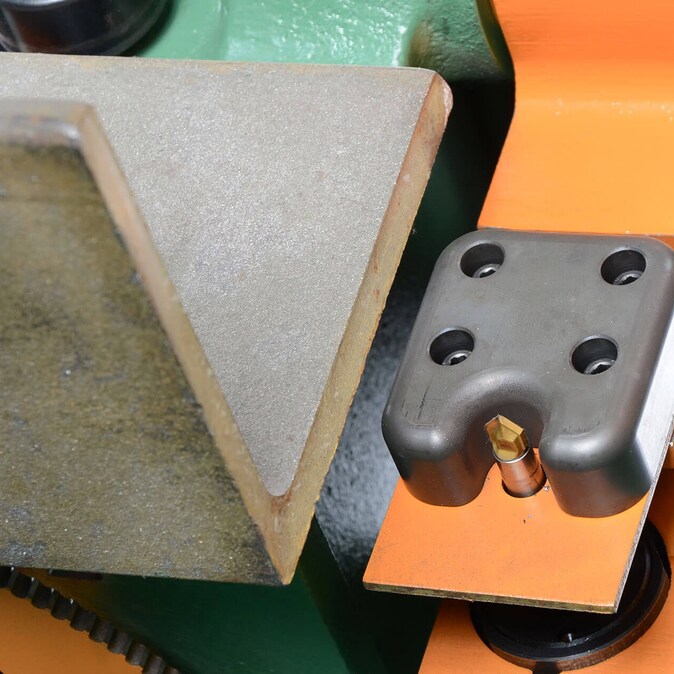

  SignoScript Carbide Scribing
SignoScript Carbide Scribing
SignoScript Carbide Scribing

SignoScript carbide part marking offers unmistakable accuracy when layout or part marking the surface of any angle or flat stock piece. Providing unlimited marking data, and complete legibility, the SignoScript marking system is perfect for galvanized or painted material. Multiple marking depths are available for desired visibility after coatings processes (adjustable marking depth of 1/16" - 1/8").

Carbide Scribing is ideal for:
  • Marking part numbers - Visible after painting, galvanizing, or other coating processes
  • Designating weld locations
  • Providing contour marks for manual cutouts
  SignoMat Part Stamping
SignoMat Part Stamping
SignoMat Part Stamping

SignoMat part stamping is the high speed part marking alternative to carbide scribing. Capable of holding up to 36 characters, SignoMat can mark one character every 1.5 seconds for fast, legible work piece identification.

Siemens Control

AFPS-643/623 - AngleMaster - Angle Line Machine - Detailing Machine - Angle Iron - Flat Stock
Siemens Control

The AFPS-643/623 Anglemaster comes standard with the industry leading CNC control panel from Siemens. This powerful multi-axis control panel offers the flexibility of a Windows® interface, while maintaining the robust design and quality of a shop hardened CNC Control. The unmatched global access to spare parts, service and industry leading warranty prove Siemens to be the ultimate electronics provider in today’s modern machine tool market.

Siemens 840 Di CNC Control is used to power the AFPS-643/623 Anglemaster. Basic features of the Siemens 840 Di control:
  • Op -1-C Slimline operator panel with large 10.4 TFT color display and keyboard
  • Integrated machine control panel
  • Integrated Siemens PLC system with built in diagnostics
  • Extensive part program storage in RAM and on hard disk
  • Metric/Inch programming
  • Manual data input via keyboard
Menu selectable operating modes:
  • Automatic Mode, used to select and execute a part program stored in memory
  • Single block Mode, used to select and execute a part program stored one block at a time

Material Handling

AFPS-643/623 - AngleMaster - Angle Line Machine - Detailing Machine - Angle Iron - Flat Stock
Material Handling

Loading and unloading of long angle iron and flat stock sections, is very expensive and hard work. An Anglemaster material handling system alleviates cost and labor associated with moving sections, with the use of a rapid, automated sequence process. Reduced labor and increasing shop efficiency will result in more profitable processing of angle iron.

Material does not need electricity, heat, or shelter in order to be stored. Peddinghaus' Roller Feed design makes it easy to place material handling outdoors. On top of saving shop space, this innovative method eliminates unnecessary crane handling that inhibits other operations inside of your shop. Easily unload delivery trucks outside, and load conveyor without slowing other parts of your production.
  Automatic Angle & Flat Stock Loader
Automatic Angle & Flat Stock Loader
Automatic Angle & Flat Stock Loader

Complete with appropriate material storage stands, each 12' stand is equipped with a motorized roller chain assembly for automatic advancement of material. A pneumatic indexing assembly is mounted on the AFPS, and is designed to gradually lower the next stock length into the infeed conveyor system.
  Automatic Material Advance
Automatic Material Advance
Automatic Material Advance

The Powered Material Advance (PMA) device moves material forward that is placed within the clamp. After the material stock is loaded onto the infeed, the PMA is capable of moving the material in both directions, as well as “jogged” into position.

The combination exit conveyor and unloading system are designed for 20 ft. material, however, both can be expanded to accommodate any length of part. The conveyor system offers two separate unloader locations, designed to transport sheared angles at speeds up to 200 FPM. The Peddimat software system synchronizes and controls the exit conveyor and unloading system.

Software

CAD/CAM - Raptor Software - Tekla API
Raptor Software

Raptor software from Peddinghaus is today's premier structural machine tool CAD/CAM platform. Equipped with versatile modules intended to import, design, and export part programs, Raptor is fully customizable for the unique needs of the individual fabricator.

http://www.peddinghaus.com/raptor
  3D Module - Modify, Inspect, Create
Raptor CAD/CAM Software
3D Module - Modify, Inspect, Create

The core of Raptor is the 3D Module. If part data has been imported into Raptor, the 3D Module works as an inspection tool and is capable of modifying imported information. If part files need to be created, the intuitive design and user friendly interface of the 3D Module allows for powerful programming options.
  Tekla API Import Module
Raptor CAD/CAM Software
Tekla API Import Module

For fabricators who desire a more precise, data rich import, a direct Tekla API Module is available for optimized file conversions. Users of Tekla Structures have the option of importing geometry directly into Raptor with no intermediary file conversions. This direct transfer sources the original design of the structure and allows for automatic generation of scribe data.
  DSTV Import Module
Raptor CAD/CAM Software
DSTV Import Module

BIM software programs (such as SDS/2, Tekla Structures, Graitec, and more,) are capable of creating part programs for use within Raptor by exporting data into a common file standard - DSTV. DSTV files are capable of being imported into the Raptor software platform for editing or CNC file creation purposes.
  DSTV Export Module
Raptor CAD/CAM Software
DSTV Export Module

Raptor is capable of exporting part information into a DSTV file format (including scribes, copes, and holes). All enhancements or corrections applied within Raptor are included within the exported DSTV file using this module. The DSTV export module brings the power of Raptor to third party CNC machinery that can import files of this type.
  iDSTV+ and DSTV+ Import/Export Module
Raptor CAD/CAM Software
iDSTV+ and DSTV+ Import/Export Module

Select MRP systems are capable of exporting batch nested files in formats known as DSTV+ and iDSTV+. These file types play an important role in the automated development of cut sheets for production. Raptor is capable of importing and exporting these iDSTV+ and DSTV+ files for production on equipment. This eliminates the need to manually batch nest files, which have already been batch nested within a third party MRP software. Standard DSTV import and export modules are included with the iDSTV+ and DSTV+ Import and Export module.
  Peddimat Import and Export Module
Raptor CAD/CAM Software
Peddimat Import and Export Module

The Peddimat Import/Export Module provides users the ability to create new Peddimat files or utilize existing Peddimat files with Raptor. This option allows users complete flexibility in regards to legacy software compatibility.
  Parts Tracking Module
Raptor CAD/CAM Software
Parts Tracking Module

The Parts Tracking Module is for monitoring the production of parts on Peddinghaus machines using Siemens controls. Now available as an option with Raptor software, the Parts Tracking Module works in the background of the CNC control creating output files that display vital information about part production.

Benefits of the Parts Tracking Module include:
  • Automatic documentation of production
  • Potential to view progress remotely
  • Ability to monitor employee productivity
  • Elimination of human error in the production monitoring process

Machine Specifications

Machine Specifications - AFPS 643


Maximum Angle Capacity
6" x 6" x 5/8"
Minimum Angle Capacity
1-1/2" x 1-1/2" x 1/8"
Maximum Flat Stock Capacity
6" x 5/8"
Minimum Flat Stock Capacity
2" x 1/4" OR 3" x 3/16"
Maximum Hole Size
1-1/4"
Punch Capacity
75 tons
Shear Capacity
230 tons
Type of Shear Blade
Single Cut
Machine Weight
12,000 lbs
