Overview

  • Robotic Welding
  • Robotic Tacking
  • ABB Welding Robot
  • Parts Handling Robot
  • Parts Scanning Unit
  • Laser Measurement
  • Integrated Profile Turning
  • Single Rail Design
  • Secure Profile Clamping
  • Steel Beam Assembly
  • Siemens Advanced Control
  • ProFit Software

Maximum Weight

11,000
Lbs Per Profile

Accuracy

1/24"
Over 60' Profile

World Leader in Tacking and Welding

Request Quote

The Absolute Solution for Steel Beam Assembly

The PeddiAssembler, powered by Zeman, is the absolute solution for steel beam assembly. This fabrication shop supercharger has been designed specifically to speed up one of the most time-consuming areas of the fabrication process.

Robotic Welding for Structural Steel

Revolutionary Tacking and Welding

Use this machine to place all welded connection plates with unrivaled accuracy and remove human error with laser precision. Run by a single operator, the PeddiAssembler excels in repeatability and reliability.

Premier Robotics for Top-Notch Processing

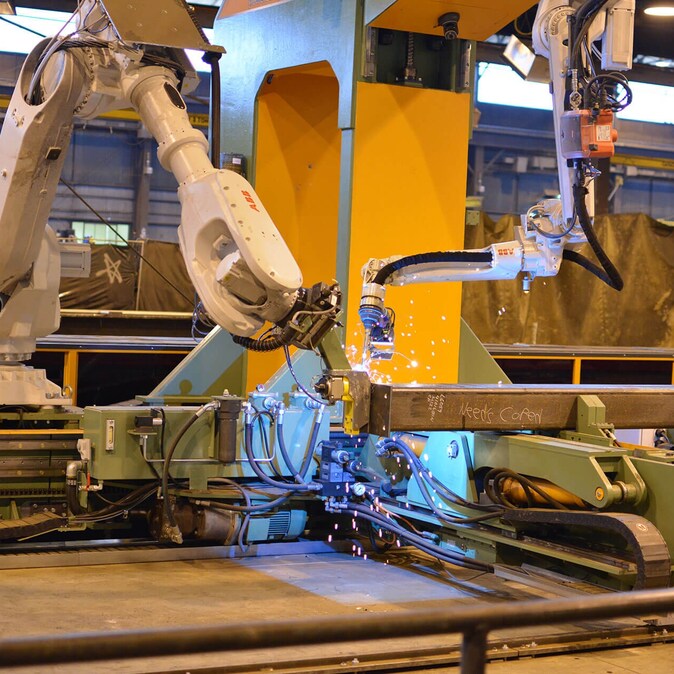

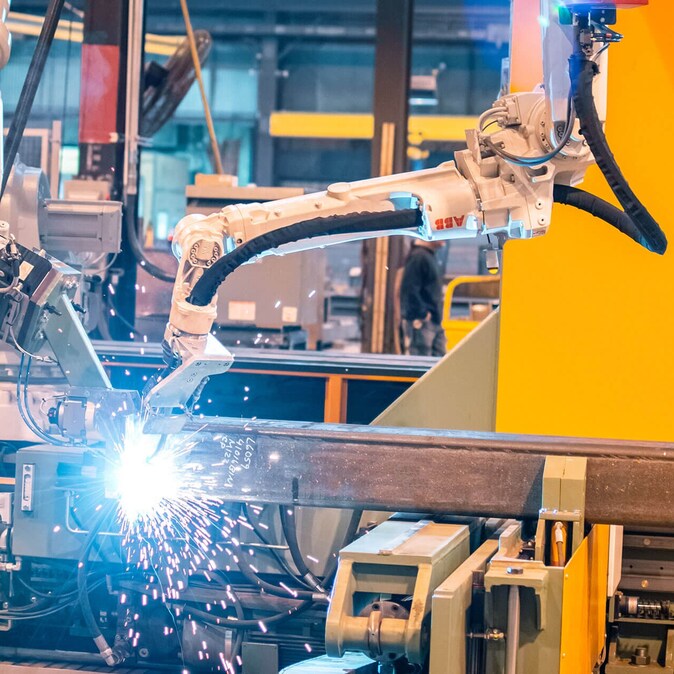

Designed and built by ABB, a world leader in robotics, the tacking robot is paired with both a handling and parts scanning robot. This unbeatable combination effortlessly places parts up to 440 lbs (200 kg) and assembles entire beams, tubes and channels.

Premier Robotics for Top-Notch Processing

Integrated Profile Turning Device

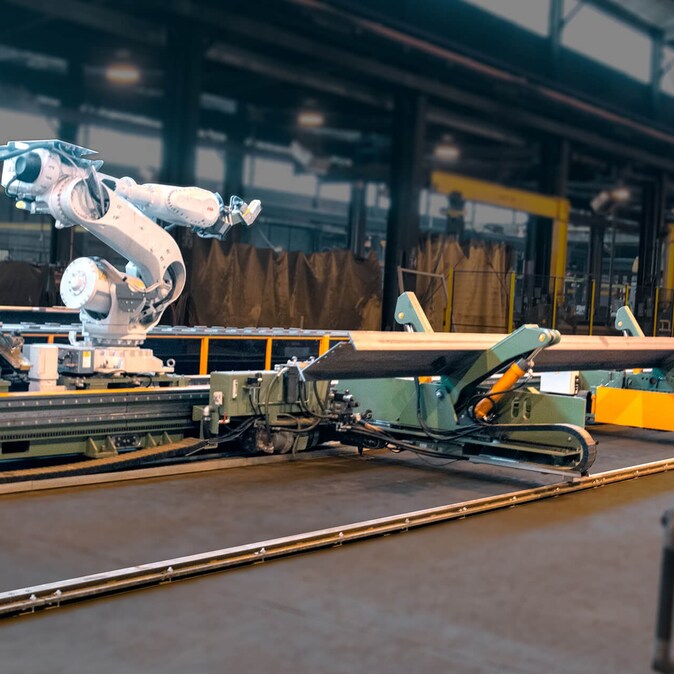

In order to ensure smooth and continuous production, the main profile is stabilized by integrated profile turning devices on the PeddiAssembler. These turning devices rotate the beam as needed for welding on all sides of the material.

Integrated Profile Turning Device

Repeatable Accuracy with the Laser Scanning System

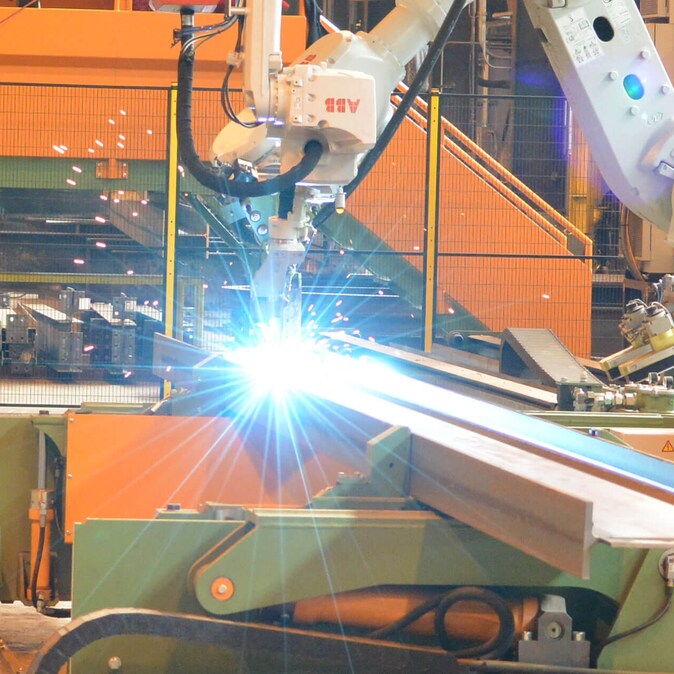

The PeddiAssembler is equipped with an intelligent laser measurement system to detect positional dimensions and tolerances of the material. The material scanning takes place as one continuous cycle. Each part is scanned on the table individually, and can also be in the form of pre-welded parts.

Repeatable Accuracy with the Laser Scanning System

Single Rail Design

The whole robotics system rests on a single rail design which maintains a small machine footprint. The compact design only occupies the space of one fitter station.

Single Rail Design

Torch Mounted Laser Measurement

The PeddiAssembler's torch mounted laser measurement is able to locate the zero reference for the entire process on a profile as well as define the measurements of tacked parts.

Torch Mounted Laser Measurement

ProFit Software

This machine is outfitted with Zeman's ProFit software that runs on a Siemens control. This cutting edge technology converts CAD file information to the machine processes with ease. The software bridges the gap and aids in helping operators determine the best process for the current material that is tacked or welded.

PeddiAssembler

Robotic Welding for Structural Steel

Profile Capacity: 16" x 30" x 60'

Bust The Processing Bottleneck

The Absolute Solution for Steel Beam Assembly

The PeddiAssembler, powered by Zeman, is the absolute solution for steel beam assembly. This fabrication shop supercharger has been designed specifically to speed up one of the most time-consuming areas of the fabrication process.

Revolutionary Tacking and Welding

Use this machine to place all welded connection plates with unrivaled accuracy and remove human error with laser precision. Run by a single operator, the PeddiAssembler excels in repeatability and reliability.

Premier Robotics for Top-Notch Processing

Premier Robotics for Top-Notch Processing

Designed and built by ABB, a world leader in robotics, the tacking robot is paired with both a handling and parts scanning robot. This unbeatable combination effortlessly places parts up to 440 lbs (200 kg) and assembles entire beams, tubes and channels.

Integrated Profile Turning Device

Integrated Profile Turning Device

In order to ensure smooth and continuous production, the main profile is stabilized by integrated profile turning devices on the PeddiAssembler. These turning devices rotate the beam as needed for welding on all sides of the material.

Repeatable Accuracy with the Laser Scanning System

Repeatable Accuracy with the Laser Scanning System

The PeddiAssembler is equipped with an intelligent laser measurement system to detect positional dimensions and tolerances of the material. The material scanning takes place as one continuous cycle. Each part is scanned on the table individually, and can also be in the form of pre-welded parts.

Single Rail Design

Single Rail Design

The whole robotics system rests on a single rail design which maintains a small machine footprint. The compact design only occupies the space of one fitter station.

Torch Mounted Laser Measurement

Torch Mounted Laser Measurement

The PeddiAssembler's torch mounted laser measurement is able to locate the zero reference for the entire process on a profile as well as define the measurements of tacked parts.
