Anglemaster-643

Angle Line Machine

Angle Capacity: 6" x 6" x 5/8"

The Industry’s Most Essential Anglemaster

The Standard for Angle and Flat Bar Production

Detail components make up the smallest tonnage of any fabricators' workload, but consistently demand the highest amount of labor. The Anglemaster-643 angle line machine is built to run constant and withstand the test of time in grueling shop environments.

Proven Precision

The preferred choice for fabricators around the world, the Anglemaster-643 allows continuous loading, punching, shearing and unloading for angle and flat stock all in one operation.

Double Tool Punch Press

Double Tool Punch Press

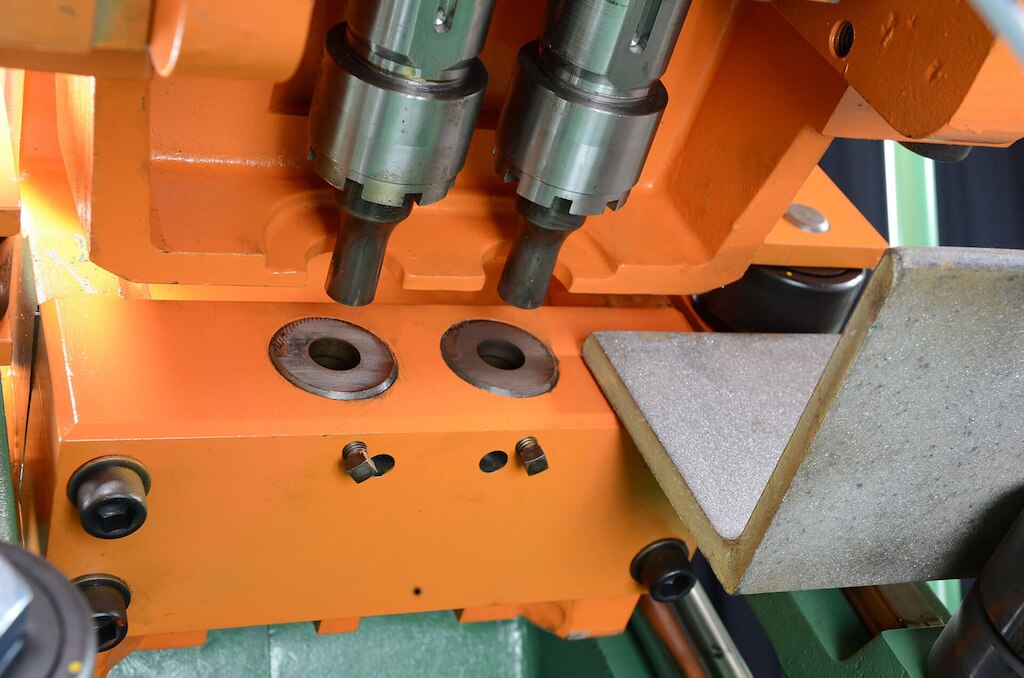

Two 75 ton punch cylinders each with two punch stations per hydraulic press allow the Anglemaster-643 to apply up to two different hole shapes/sizes per leg. This angle line machine can accommodate shaped holes such as squares, rectangles, obrounds and slots.

Powerful Shearing

Powerful Shearing

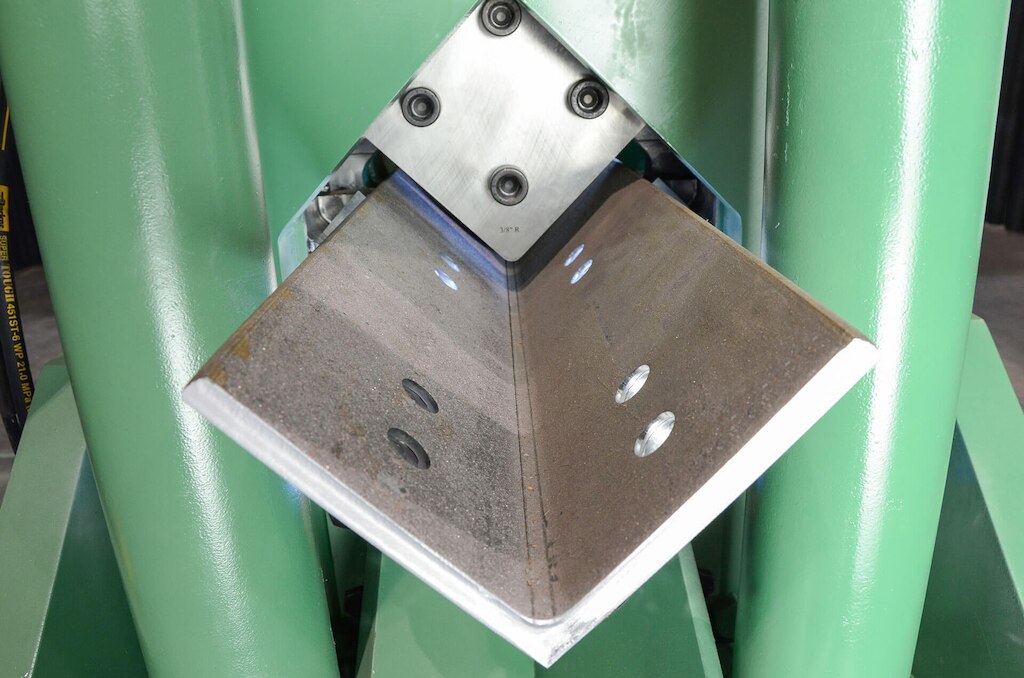

The Anglemaster-643 angle line machine uses a single cut 230 ton shear press for the cutting to length angle and flat stock. A single cut shear mechanism eliminates the slug created by double cut shear mechanisms.

SignoScript Carbide Scribing

SignoScript Carbide Scribing

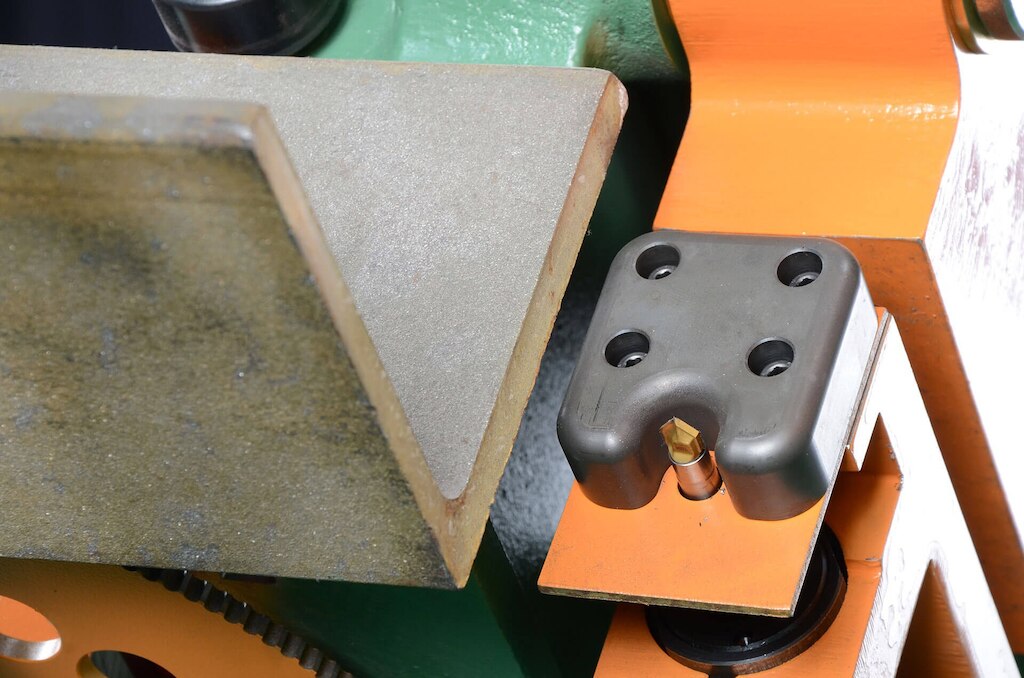

The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.

SignoMat Part Stamping

SignoMat Part Stamping

The SignoMat part stamping unit stamps at an unmatched 1 character per second with a depth of 1/32" (.8 mm) and a total height of 1/2" (12 mm). The unit holds up to 36 characters for complete part marking ability.

Nonstop Throughput with Roller Feed Technology

Nonstop Throughput with Roller Feed Technology

Equipped with the Peddinghaus Roller Feed measurement system, the Anglemaster-643 maximizes contact with the material at all times. This Roller Feed technology ensures a constant roll and an accurate measurement given deviations in material.

Infeed and Outfeed Material Handling

Infeed and Outfeed Material Handling

The infeed and outfeed material handling system, designed for continuous production, keeps the operator safe at all times. As drag chain conveyors move material to the infeed conveyors, power material advance initiates steel into the machine. Once sheared, drive rollers advance the finished parts to the unloading zone.
