Watching:FPB-1800


Overview

  • Structural Steel Plate Processor
  • Hypertherm Plasma Cutting
  • Triple Tool Punch Press
  • SignoScript Carbide Scribing
  • Roller Feed Measurement
  • Side Unloading System
  • Front End Unloading System
  • Nesting Software
  • Siemens Advanced Control

Process

1-1/4"
Thick Plate

Punch Press

3
Tool

Powering Through Plate

Request Quote

Utilize 100% of Shop Plate Production

The FPB-1800 is the solution for supplementary plate cutting and punching. This machine encompasses multiple capabilities, provides greater flexibility and maintains complete control of the quality in finished projects.

CNC Plate Punching Machine

Ditch the Burn Table, Save Money

The CNC plate processing design by Peddinghaus drives material to the operating area of the machine as opposed to bringing the operating area of the machine to the material, like traditional burntable systems. The FPB-1800 provides constant material output to downstream processes.

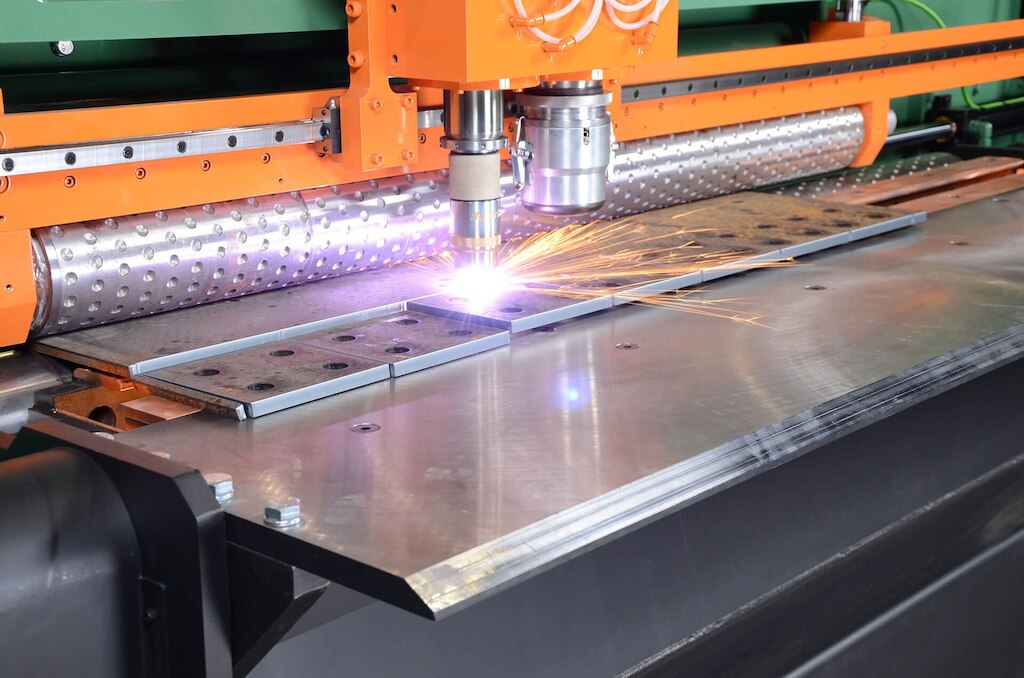

Plasma Cut 1” Thick Plate

When it comes to plate production, the FPB-1800 provides maximum durability with innovative cutting techniques. The FPB-1800 performs flawlessly for processing parts up to 1" (25 mm) thick. On average, 80% of shop plate production is 1" thick material and under.

Plasma Cut 1” Thick Plate

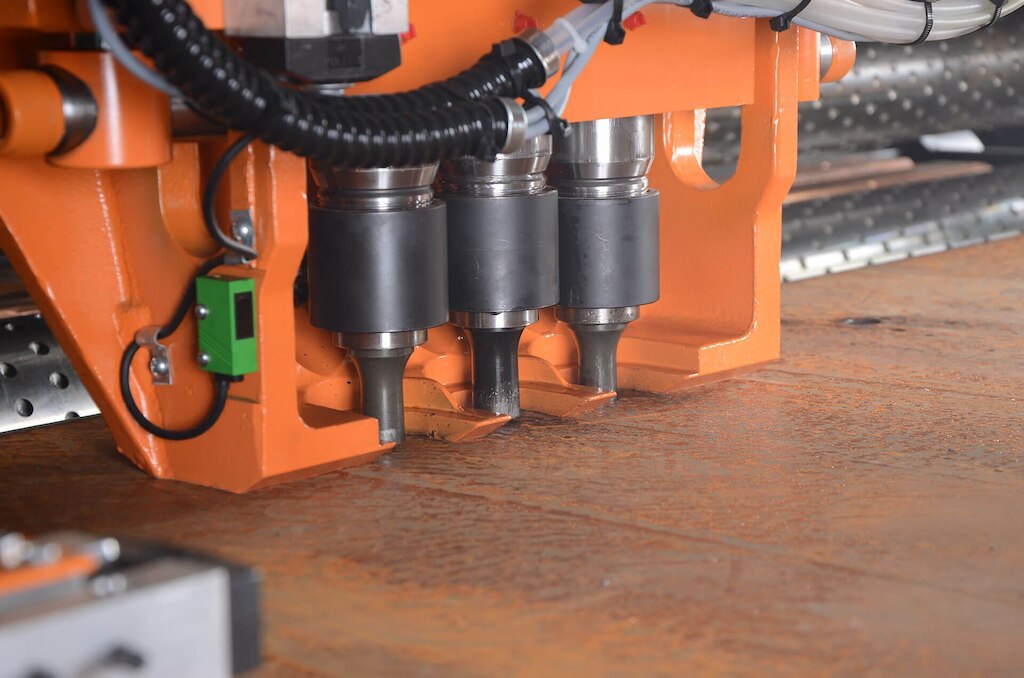

Efficiently Process with the Triple Tool Punch Press

The most cost-effective way to process holes in steel plate up to 1" thick is by using the FBP-1800. The proven 177 ton triple tool punch press of the FPB-1800 allows for maximum durability and efficiency. Capable of punching holes up to 1-3/4" (44 mm) in diameter, and maintaining up to three available punch stations, the FPB-1800 minimizes the need for timely tool changes.

Efficiently Process with the Triple Tool Punch Press

Speed And Versatility Benefits Downstream Production

This CNC plate processing design drives material to the operating area of the machine as opposed to bringing the operating area of the machine to material, like traditional burntable systems. The FPB-1800 provides constant material output for welders and fitters, allowing them to focus on assembling the end-product.

Speed And Versatility Benefits Downstream Production

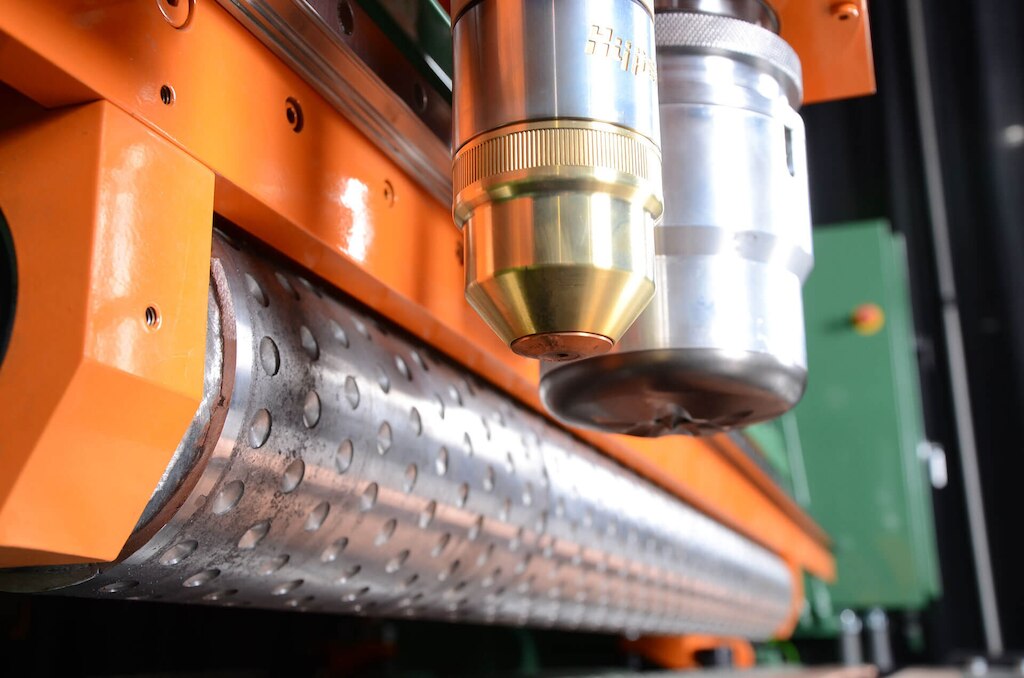

Nonstop Throughput with Roller Feed Measurement

Equipped with the Peddinghaus Roller Feed measurement system, the FPB-1800 maintains contact with the material at all times.

Nonstop Throughput with Roller Feed Measurement

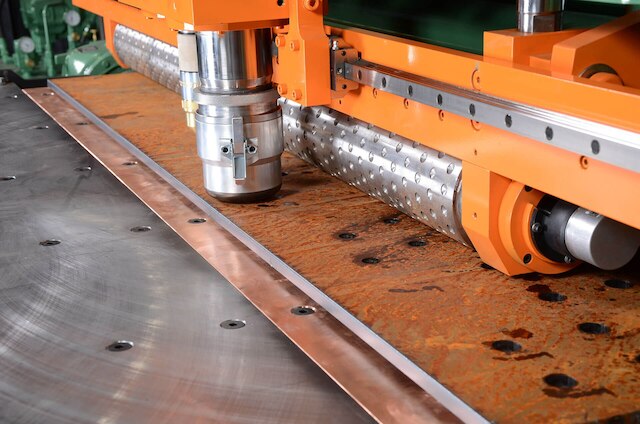

SignoScript Carbide Scribing

The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.

SignoScript Carbide Scribing

The Front End Unloading System

The Front End Unloader conveyor system is comprised of two roller transfer modules and a front end unloading belt. This is designed to streamline the handling of finished parts by conveying them from the operating area to a convenient unloading area.

The Front End Unloading System

The Side Unloading System

The Side Unloader parts conveyor is designed to allow finished parts to drop directly onto a hardened steel conveyor, delivering them to an ergonomic unloading height at the operator station. The Side Unloader conveyor option transfers parts while the machine is in continuous operation.

The Side Unloading System

SDS Plate Nesting Software

Peddinghaus plate machines proudly operate with today’s modern nesting software solution, SDS. SDS software allows fabricators to automatically batch nest existing files, edit on the fly or create parts at the control console. Peddinghaus machines are able to take full advantage of common cutline, chain cutting and edge start cutting techniques.

Need Help?

HSFDB-C

Plate Processing Machine

Maximum Plate Thickness: 4"

HSFDB-B

CNC Plate Processor

Maximum Plate Thickness: 3"

next
previous
Watching:FPB-1800


FPB-1800

CNC Plate Punching Machine

Maximum Plate Thickness: 1-1/4"

Your Everyday Plate Processor

Utilize 100% of Shop Plate Production

The FPB-1800 is the solution for supplementary plate cutting and punching. This machine encompasses multiple capabilities, provides greater flexibility and maintains complete control of the quality in finished projects.

Ditch the Burn Table, Save Money

The CNC plate processing design by Peddinghaus drives material to the operating area of the machine as opposed to bringing the operating area of the machine to the material, like traditional burntable systems. The FPB-1800 provides constant material output to downstream processes.

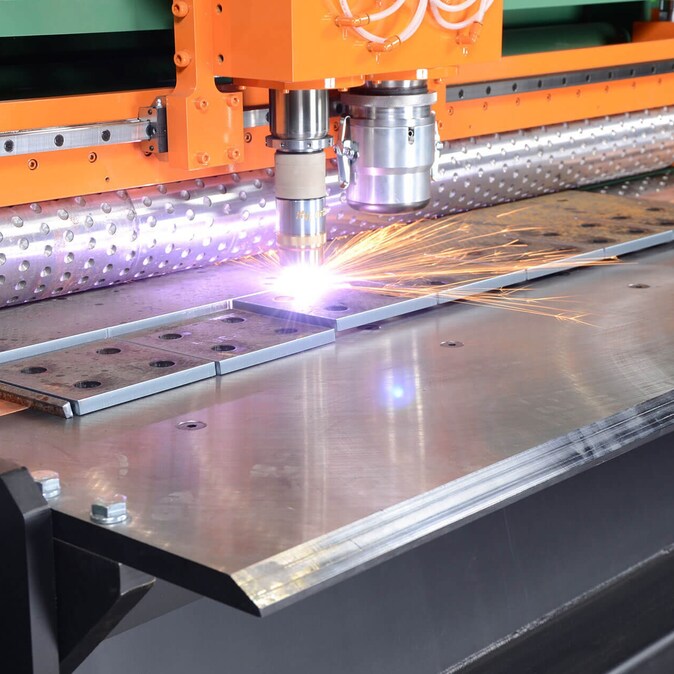

Plasma Cut 1” Thick Plate

Plasma Cut 1” Thick Plate

When it comes to plate production, the FPB-1800 provides maximum durability with innovative cutting techniques. The FPB-1800 performs flawlessly for processing parts up to 1" (25 mm) thick. On average, 80% of shop plate production is 1" thick material and under.

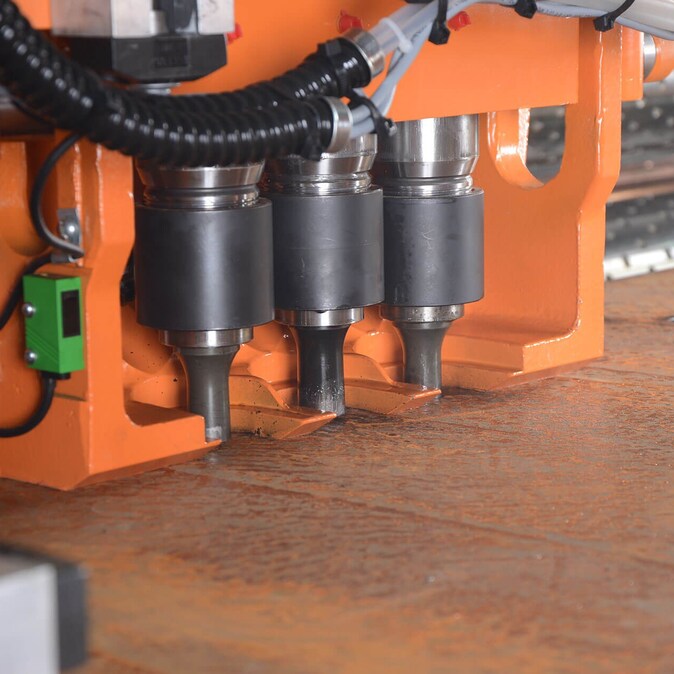

Efficiently Process with the Triple Tool Punch Press

Efficiently Process with the Triple Tool Punch Press

The most cost-effective way to process holes in steel plate up to 1" thick is by using the FBP-1800. The proven 177 ton triple tool punch press of the FPB-1800 allows for maximum durability and efficiency. Capable of punching holes up to 1-3/4" (44 mm) in diameter, and maintaining up to three available punch stations, the FPB-1800 minimizes the need for timely tool changes.

Speed And Versatility Benefits Downstream Production

Speed And Versatility Benefits Downstream Production

This CNC plate processing design drives material to the operating area of the machine as opposed to bringing the operating area of the machine to material, like traditional burntable systems. The FPB-1800 provides constant material output for welders and fitters, allowing them to focus on assembling the end-product.

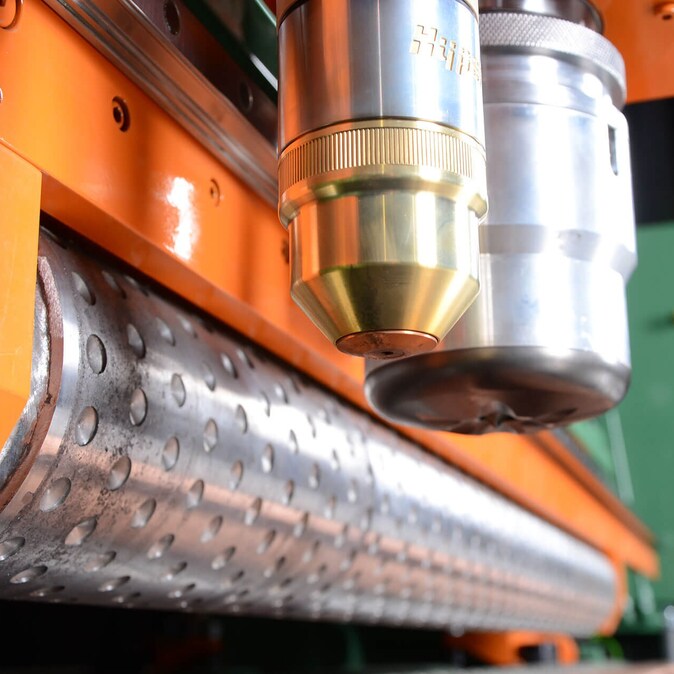

Nonstop Throughput with Roller Feed Measurement

Nonstop Throughput with Roller Feed Measurement

Equipped with the Peddinghaus Roller Feed measurement system, the FPB-1800 maintains contact with the material at all times.

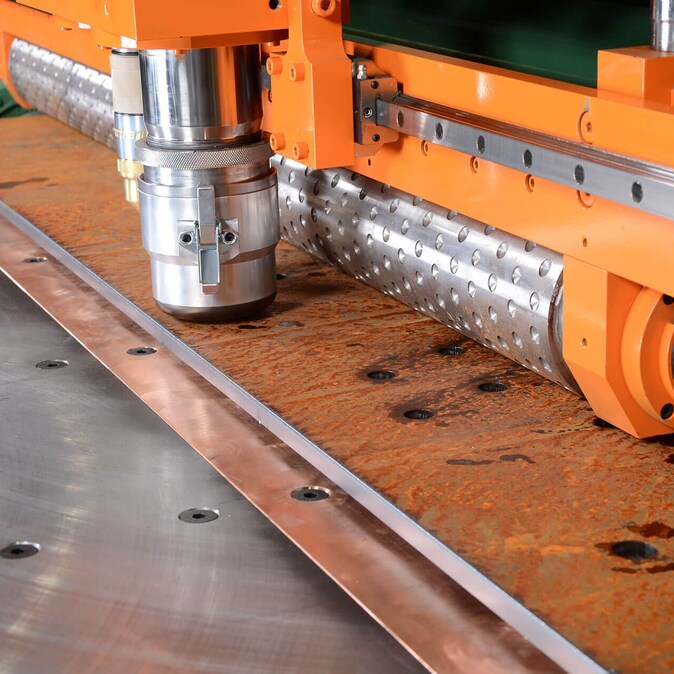

SignoScript Carbide Scribing

SignoScript Carbide Scribing

The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.

The Front End Unloading System

The Front End Unloading System

The Front End Unloader conveyor system is comprised of two roller transfer modules and a front end unloading belt. This is designed to streamline the handling of finished parts by conveying them from the operating area to a convenient unloading area.

The Side Unloading System

The Side Unloading System

The Side Unloader parts conveyor is designed to allow finished parts to drop directly onto a hardened steel conveyor, delivering them to an ergonomic unloading height at the operator station. The Side Unloader conveyor option transfers parts while the machine is in continuous operation.
