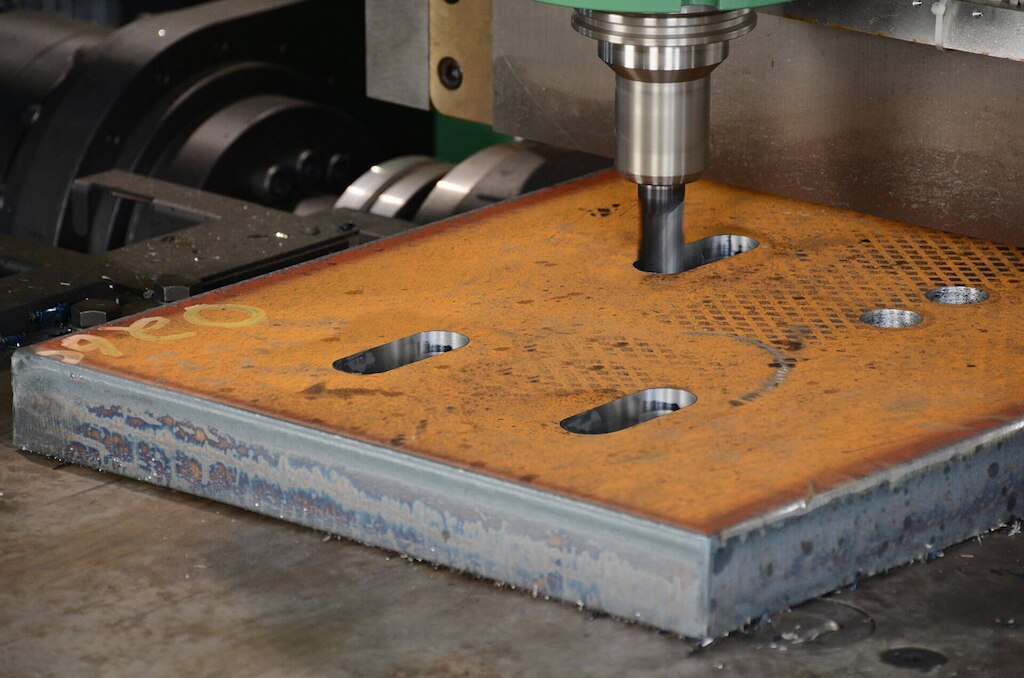

  • Milling
  • 8-Station Tool Changer
  • Siemens Spindle Motors
  • SignoScript Carbide Scribing
  • Minimum Quantity Lubrication
  • Superior Clamping System
  • Material Dimensioning
  • Side Unloading System
  • Nesting Software
  • Peddinghaus Control

Process

3"
Thick Plate

Tool Changer

8
Station

Powering Through Plate

Request Quote

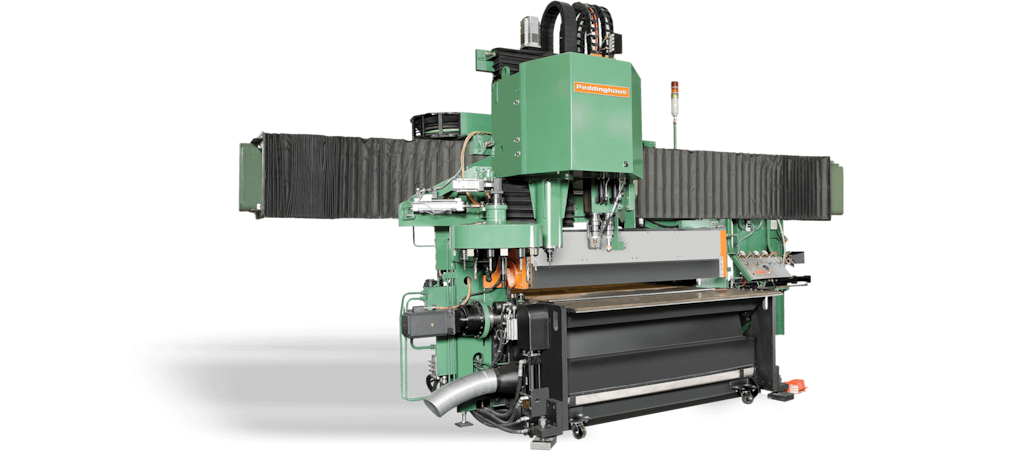

Profitable Plate Production on the HSFDB-B

The HSFDB-B CNC plate processor is the high speed solution for heavy plate production. This machine encompasses multiple capabilities, provides greater flexibility and maintains complete control of the quality in finished projects.

CNC Plate Processor

Ditch the Burn Table, Save Money

The CNC plate processing design by Peddinghaus drives material to the operating area of the machine as opposed to bringing the operating area of the machine to the material, like traditional burntable systems. The HSFDB-B provides constant material output to downstream processes.

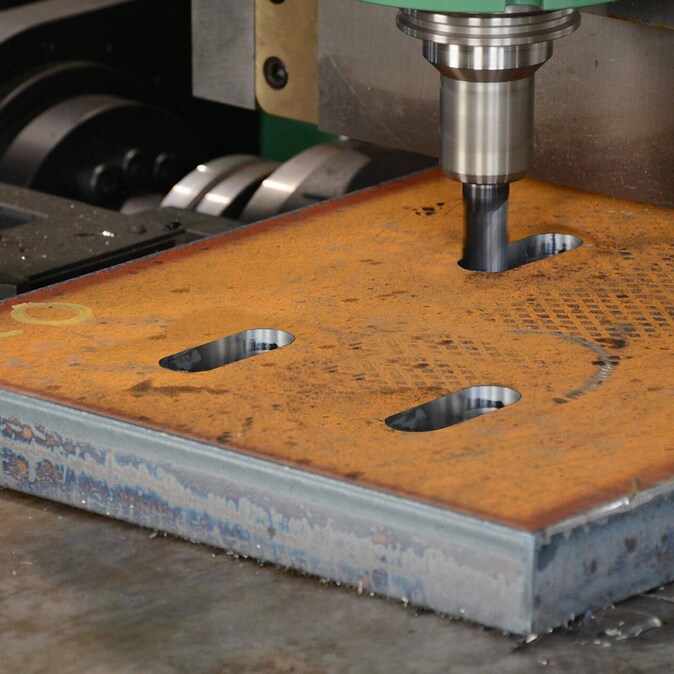

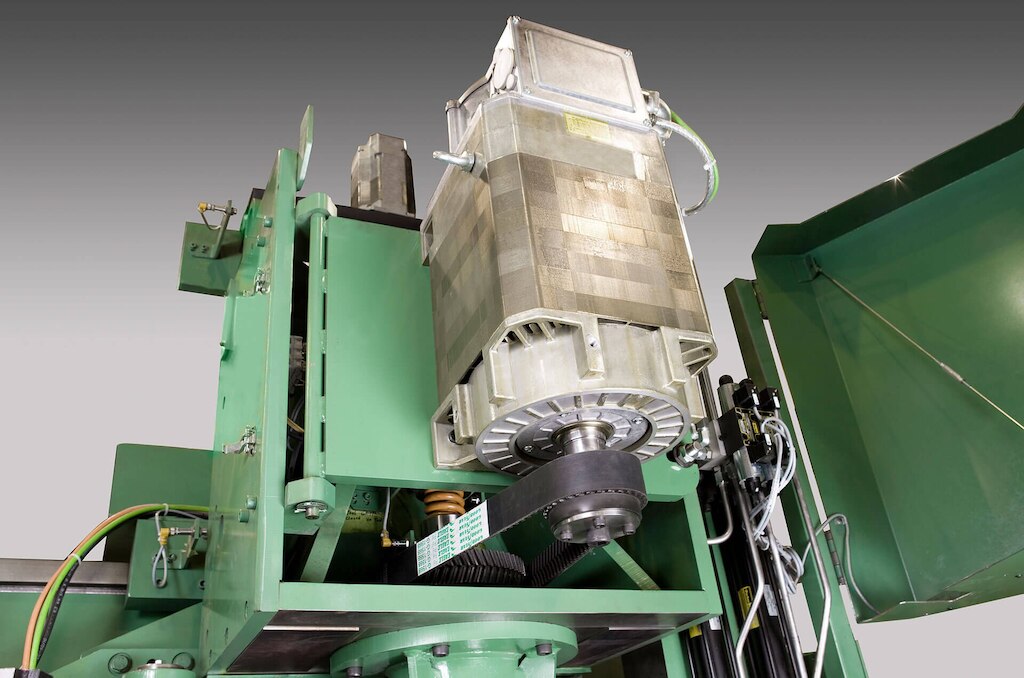

Siemens Spindle Motors

Powered by 48 HP Siemens intelligent spindle motors, the HSFDB-B is outfitted with spindle speeds of up to 2250 RPM. This heightened technology allows for unmatched processing strength and output.

Siemens Spindle Motors

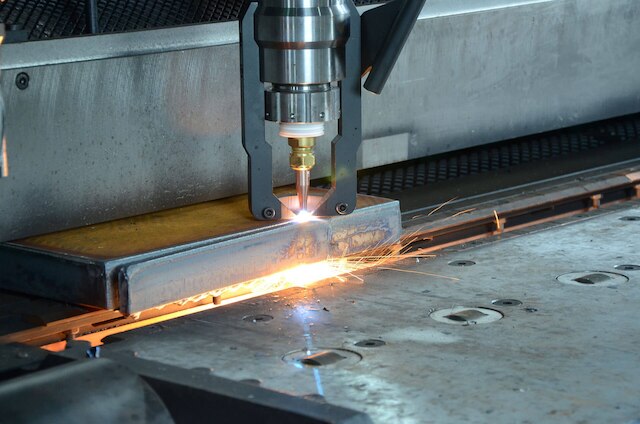

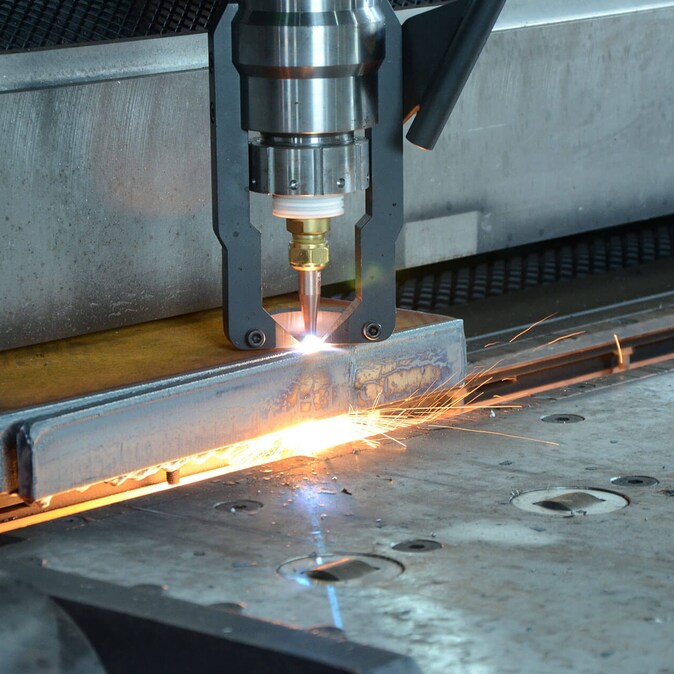

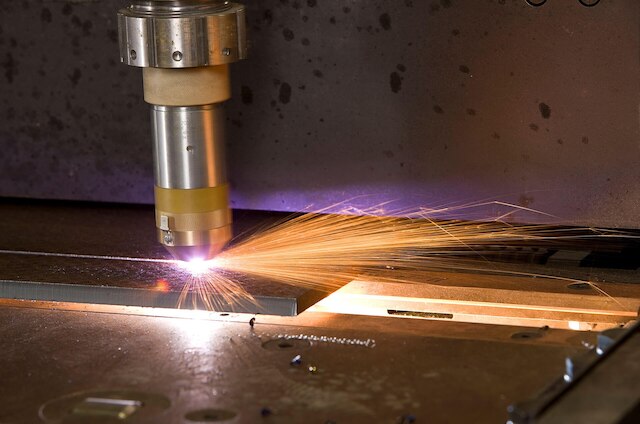

Plasma/Oxy-Fuel Cutting up to 3” Thick Plate

Whether it’s the speed of plasma, or the economy of oxy-fuel, thermal cutting is available in all forms on the HSFDB-B CNC plate processor.

Plasma/Oxy-Fuel Cutting up to 3” Thick Plate

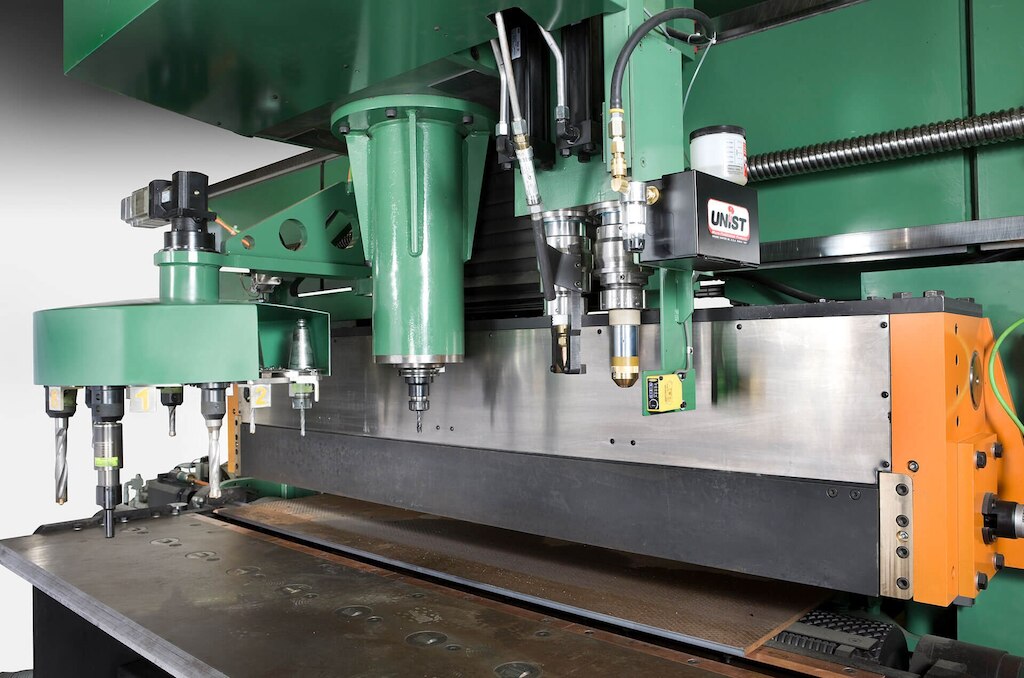

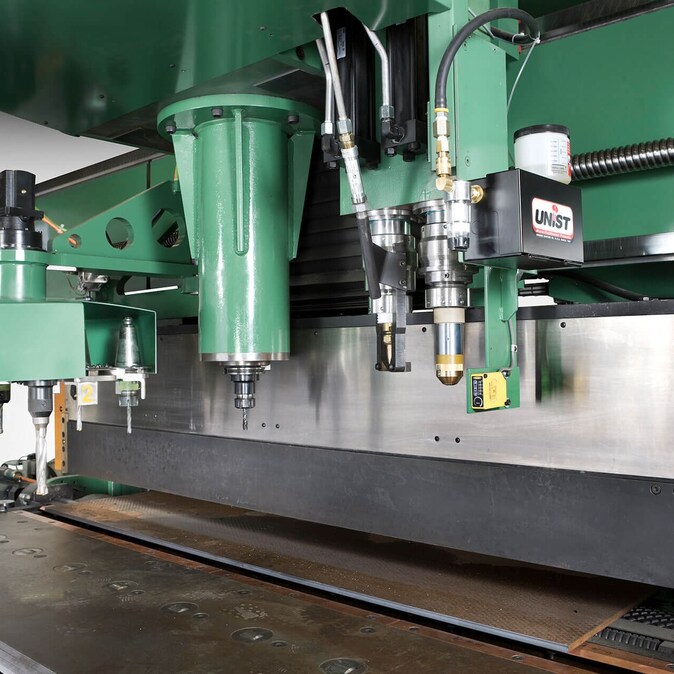

8-Station Tool Changer Enhanced by MQL

The HSFDB-B comes stocked with an 8-station tool holder assisted with the Minimum Quantity Lubrication (MQL) system to prolong tool life.

8-Station Tool Changer Enhanced by MQL

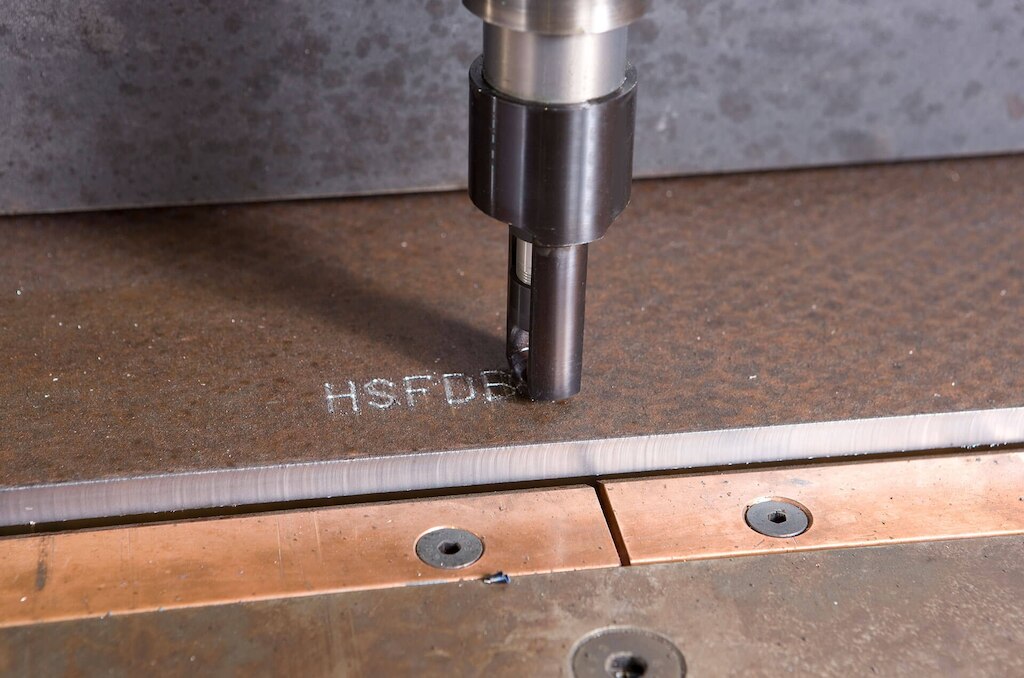

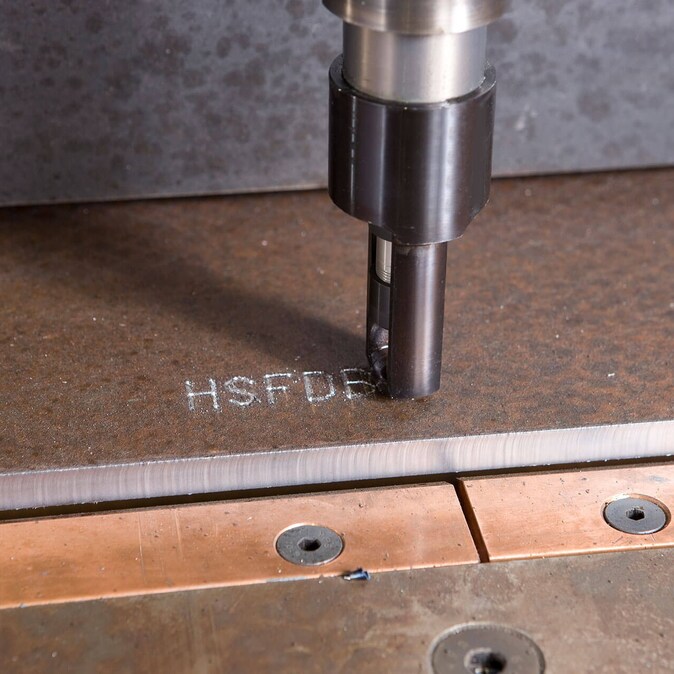

SignoScript Carbide Scribing

The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.

SignoScript Carbide Scribing

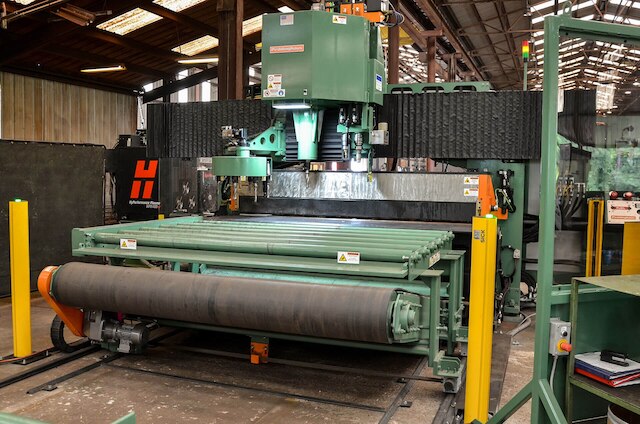

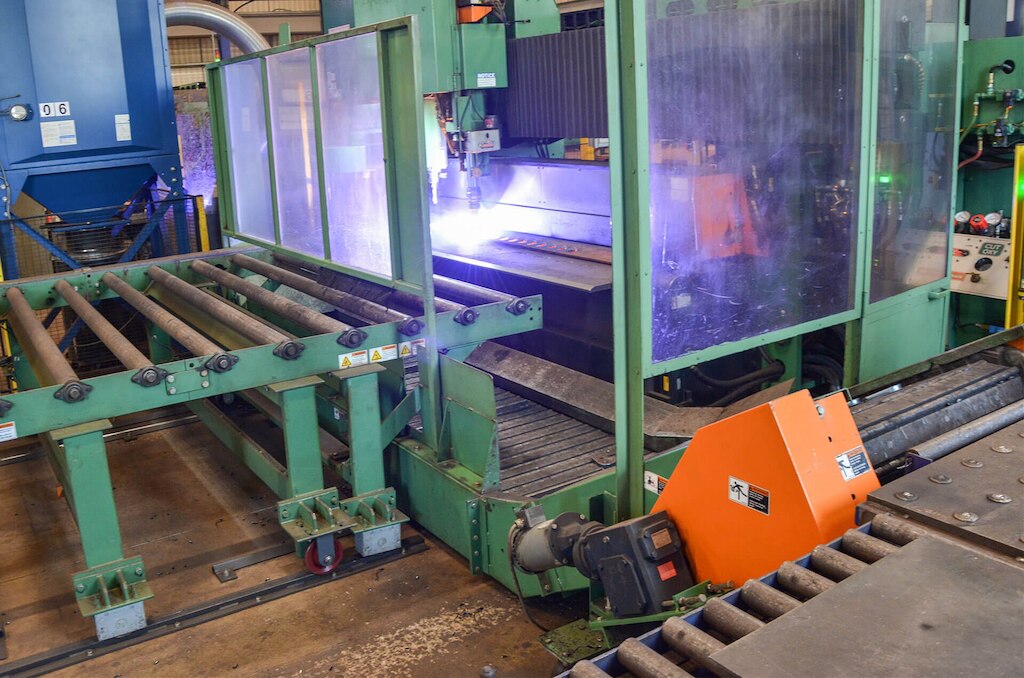

The Side Unloading System

The Side Unloader parts conveyor is designed to allow finished parts to drop directly onto a hardened steel conveyor, delivering them to an ergonomic unloading height at the operator station. The Side Unloader conveyor option transfers parts while the machine is in continuous operation.

The Side Unloading System

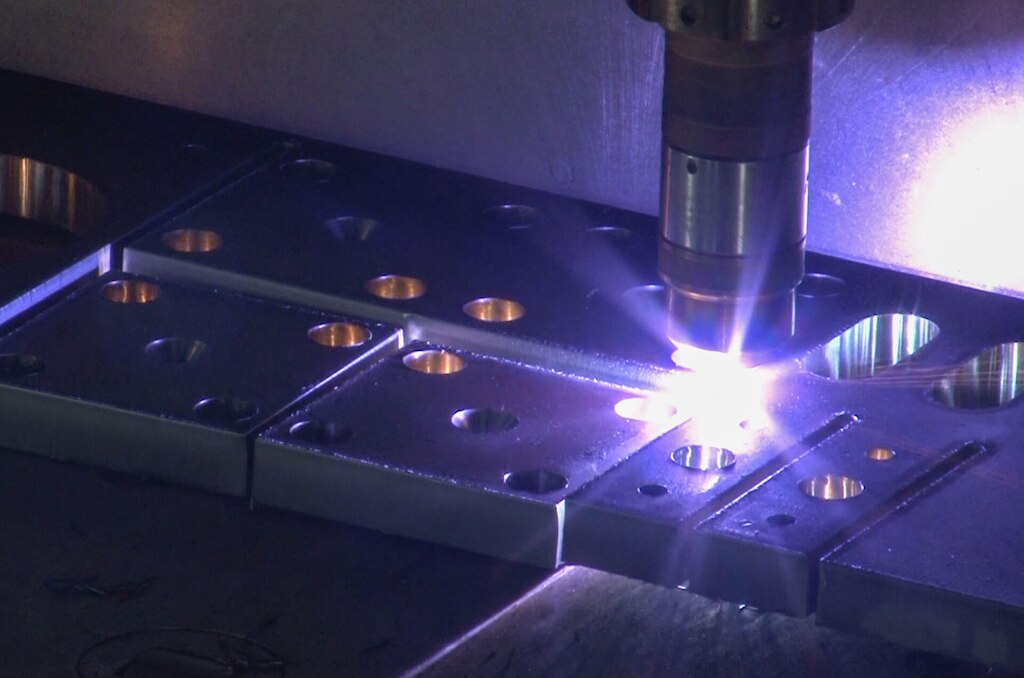

Cutting Efficiency

The HSFDB-B CNC plate processor has the capability to perform both edge start cutting and common line cutting techniques. Minimize scrap and consumable wear by getting the most out of your stock plate.

Cutting Efficiency

SDS Plate Nesting Software

Peddinghaus plate machines proudly operate with today’s modern nesting software solution, SDS. SDS software allows fabricators to automatically batch nest existing files, edit on the fly or create parts at the control console. Peddinghaus machines are able to take full advantage of common cutline, chain cutting and edge start cutting techniques.

Need Help?

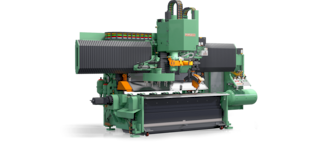

HSFDB-C

Plate Processing Machine

Maximum Plate Thickness: 4"

Plate Processing Machine

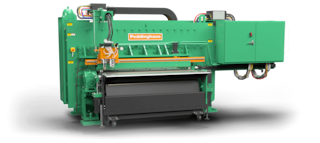

FPB-1800

CNC Plate Punching Machine

Maximum Plate Thickness: 1-1/4"

CNC Plate Punching Machine
next
previous

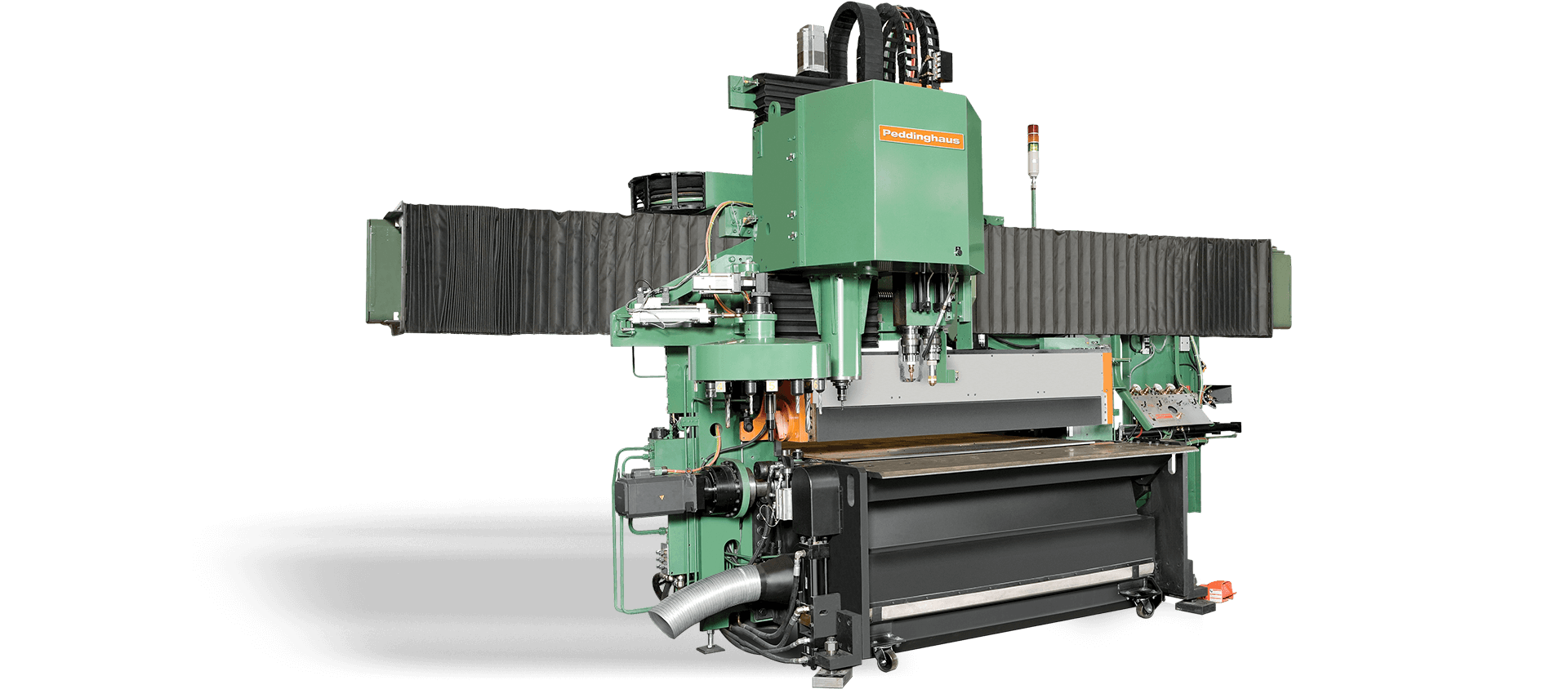

HSFDB-B

CNC Plate Processor

Maximum Plate Thickness: 3"

One Ton of Output for Every Hour of Operation

Profitable Plate Production on the HSFDB-B

The HSFDB-B CNC plate processor is the high speed solution for heavy plate production. This machine encompasses multiple capabilities, provides greater flexibility and maintains complete control of the quality in finished projects.

Ditch the Burn Table, Save Money

The CNC plate processing design by Peddinghaus drives material to the operating area of the machine as opposed to bringing the operating area of the machine to the material, like traditional burntable systems. The HSFDB-B provides constant material output to downstream processes.

Siemens Spindle Motors

Siemens Spindle Motors

Powered by 48 HP Siemens intelligent spindle motors, the HSFDB-B is outfitted with spindle speeds of up to 2250 RPM. This heightened technology allows for unmatched processing strength and output.

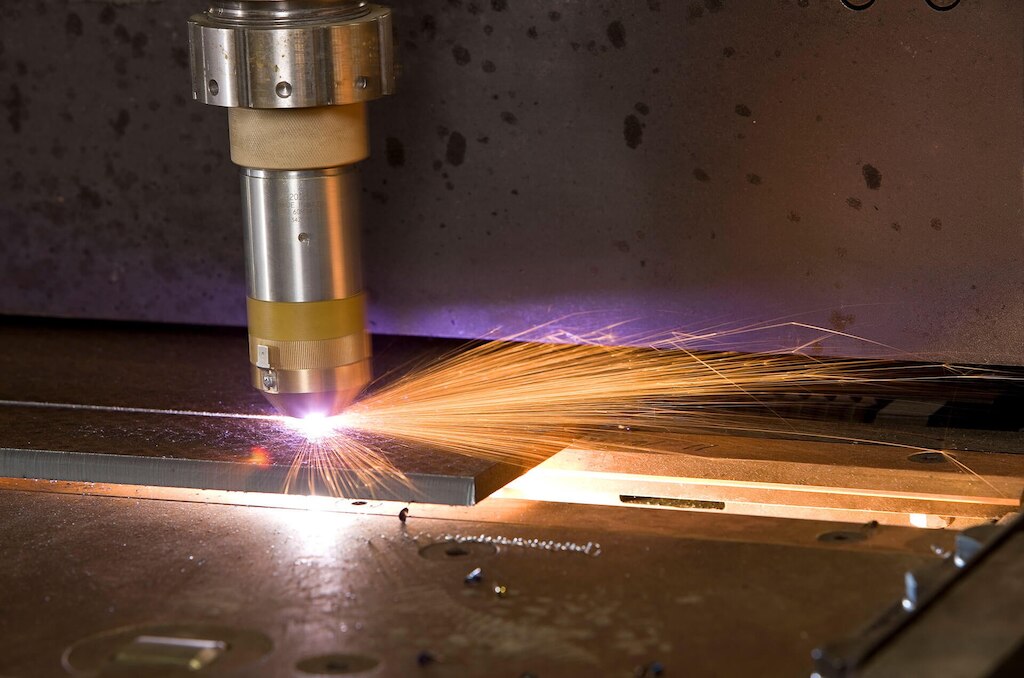

Plasma/Oxy-Fuel Cutting up to 3” Thick Plate
