Overview

  • Thermal Cutting/Coping Line
  • Robotic Plasma Cutting
  • Triangulation Scanning System
  • Integrated Layout Marking
  • Near Flange Cutting
  • Grind Reduction Technology
  • Profile Length Detection
  • Bevel Cutting
  • Stäubli Robot Arm
  • Rigid Machine Housing
  • Modular Control
  • Raptor Software

Robotics

6
Axis Capability

Bevel

45°
Cutting Angle

Intelligent Thermal Cutting

Request Quote

High Capacity Processing for Steel

The very first member of the Peddinghaus robotic family is designed specifically to revolutionize your beam cutting production. This advanced robotic thermal cutting machine takes innovation further with a scanning system that measures deviations in material and then adapts the robot's cutting path to ensure perfect fitting - no probing necessary.

Robotic Thermal Cutting Machine

Maximize Profile Accuracy

Specialized torch movements throughout production on the PeddiBot-1200 practically eliminate the need for grinding. That equals labor savings and more profit in your pocket.

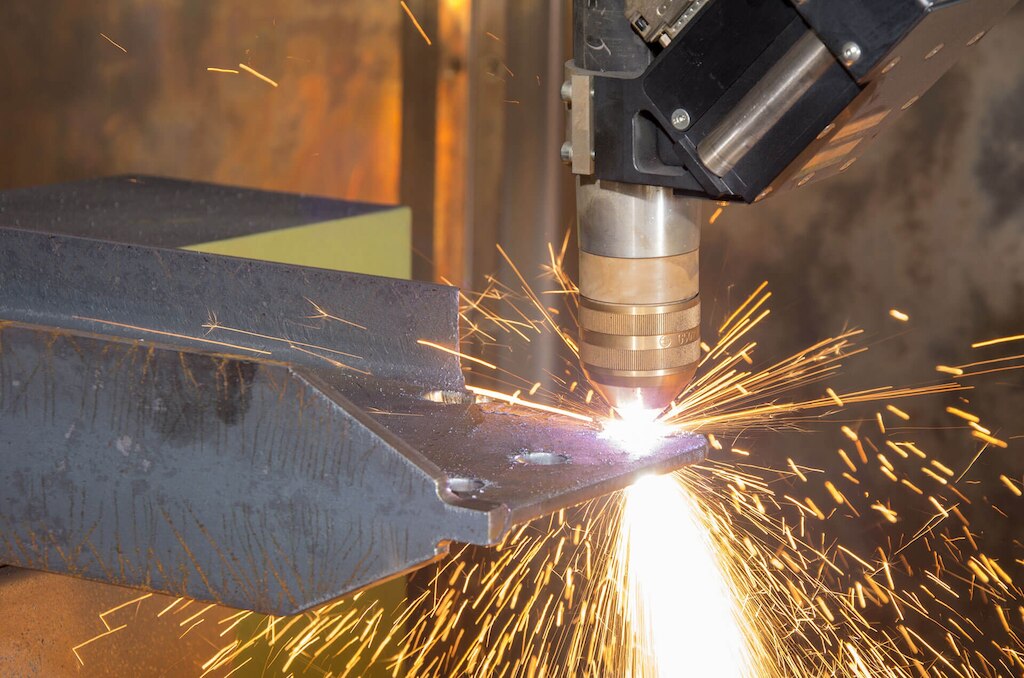

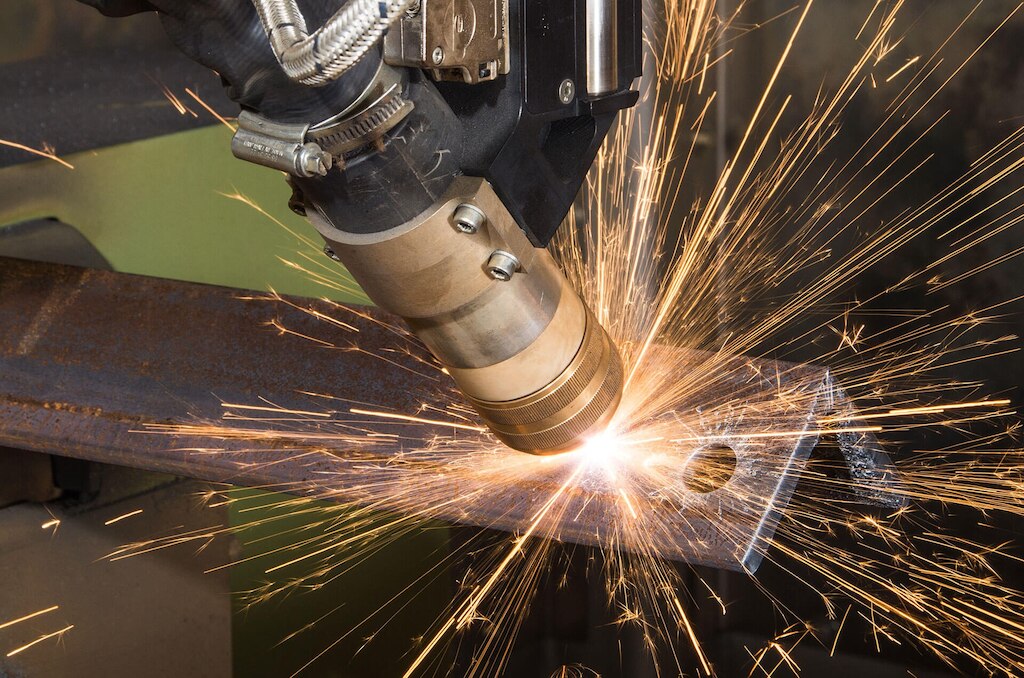

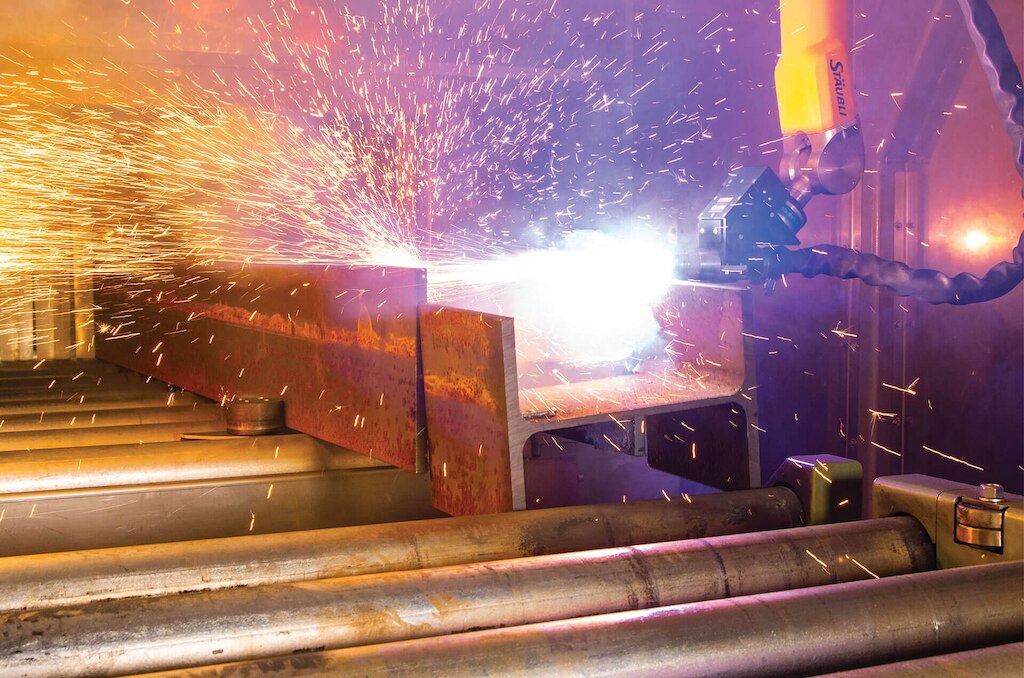

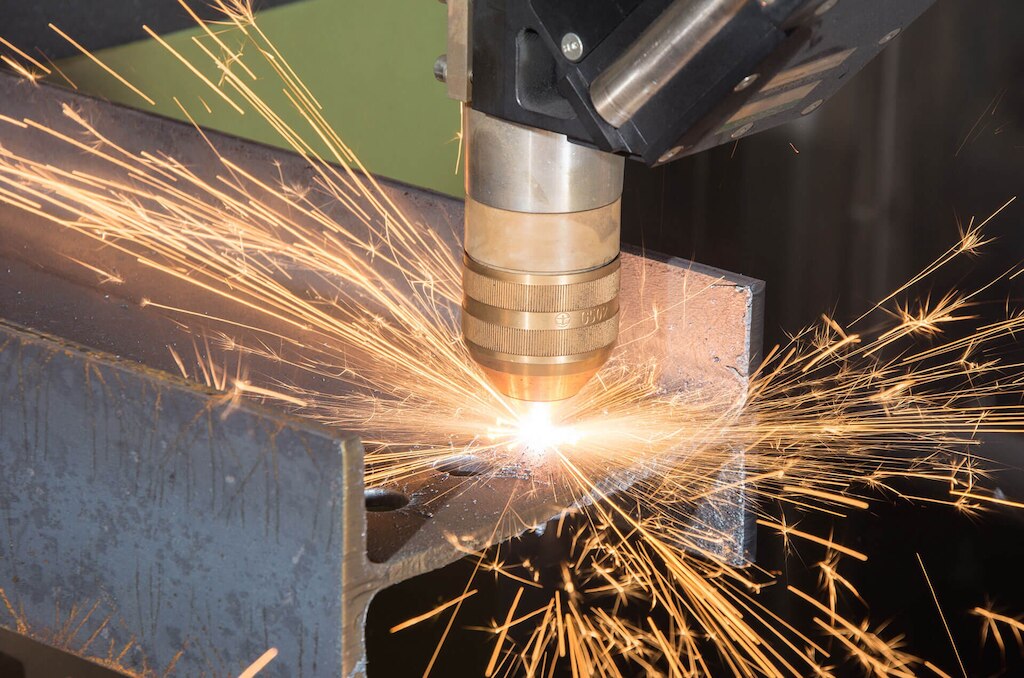

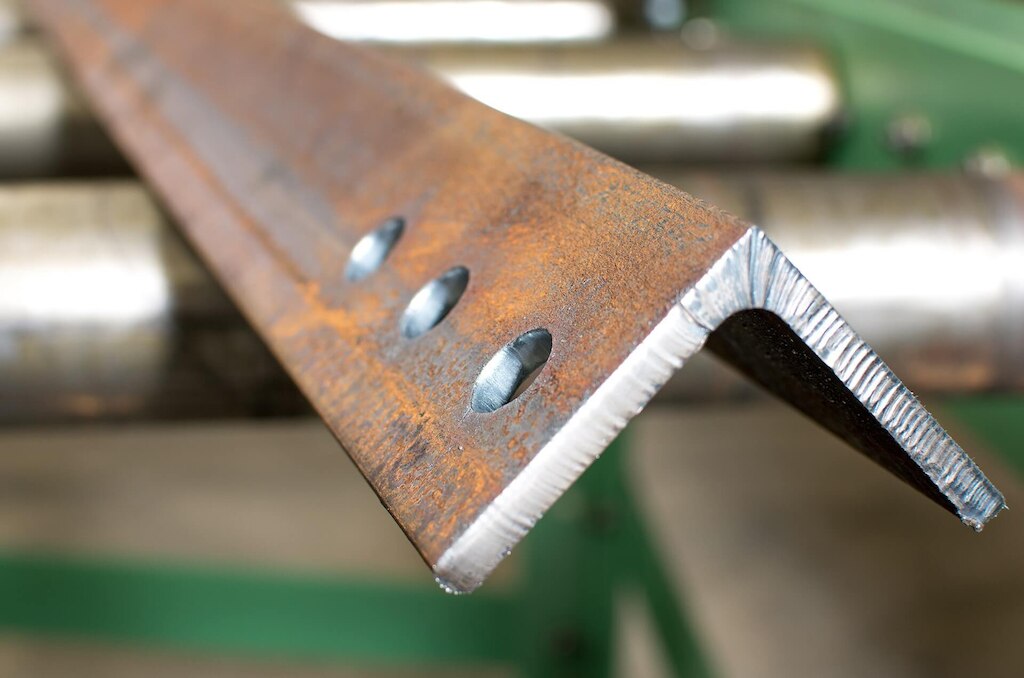

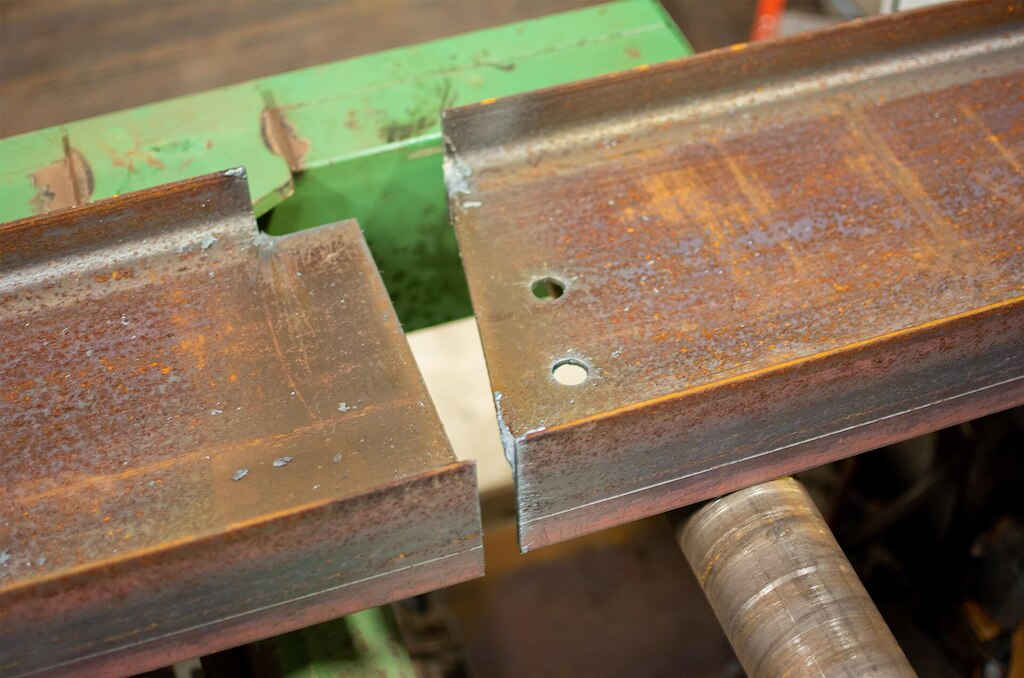

Robotic Plasma Cutting

The PeddiBot-1200 comes equipped with a Kjellberg HiFocus 440 amp plasma cutting system. The Kjellberg is designed to combine faster cutting speeds, rapid process cycling, quick changeovers and high reliability to maximize productivity. The system is capable of cutting up to 2" (50 mm) thick steel and reaching speeds up to 70" (1778 mm) per minute.

Robotic Plasma Cutting

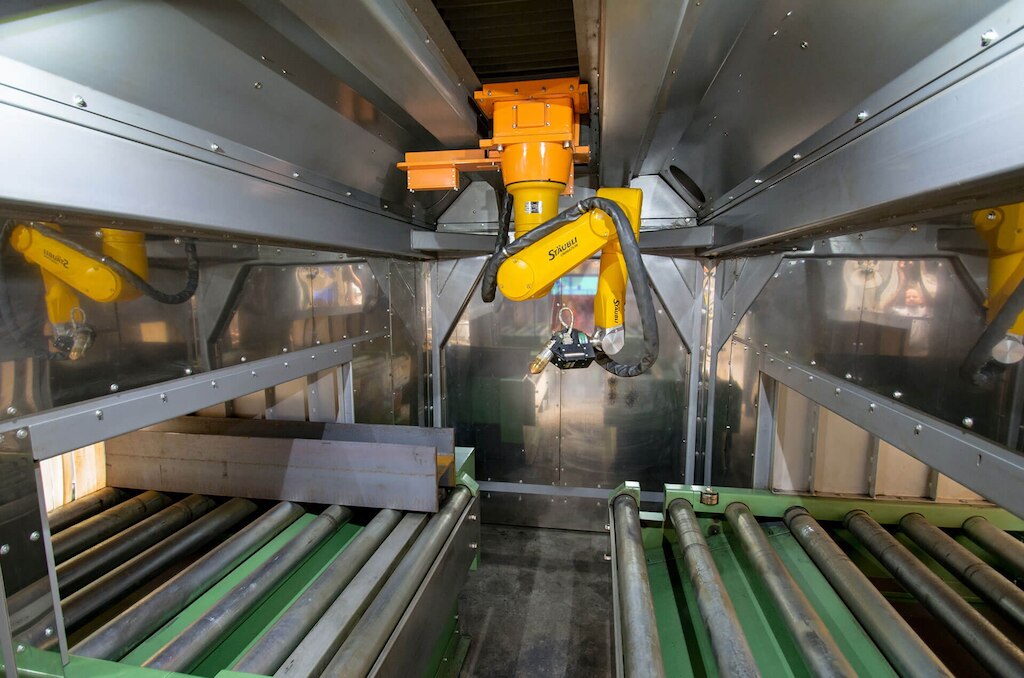

Staubli Robot for Cutting Intelligence

The plasma torch is positioned and controlled by a 6-axis industrial Stäubli robot arm. This rigid structure with metal casting allows for dynamic performance and stability during cutting and marking processes 360° around material. The highest level of accuracy is achieved throughout production due to the robot arm's patented reduction gear system. This system provides unrivalled precision, flexibility and speed.

Staubli Robot for Cutting Intelligence

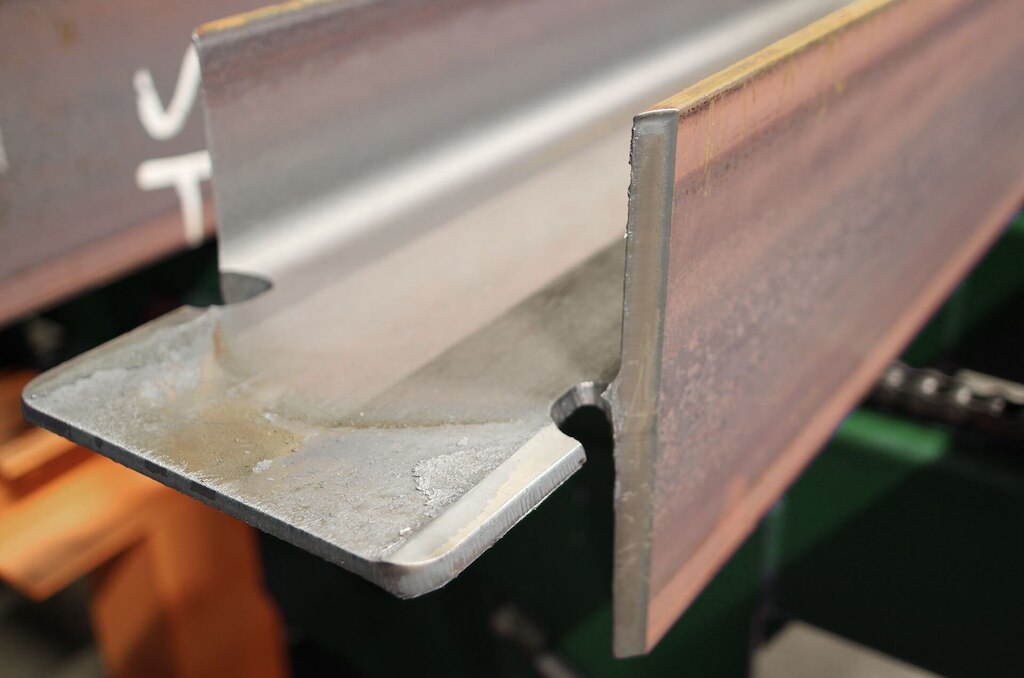

Near Flange Cutting

The most commonly used rathole within the structural steel industry cannot be completely cut by thermal cutting due to the plasma torch size. This requires manual grinding to cut away material without damaging the underlying flange. The PeddiBot-1200 applies a unique cutting technique that compensates the torch height position and tilts the torch backwards during the rathole cutting.

Near Flange Cutting

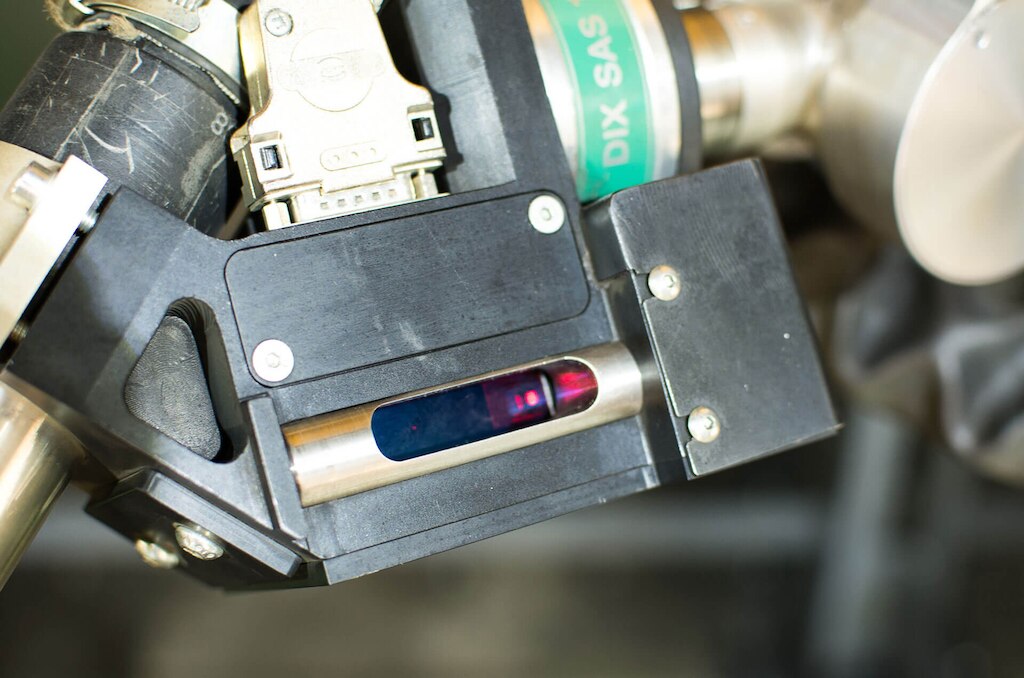

3D Triangulation Scanning System

The PeddiBot-1200 is equipped with a state-of-the-art measurement system to detect positional displacement and distortions of material. This intelligent system consists of a triangulation laser scanner for measuring sections. The material scanning is executed inside the cutting area and is performed in one, continuous cycle.

3D Triangulation Scanning System

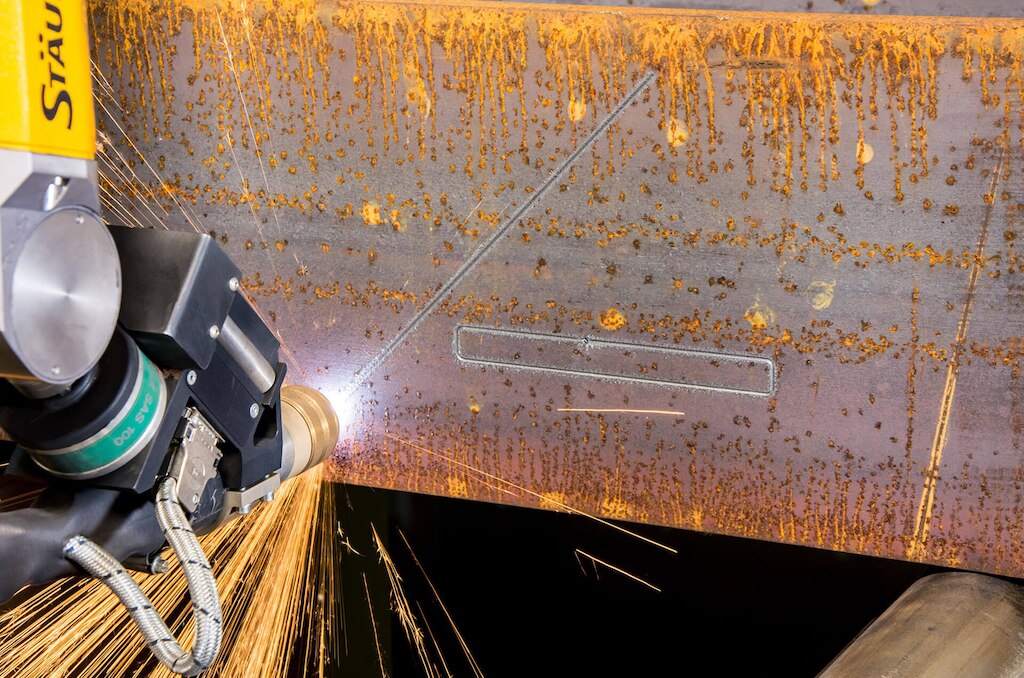

Integrated Layout Marking

Multi-axis plasma layout marking is a long-lasting and economical solution. Faster than carbide scribing and easier to maintain than a laser, the PeddiBot-1200 utilizes modern layout marking plasma technology. Completely visible through rust and scale, plasma layout marking technology reduces error from manual layout and marking weld data onto a profile.

Integrated Layout Marking

Optional Plate Processing

The PeddiBot-1200 robotic thermal cutting machine sets a new standard by offering an entire fabrication center in a single machine. Plate cutting is achieved with an optional cutting bed attachment that can process plate up to 1-⅝” (40 mm) thick and 48” (1200 mm) wide. This accessory comes equipped with four additional guiding wheels and utilizes the PeddiBot-1200’s laser measurement system for invariable cutting quality.

Optional Plate Processing

Raptor 3D CAD/CAM Software

Developed by Peddinghaus, Raptor 3D CAD/CAM Software takes CNC innovation further by enabling users to program faster and more accurately. Inspect, modify and export part information directly within the 3D platform. This coupled with Peddinghaus CNC technology means maximum capacity for fabricators.

Explore Software
Need Help?

ABCM-1250

CNC Beam Coping Machine

Type of Thermal Cutting: Oxy-Fuel

CNC Beam Coping Machine

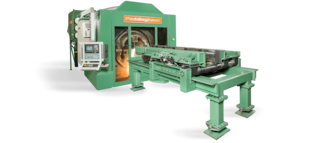

Ring of Fire
