Accurate Angle Processing

Request Quote

Process Higher Volumes of Angle

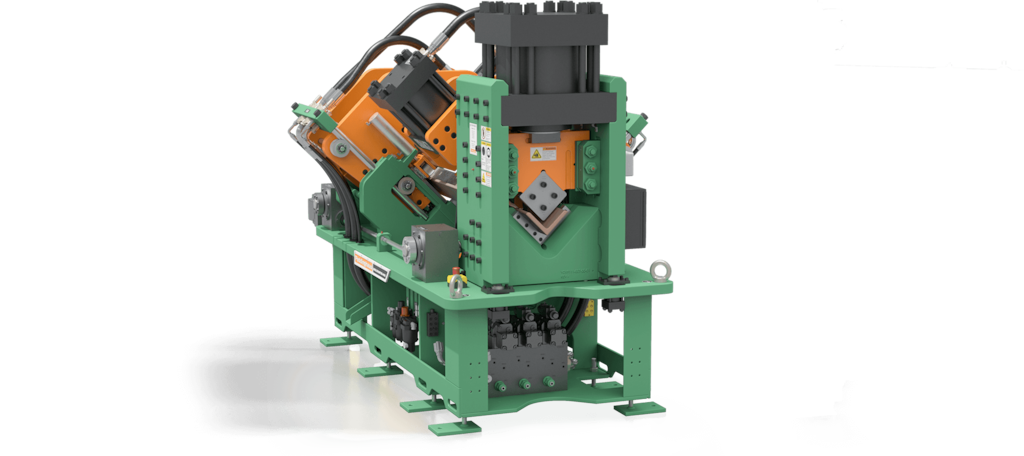

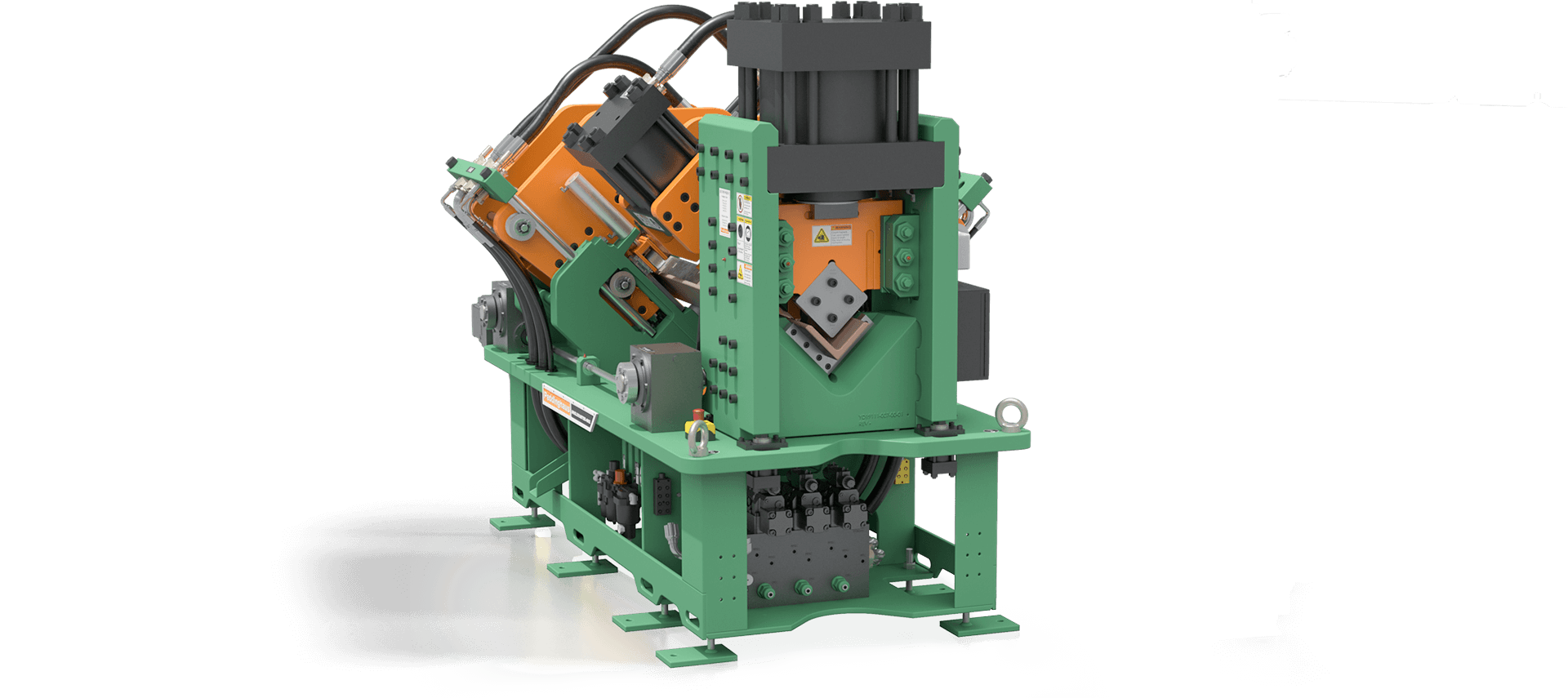

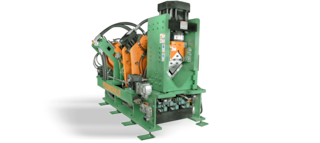

Detail components make up the smallest tonnage of any fabricators' workload, but consistently demand the highest amount of labor. Serving as the industry's benchmark for productivity and accuracy, the Anglemaster-663 caters to today's fabricators' need to automate punching, nibbling, shearing and marking for angle and flat bar.

Angle Line

Accurate and Versatile Angle Processing

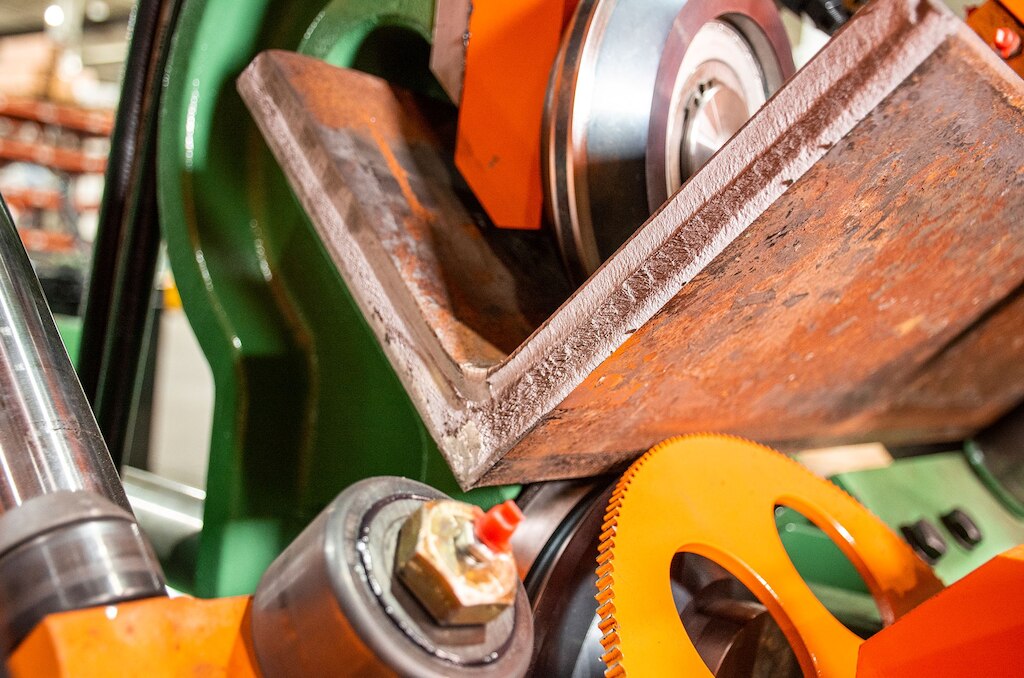

The Roller Feed drive and measurement system from Peddinghaus has been redesigned to improve accuracy even greater than before. By positioning two encoders on the machine, steel can pass through piece after piece with no stop in production. This innovative patented Roller Feed is designed to flex with the material in order to ensure a constant roll and an accurate measurement given deviations in material, maximizing contact with long parts.

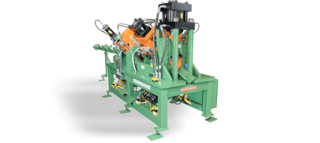

6 Punches for Tooling Capacity

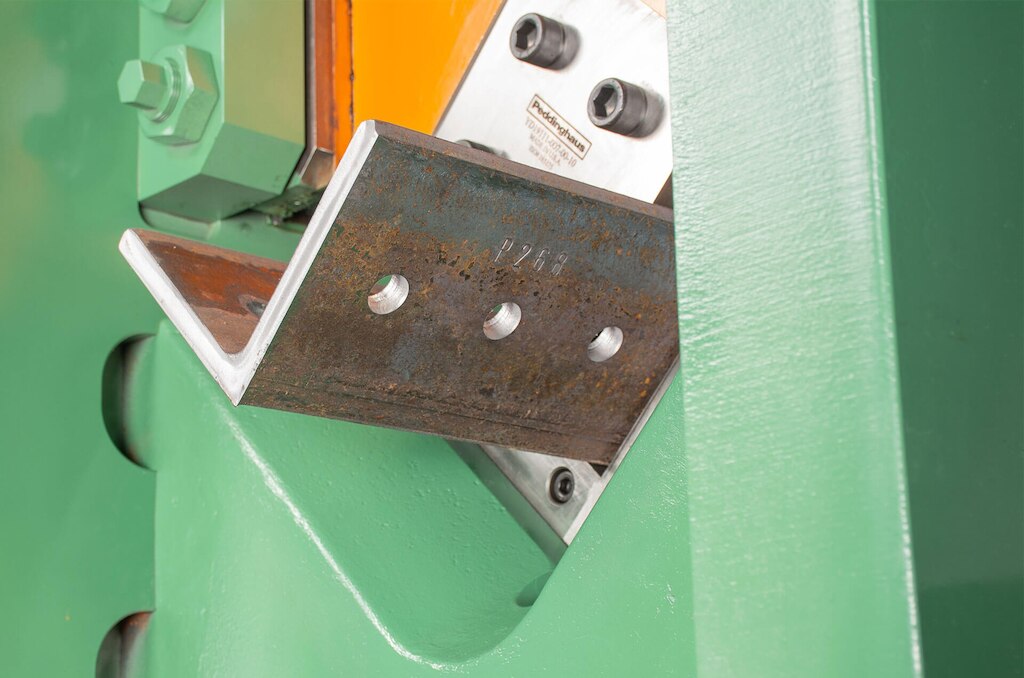

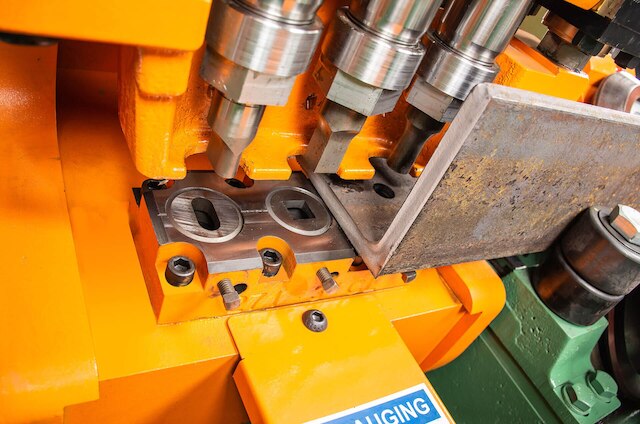

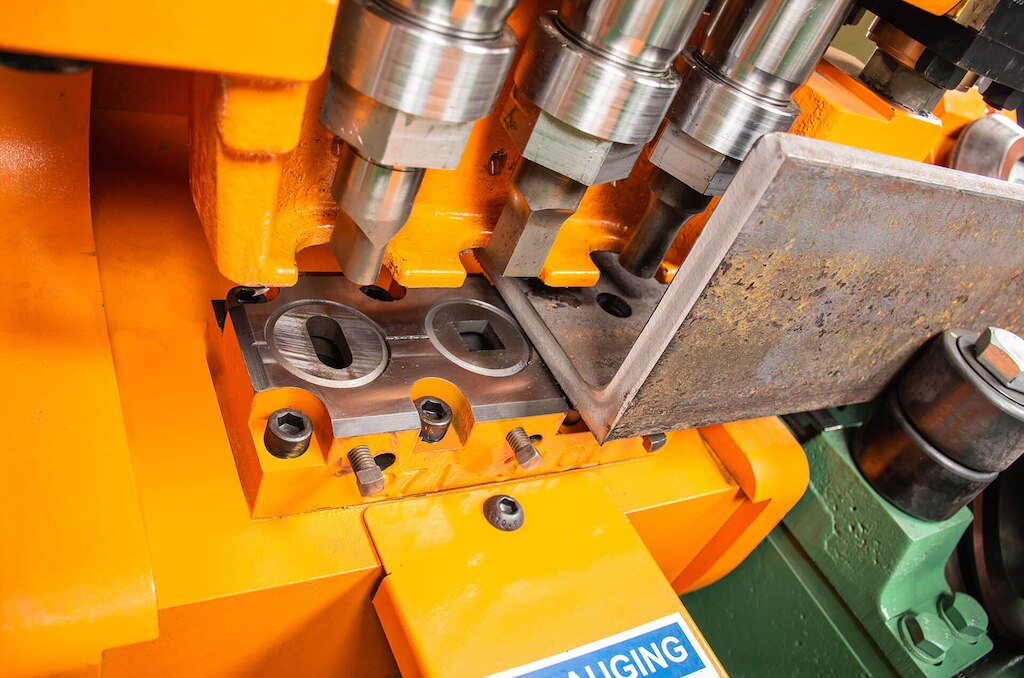

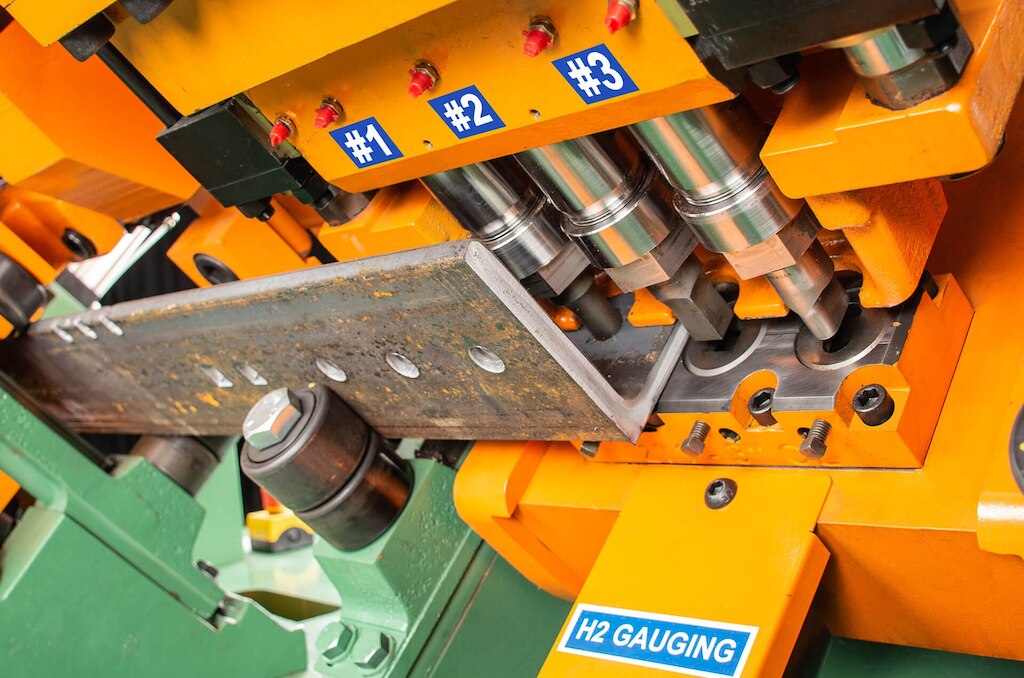

Three punch stations per hydraulic press allow the machine to apply up to three different hole shapes/sizes per leg. A new and improved punch tool design allows for quicker and easier tool changes. The Anglemaster-663 can accommodate shaped holes such as squares, rectangles, obrounds and slots, including a feature that allows nibbling of material for cutting large notches out of angle or flat bar.

6 Punches for Tooling Capacity

Powerful Shearing

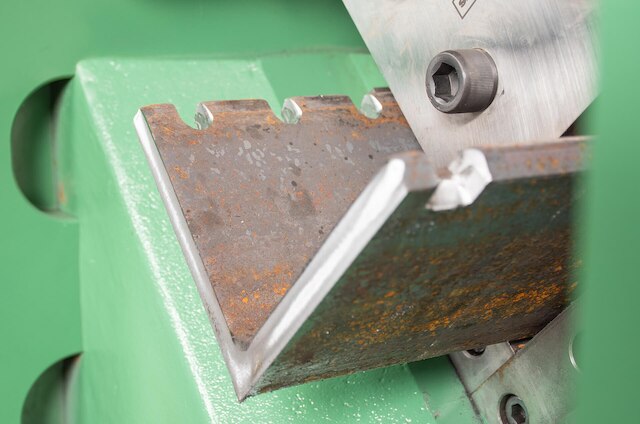

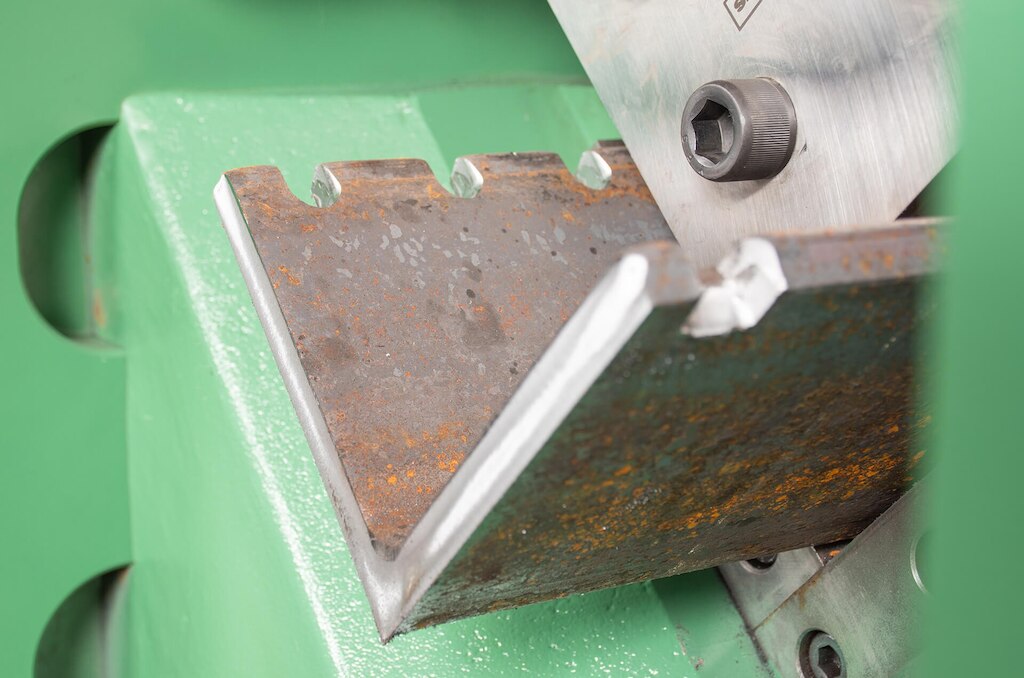

The Anglemaster-663 uses a single cut 320 ton shear press for the cutting to length angle and flat stock. A single cut shear mechanism eliminates the slug created by double cut shear mechanisms.

Powerful Shearing

SignoScript Carbide Scribing

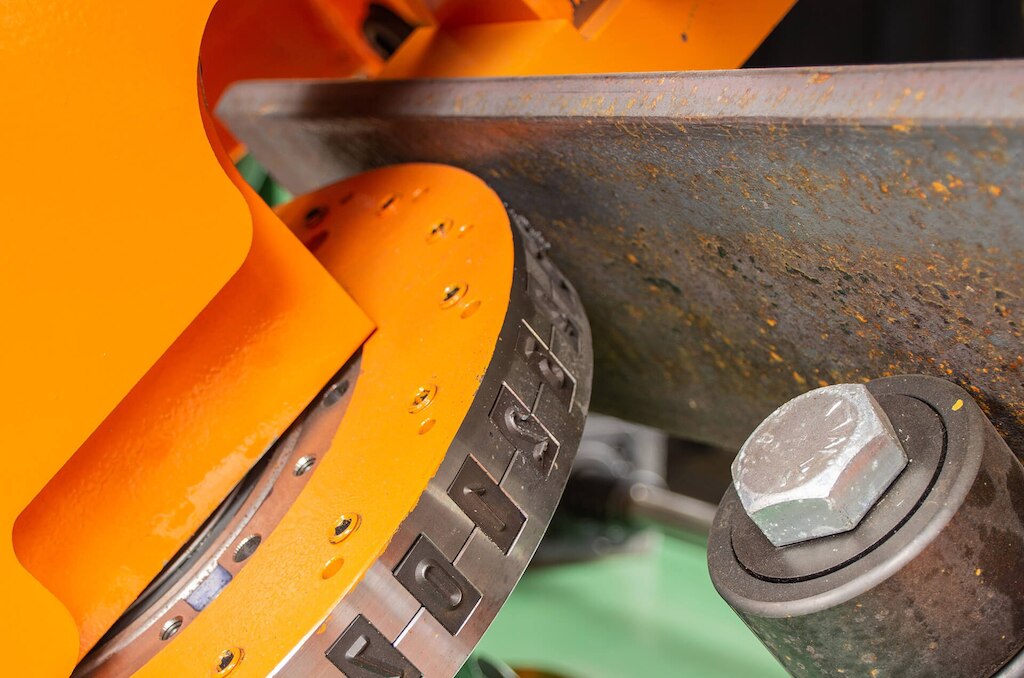

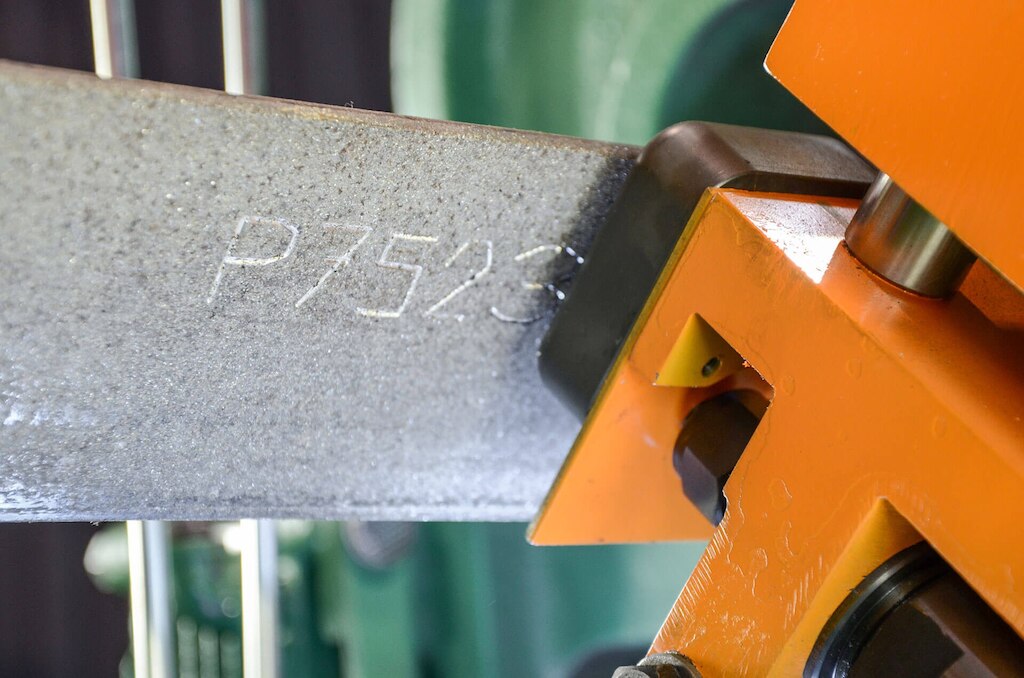

The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.

SignoScript Carbide Scribing

SignoMat Part Stamping

The SignoMat part stamping unit stamps at an unmatched 1 character per second with a depth of 1/32" (.8 mm) and a total height of 1/2" (12 mm). The unit holds up to 36 characters for complete part marking ability.

SignoMat Part Stamping

Nonstop Throughput with Patented Roller Feed Technology

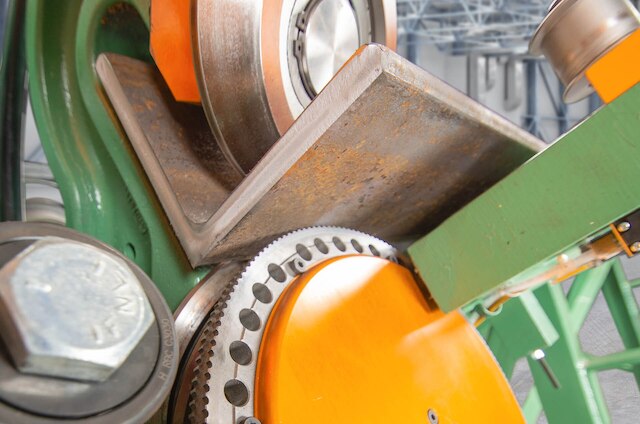

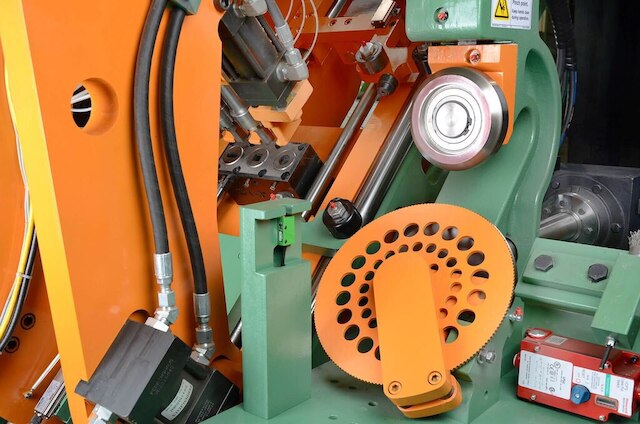

Equipped with the Peddinghaus Roller Feed measurement system, the Anglemaster-663 maximizes contact with the material at all times. By positioning two encoders on the machine, steel can pass through piece after piece with no stop in production. This newly designed patented Roller Feed flexes with the material in order to ensure a constant roll and an accurate measurement given deviations in material.

Nonstop Throughput with Patented Roller Feed Technology

Lubrication System Prolongs Tool Life

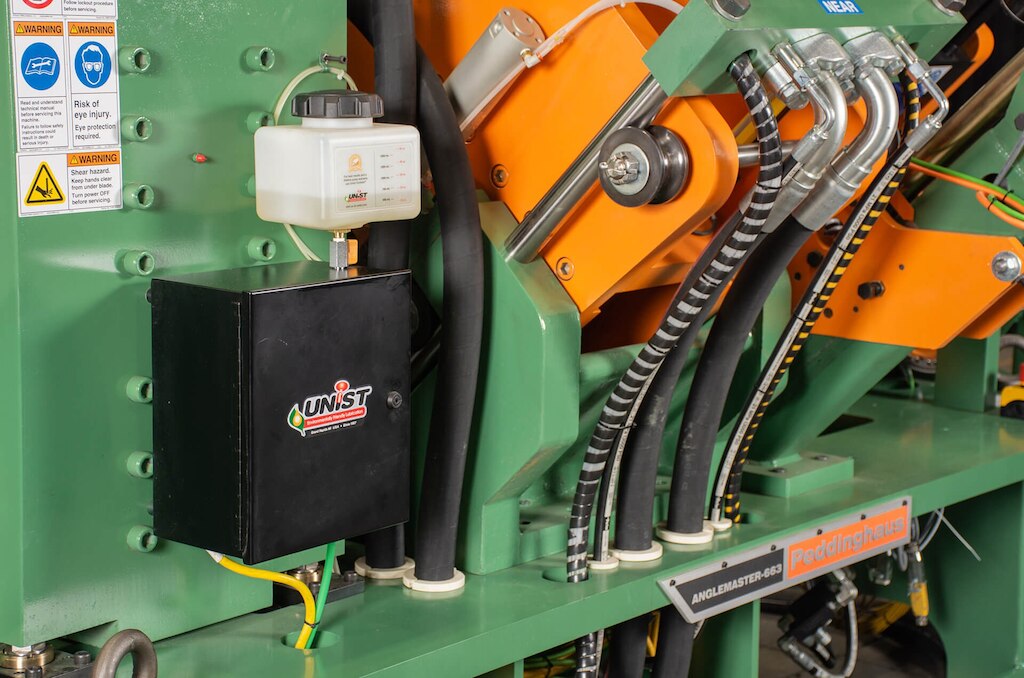

The lubrication system on the Anglemaster-663 extends to the shear, now allowing for longer shear life. Overall angle production and tool life is enhanced with the Minimum Quantity Lubrication (MQL) system.

Lubrication System Prolongs Tool Life

Infeed and Outfeed Material Handling

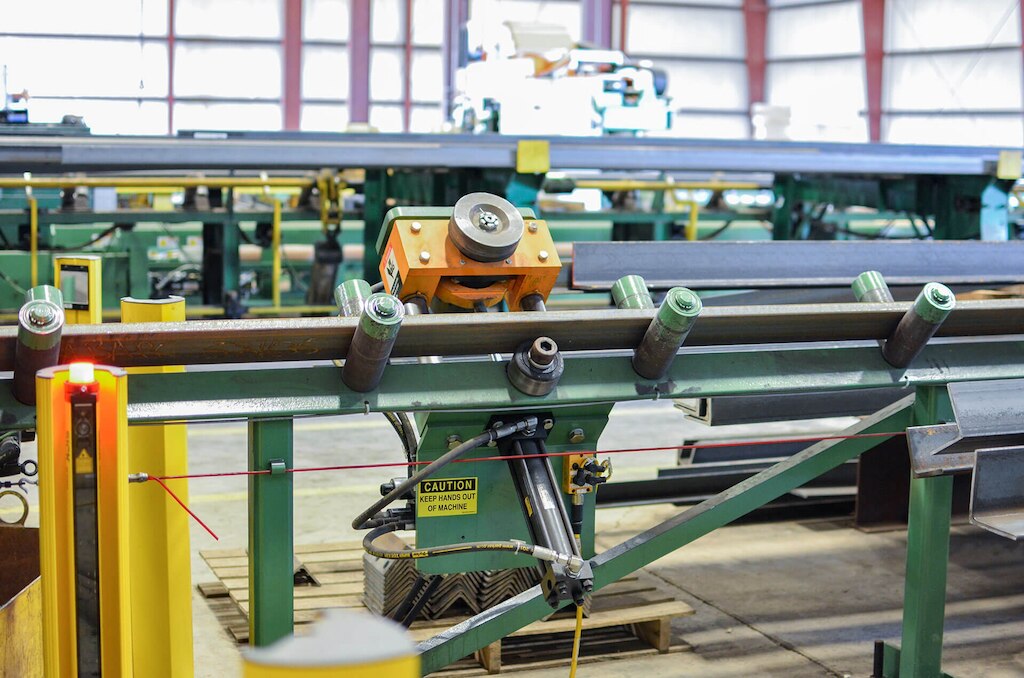

The infeed and outfeed material handling system, designed for continuous production, keeps the operator safe at all times. As drag chain conveyors move material to the infeed conveyors, power material advance initiates steel into the machine. Once sheared, drive rollers advance the finished parts to the unloading zone.

Infeed and Outfeed Material Handling

Raptor 3D CAD/CAM Software

Developed by Peddinghaus, Raptor 3D CAD/CAM Software takes CNC innovation further by enabling users to program faster and more accurately. Inspect, modify and export part information directly within the 3D platform. This coupled with Peddinghaus CNC technology means maximum capacity for fabricators.

Explore Software
