Watching:ABCM-1250


Overview

  • Thermal Cutting/Coping Line
  • Oxy-Fuel Cutting
  • Triple Torch Design
  • Bevel Cutting
  • Roller Feed Measurement
  • Near Flange Cutting
  • Robust Clamping System
  • Siemens Advanced Control
  • Raptor Software

Triple

3
Torch Design

Process

50"
Steel Profiles

Intelligent Thermal Cutting

Request Quote

An Industry Classic

The triple torch design of the ABCM-1250 oxy-fuel coper allows for the cutting of two flanges simultaneously. While flange thins are performed on both top and bottom flanges at the same time, weld prep is generated concurrently, keeping operating costs at a minimum. Without tedious torch probing processes, the ABCM allows for more near flange cutting.

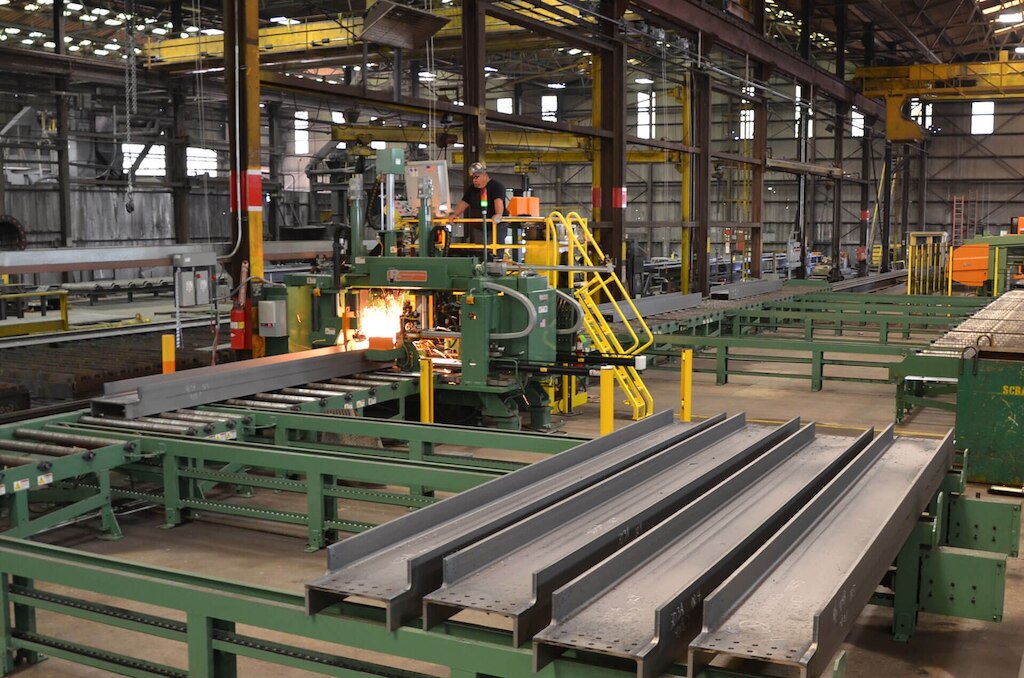

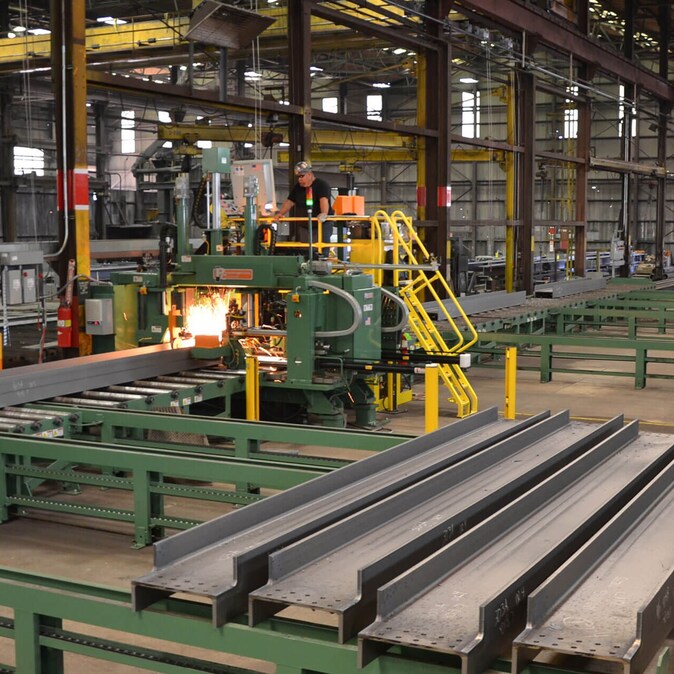

CNC Beam Coping Machine

How are You Coping?

In the competitive world of steel fabrication, reduction of man hours is the ultimate challenge. Fabricators across the globe utilize this time-tested technology to increase their shop capacity and efficiency.

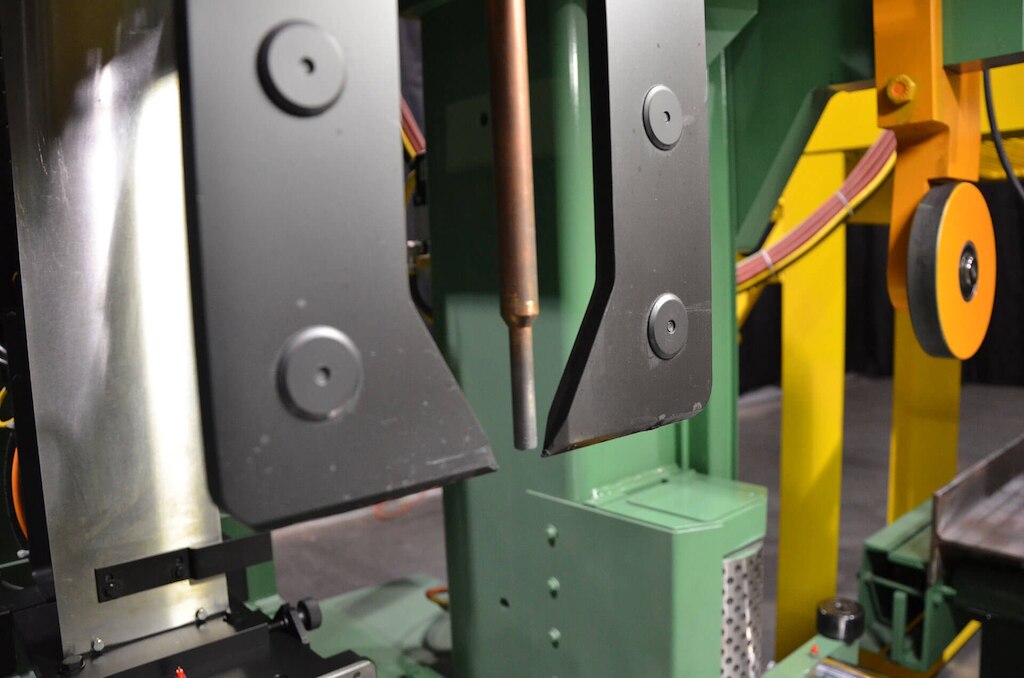

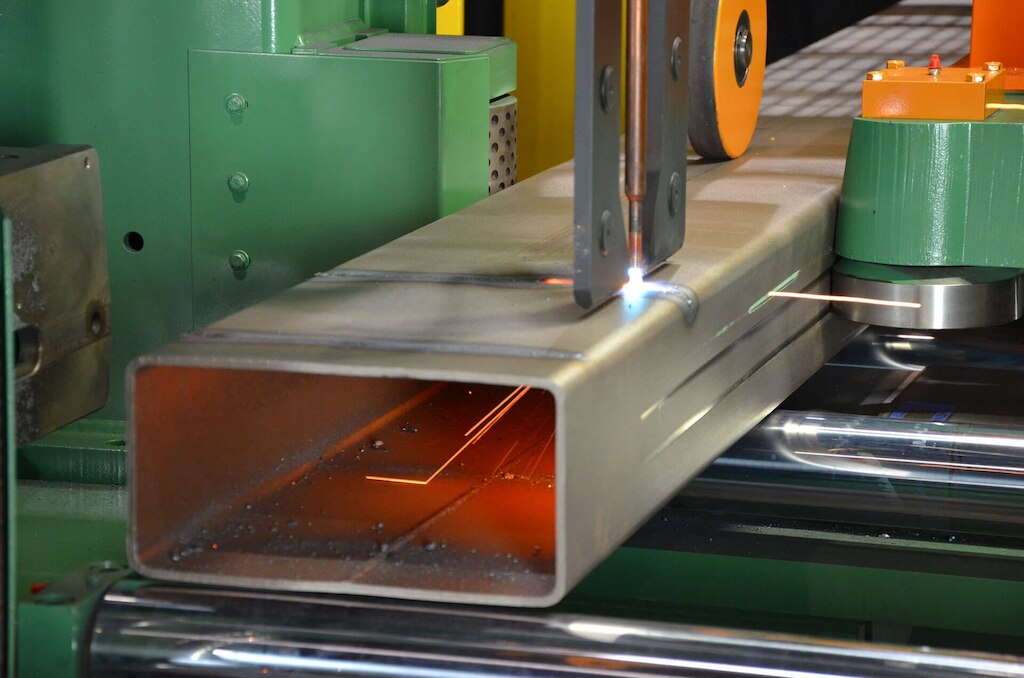

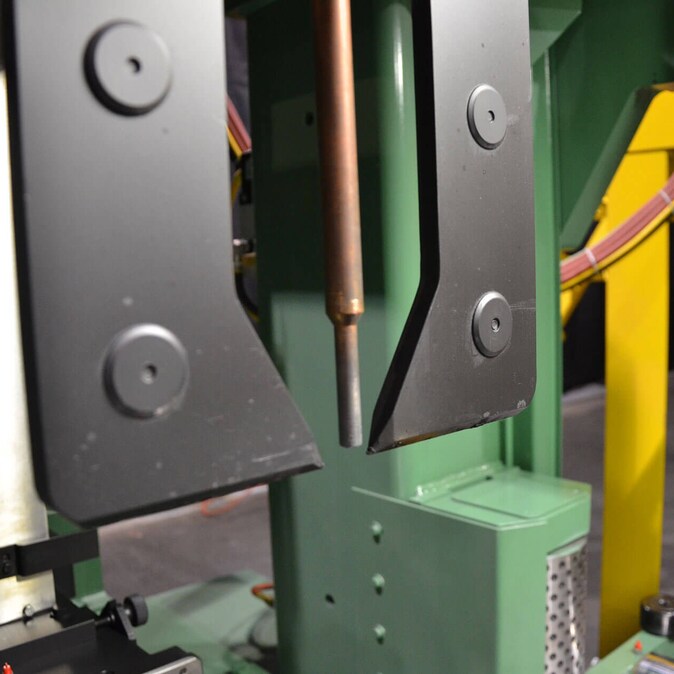

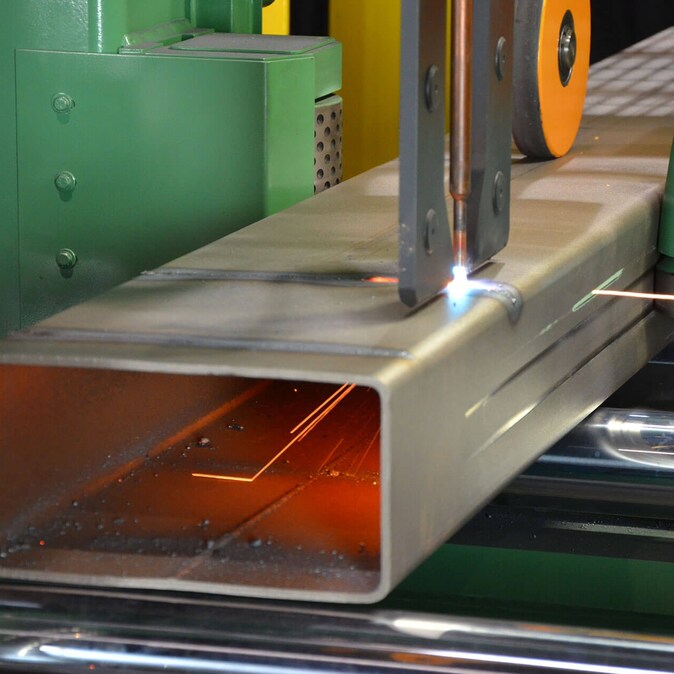

Triple the Processing Speed with Triple Torch Oxy-Fuel

Three torches for simultaneous oxy-fuel cutting create an unmatched combination of speed and efficiency. Capable of miter cutting and beveled weld preparation on the top and bottom flanges, the ABCM-1250 also boasts automatic torch ignition.

Triple the Processing Speed with Triple Torch Oxy-Fuel

Bevel Cutting on Multiple Axes

Multiple axis positioning permits top and bottom flanges to be cut simultaneously. Flange beveling for weld prep is easily achieved with pivoting torches to the programmed miter position.

Bevel Cutting on Multiple Axes

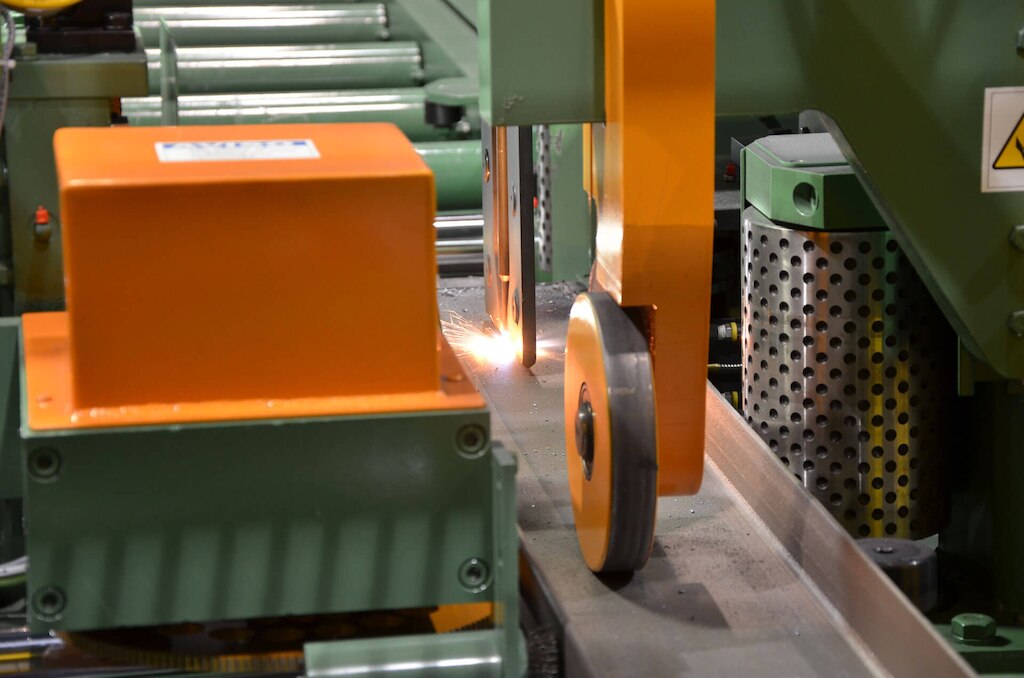

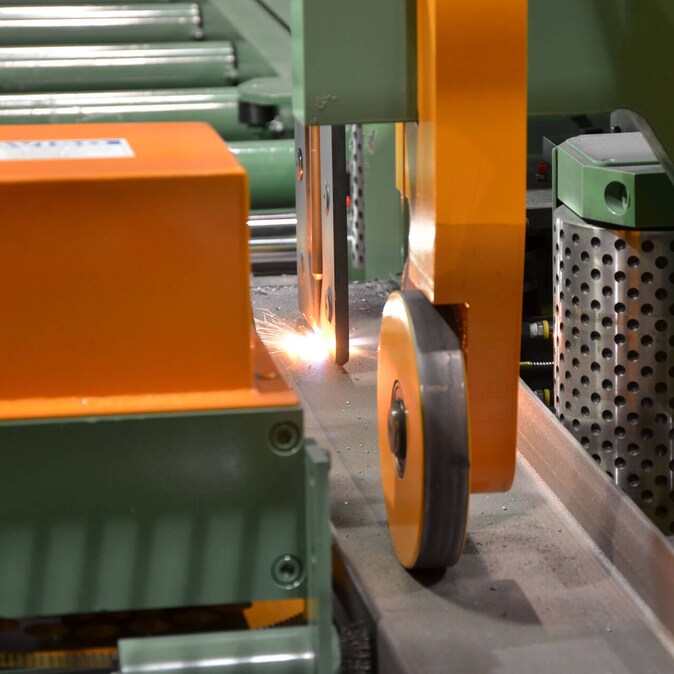

Nonstop Throughput with Roller Feed Measurement

Peddinghaus’ Roller Feed Measurement system exceeds the industry standard for roller measurement technology. Maintaining accurate measurements without any hesitation in production is crucial. Accuracy is not compromised even despite deviations in material.

Nonstop Throughput with Roller Feed Measurement

Band Saw Integration for Extended Cutting Capabilities

Achieve miter and straight cutting on new levels with the ABCM-1250. Place in-line with any of Peddinghaus’ automatic sawing systems and separate beams in record time.

Band Saw Integration for Extended Cutting Capabilities

Raptor 3D CAD/CAM Software

Developed by Peddinghaus, Raptor 3D CAD/CAM Software takes CNC innovation further by enabling users to program faster and more accurately. Inspect, modify and export part information directly within the 3D platform. This coupled with Peddinghaus CNC technology means maximum capacity for fabricators.
