Overview

  • Angle and Flat Line
  • SignoScript Carbide Scribing
  • SignoMat Part Stamping
  • Roller Feed Measurement
  • Minimum Quantity Lubrication
  • Superior Clamping System
  • Siemens Advanced Control
  • Raptor Software
  • Punching
  • Shearing
  • Material Infeed System
  • Material Outfeed System

Process

1"
Thick Angle and Flat Bar

Triple Tool

169
Ton Punch Presses

Accurate Angle Processing

Request Quote

Ideal for Your Thickest Angle

Detail components make up the smallest tonnage of any fabricators' workload, but consistently demand the highest amount of labor. The Anglemaster-HD has the ability to process both a fabricators’ thinnest angle stock and thickest angle stock.

CNC Angle Line

Heavy Duty Angle Processing

By utilizing an array of dimensioning feedback, the Anglemaster-HD can identify the length and thickness of material. With this information, punch and shear motions are optimized to increase production efficiency.

Triple Tool Punch Press

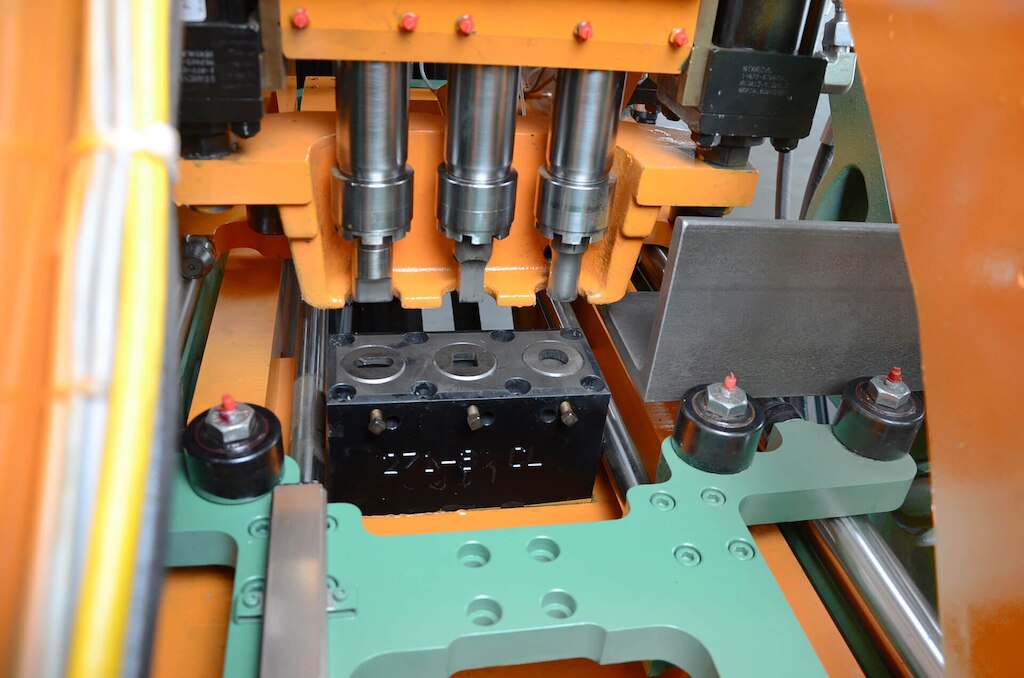

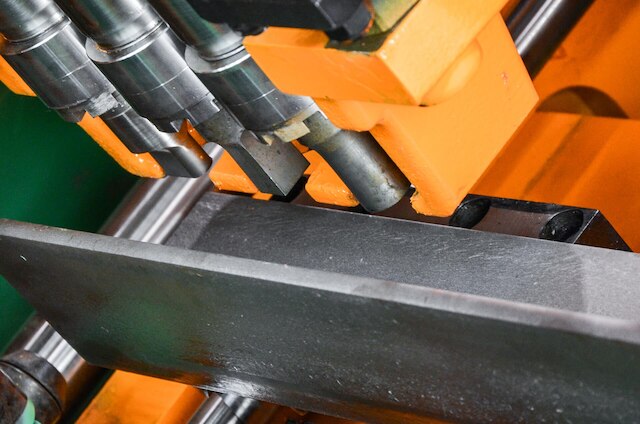

Two 169 ton punch cylinders each with three punch stations per hydraulic press allow the Anglemaster-HD to apply up to three different hole shapes/sizes per leg. The Anglemaster-HD can accommodate shaped holes such as squares, rectangles, obrounds and slots.

Triple Tool Punch Press

Powerful Shearing

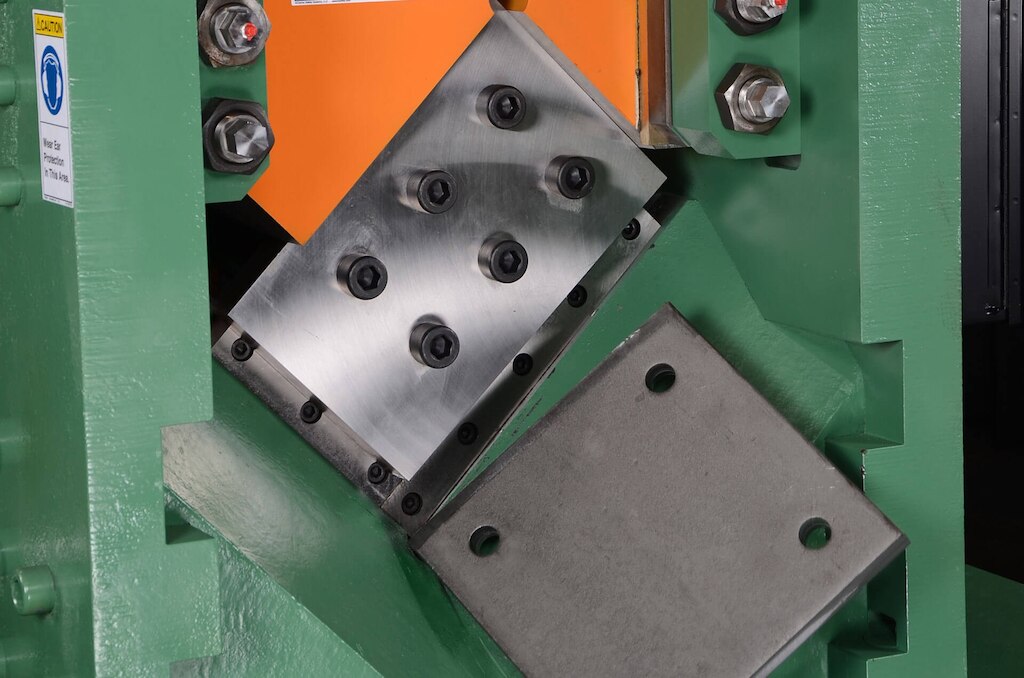

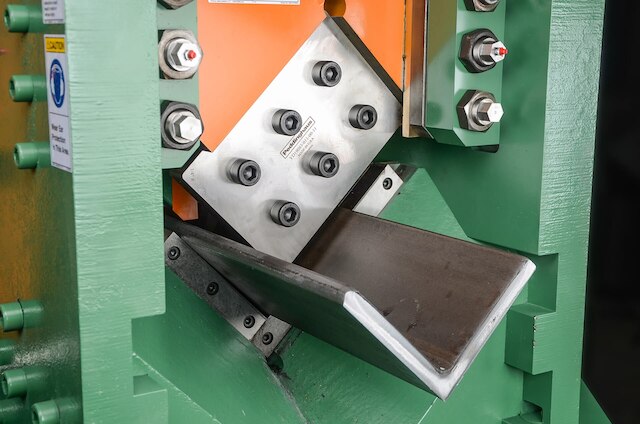

The Anglemaster-HD uses a single cut 515 ton shear press for the cutting to length angle and flat stock. A single cut shear mechanism eliminates the slug created by double cut shear mechanisms.

Powerful Shearing

SignoScript Carbide Scribing

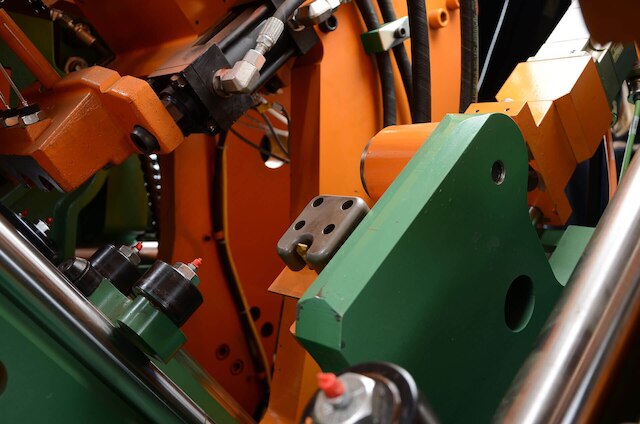

The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.

SignoScript Carbide Scribing

SignoMat Part Stamping

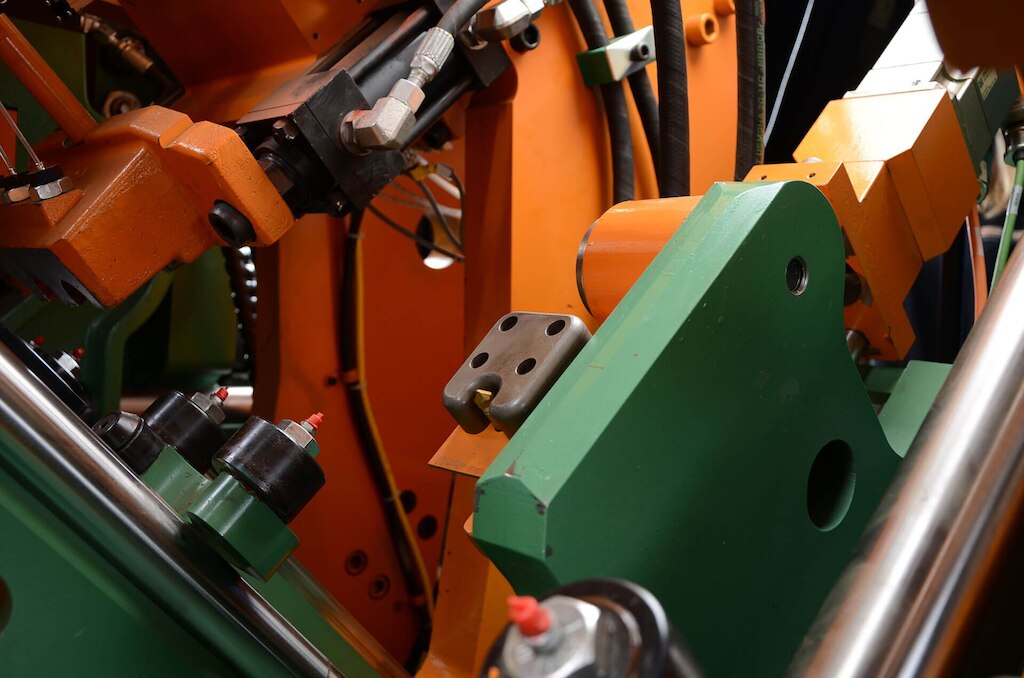

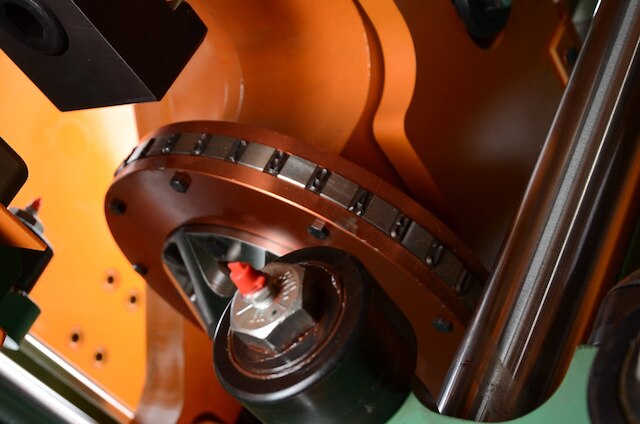

The SignoMat part stamping unit stamps at an unmatched 1 character per second with a depth of 1/32" (.8 mm) and a total height of 1/2" (12 mm). The unit holds up to 36 characters for complete part marking ability.

SignoMat Part Stamping

Nonstop Throughput with Roller Feed Technology

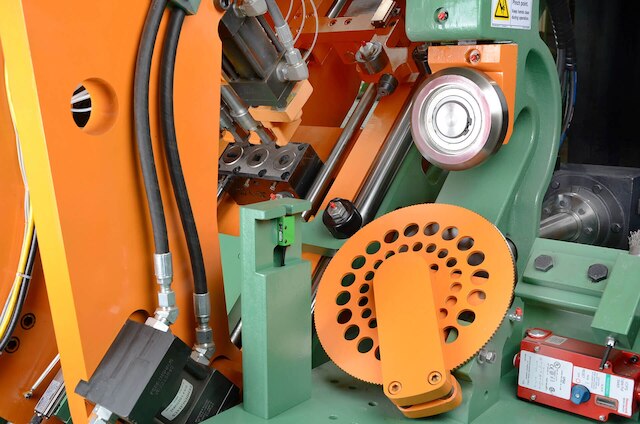

Equipped with the Peddinghaus Roller Feed measurement system, the Anglemaster-HD maximizes contact with the material at all times. This Roller Feed technology ensures a constant roll and an accurate measurement given deviations in material.

Nonstop Throughput with Roller Feed Technology

Infeed and Outfeed Material Handling

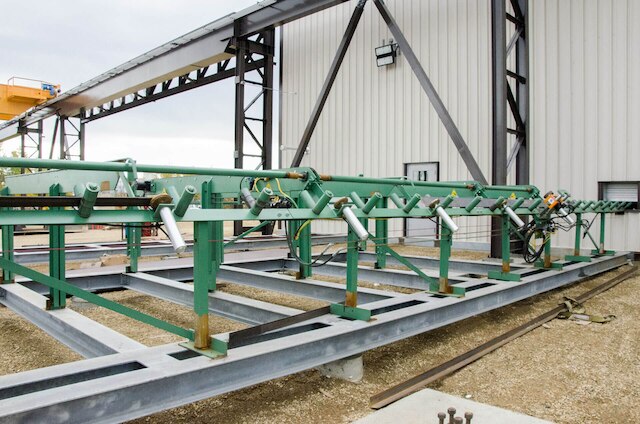

The infeed and outfeed material handling system, designed for continuous production, keeps the operator safe at all times. As drag chain conveyors move material to the infeed conveyors, power material advance initiates steel into the machine. Once sheared, drive rollers advance the finished parts to the unloading zone.

Infeed and Outfeed Material Handling

Raptor 3D CAD/CAM Software

Developed by Peddinghaus, Raptor 3D CAD/CAM Software takes CNC innovation further by enabling users to program faster and more accurately. Inspect, modify and export part information directly within the 3D platform. This coupled with Peddinghaus CNC technology means maximum capacity for fabricators.

Explore Software
Need Help?

Anglemaster-663

Angle Line

Angle Capacity: 6.3" x 6.3" x 3/4"

Anglemaster-643

Angle Line Machine

Angle Capacity: 6" x 6" x 5/8"

next
previous
Watching:Anglemaster-HD


Anglemaster-HD

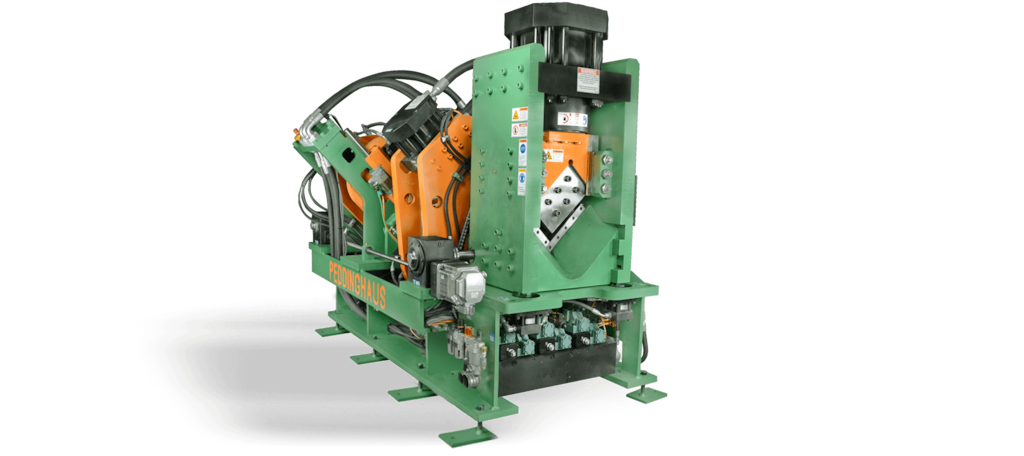

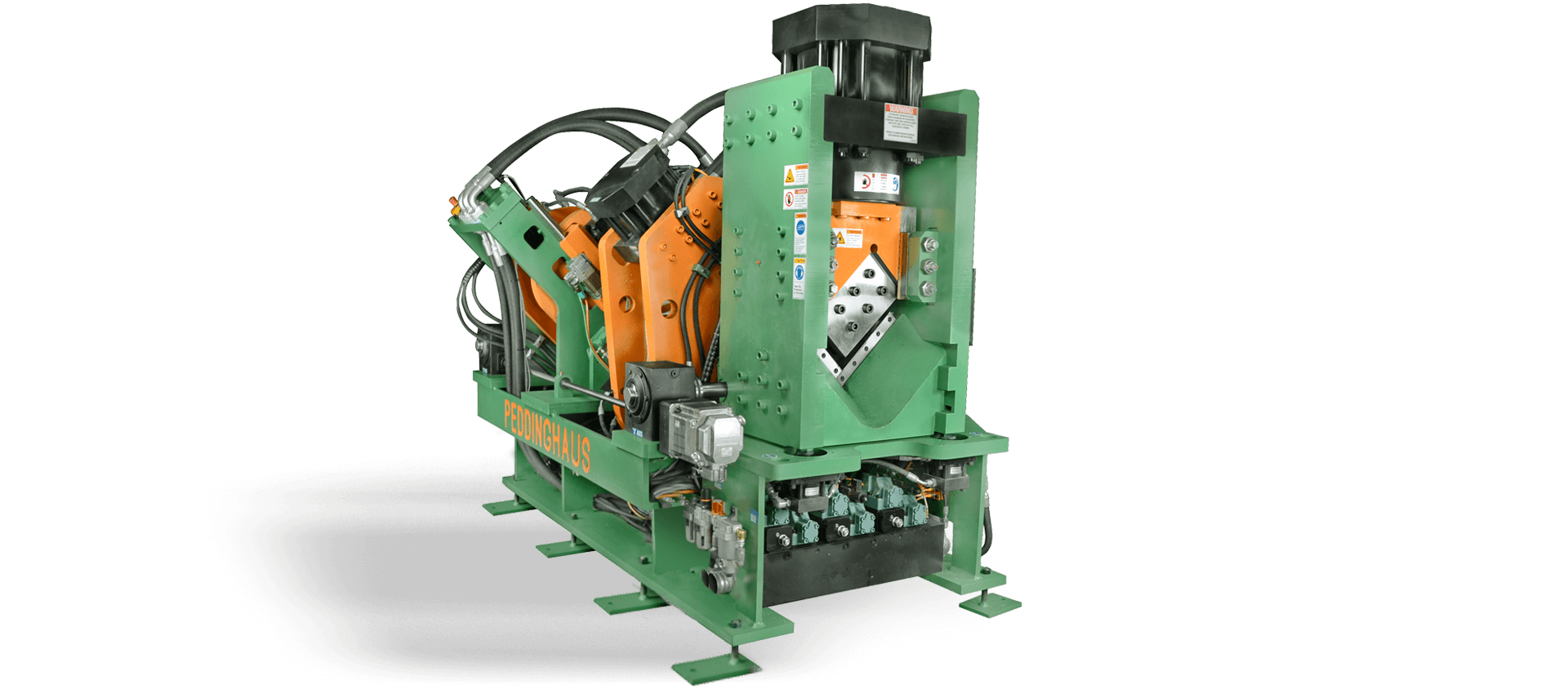

CNC Angle Line

Angle Capacity: 8" x 8" x 1"

The Industry’s Heaviest Anglemaster

Ideal for Your Thickest Angle

Detail components make up the smallest tonnage of any fabricators' workload, but consistently demand the highest amount of labor. The Anglemaster-HD has the ability to process both a fabricators’ thinnest angle stock and thickest angle stock.

Heavy Duty Angle Processing

By utilizing an array of dimensioning feedback, the Anglemaster-HD can identify the length and thickness of material. With this information, punch and shear motions are optimized to increase production efficiency.

Triple Tool Punch Press

Triple Tool Punch Press

Two 169 ton punch cylinders each with three punch stations per hydraulic press allow the Anglemaster-HD to apply up to three different hole shapes/sizes per leg. The Anglemaster-HD can accommodate shaped holes such as squares, rectangles, obrounds and slots.

Powerful Shearing

Powerful Shearing

The Anglemaster-HD uses a single cut 515 ton shear press for the cutting to length angle and flat stock. A single cut shear mechanism eliminates the slug created by double cut shear mechanisms.

SignoScript Carbide Scribing

SignoScript Carbide Scribing

The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.

SignoMat Part Stamping

SignoMat Part Stamping

The SignoMat part stamping unit stamps at an unmatched 1 character per second with a depth of 1/32" (.8 mm) and a total height of 1/2" (12 mm). The unit holds up to 36 characters for complete part marking ability.

Nonstop Throughput with Roller Feed Technology

Nonstop Throughput with Roller Feed Technology

Equipped with the Peddinghaus Roller Feed measurement system, the Anglemaster-HD maximizes contact with the material at all times. This Roller Feed technology ensures a constant roll and an accurate measurement given deviations in material.

Infeed and Outfeed Material Handling

Infeed and Outfeed Material Handling

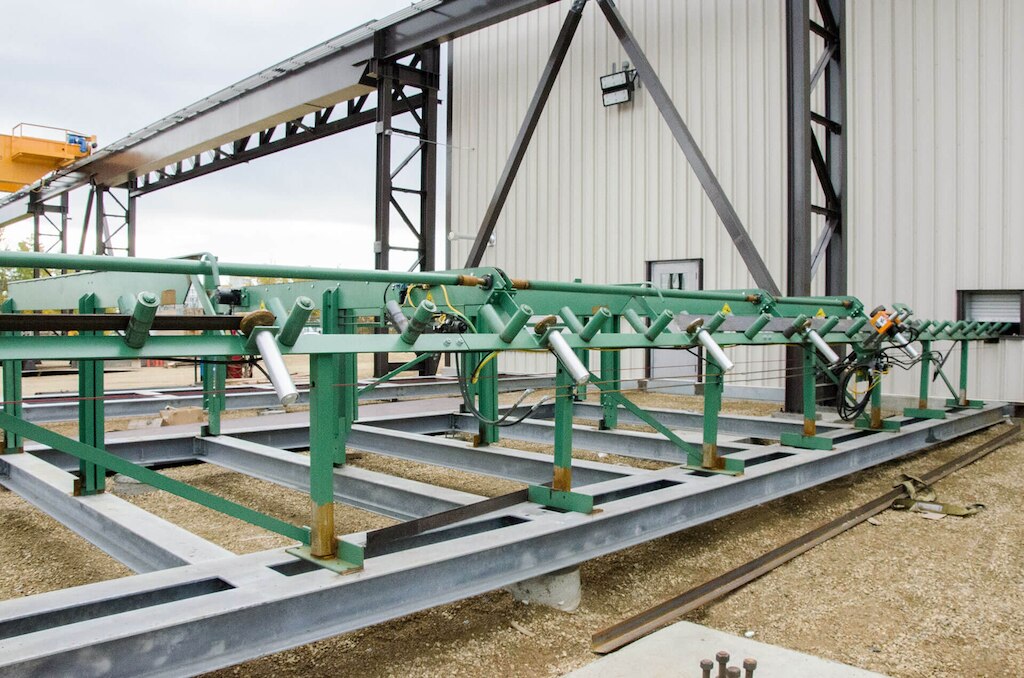

The infeed and outfeed material handling system, designed for continuous production, keeps the operator safe at all times. As drag chain conveyors move material to the infeed conveyors, power material advance initiates steel into the machine. Once sheared, drive rollers advance the finished parts to the unloading zone.
