Watching:Advantage


Overview

  • Structural Steel Drill Line
  • High Speed Drilling
  • SignoScript Carbide Scribing
  • SignoMat Part Stamping
  • Three Drill Assemblies
  • 13.5 HP Spindle Motors
  • Minimum Quantity Lubrication
  • Superior Clamping System
  • Peddinghaus Control
  • Raptor Software

Capacity

44"
Maximum Profile Width

Process

75
Tons Per Week

Unmatched Drilling Force

Request Quote

Perfection in the Basics

Peddinghaus has shaped today’s beam drill line standard with time-tested technology. The Advantage processes an average of 75 tons of steel per work week with the most efficient drilling, scribing and stamping operations.

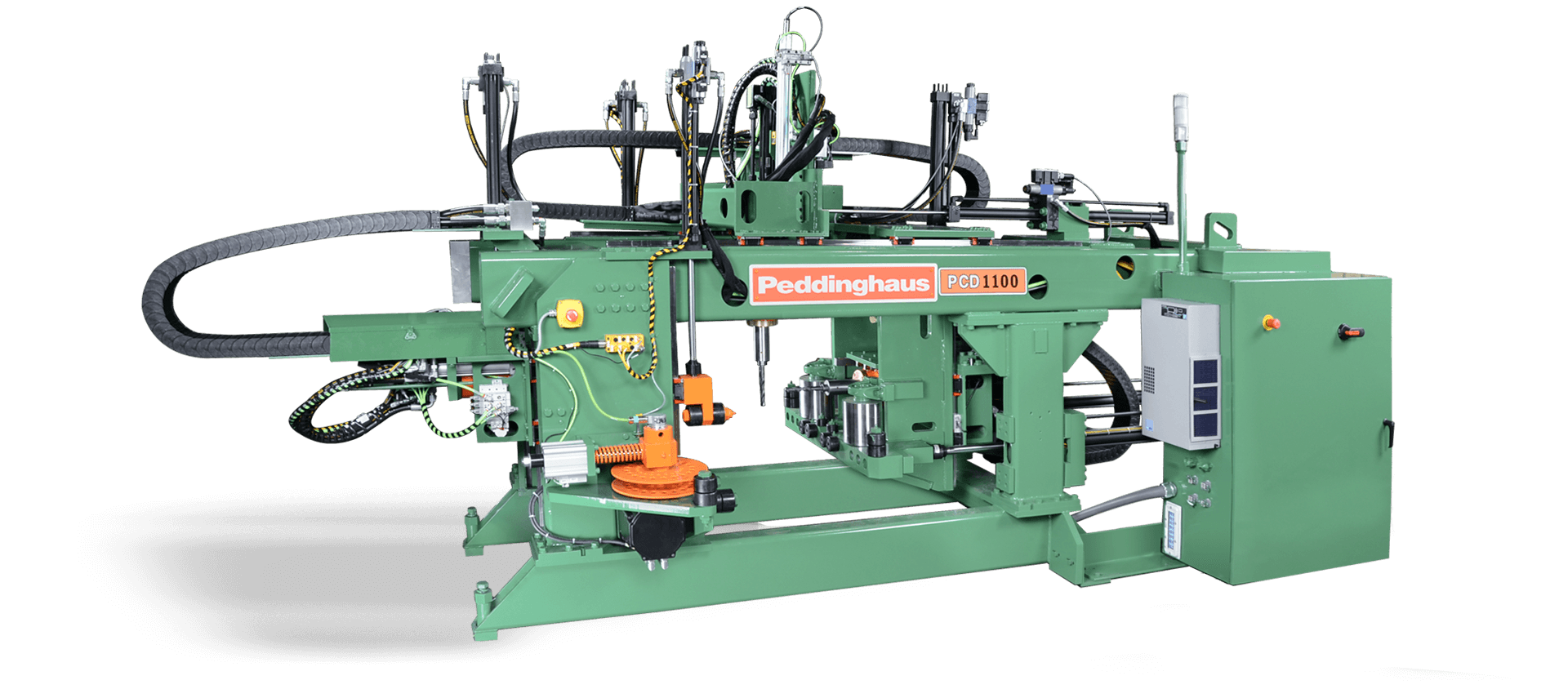

CNC Beam Drilling Machine

What is Your Advantage?

The Advantage carbide drill line utilizes completely electronic spindle motion. This combined with Peddinghaus' renowned build quality and mechanical design provide the ultimate combination of agility and strength.

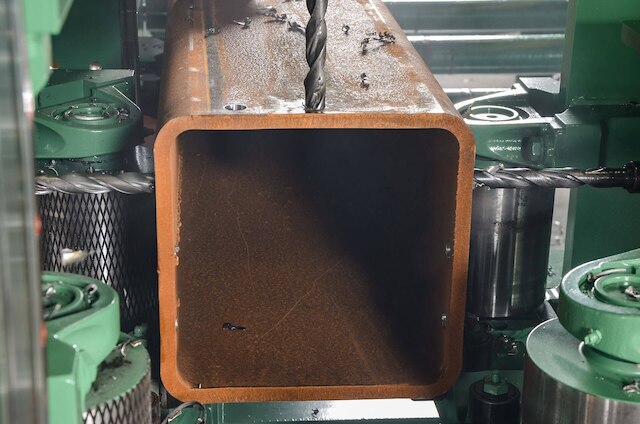

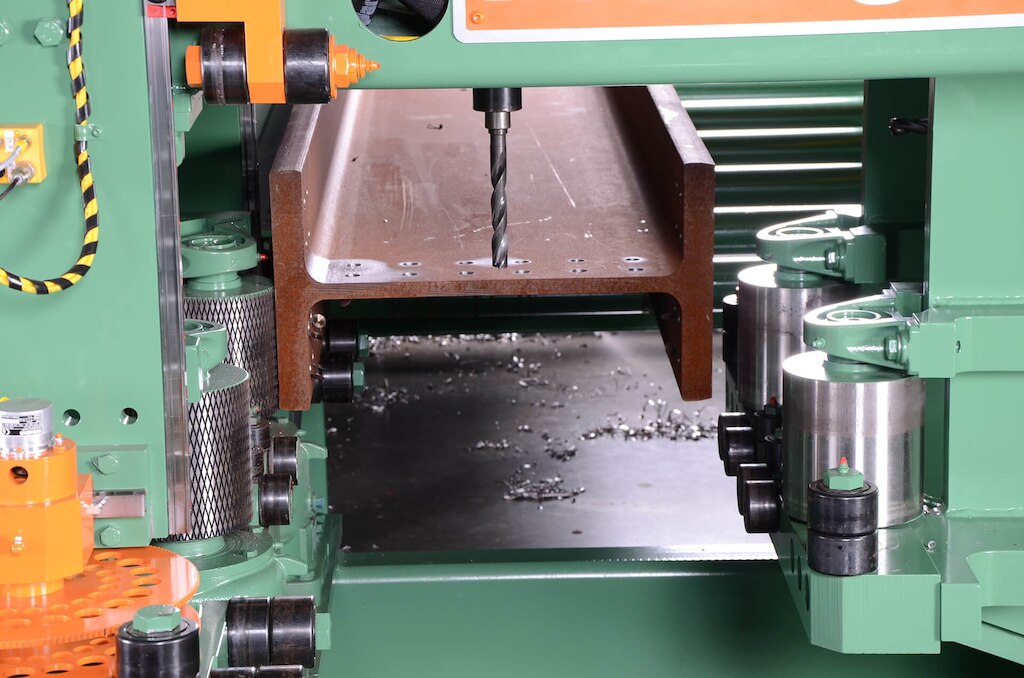

High Speed Carbide Drilling

Powered by 13.5 HP (10 kW) spindle motors, the Advantage is outfitted with 3 drill spindles. This powerful drilling technology allows for maximized operating time and drill hole quality.

High Speed Carbide Drilling

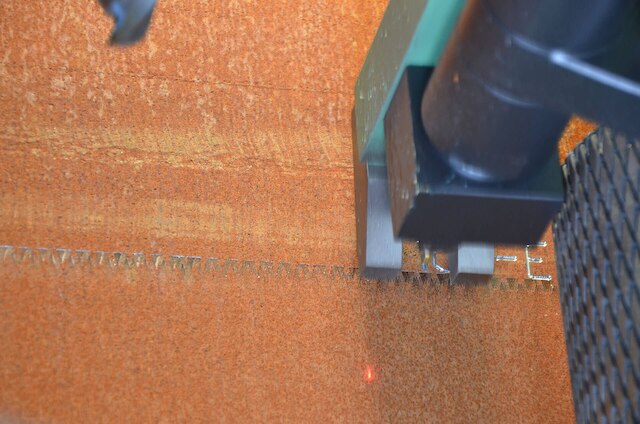

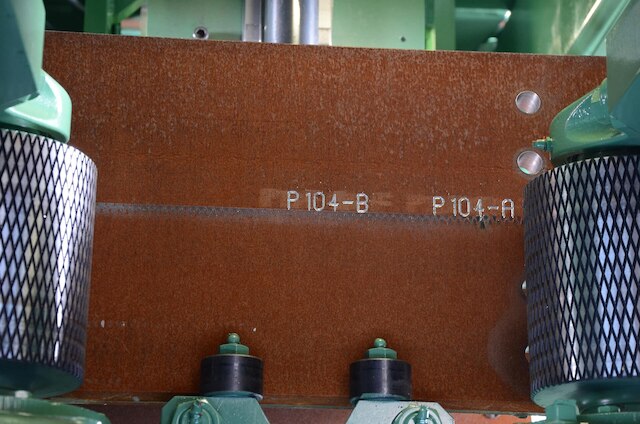

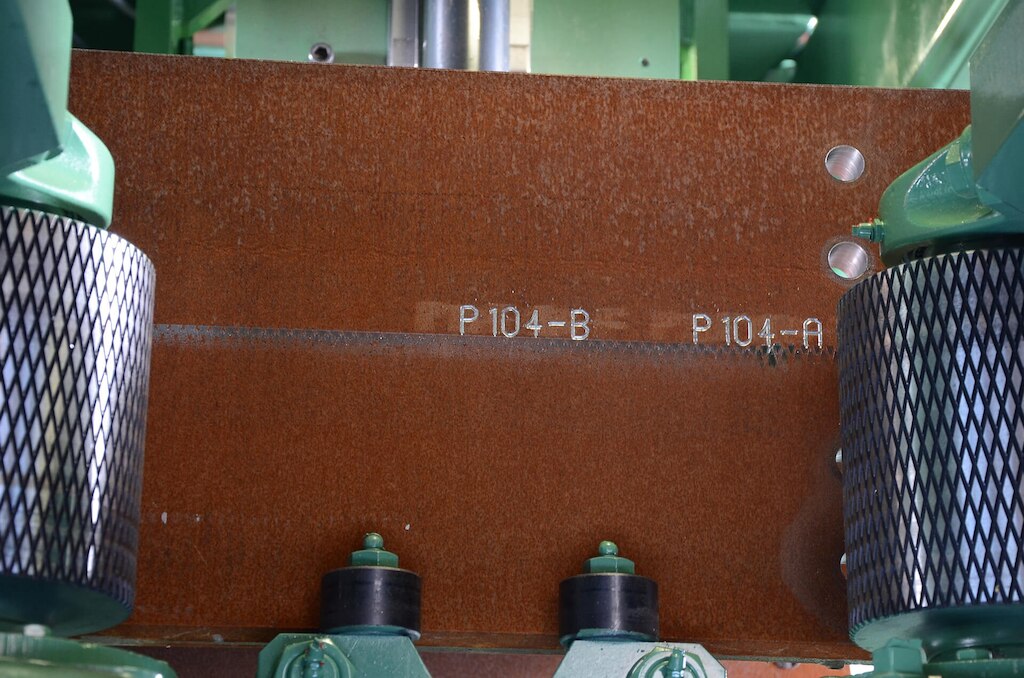

SignoScript Carbide Scribing

The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.

SignoScript Carbide Scribing

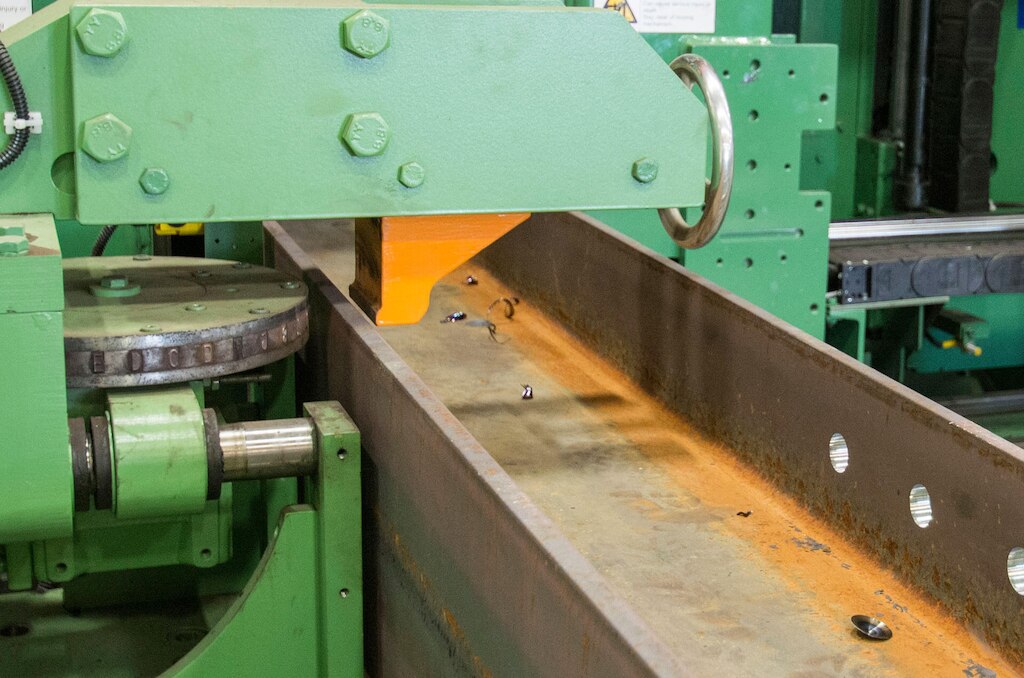

SignoMat Part Stamping

An optional part stamping system maximizes part numbering efficiency. SignoMat technology stamps up to 36 characters or numbers at a rate of one character per second.

SignoMat Part Stamping

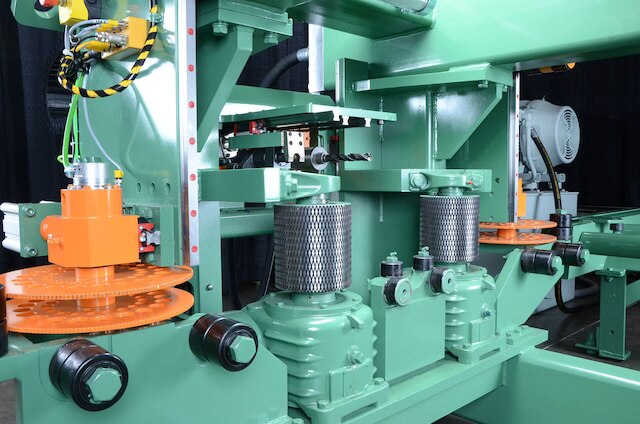

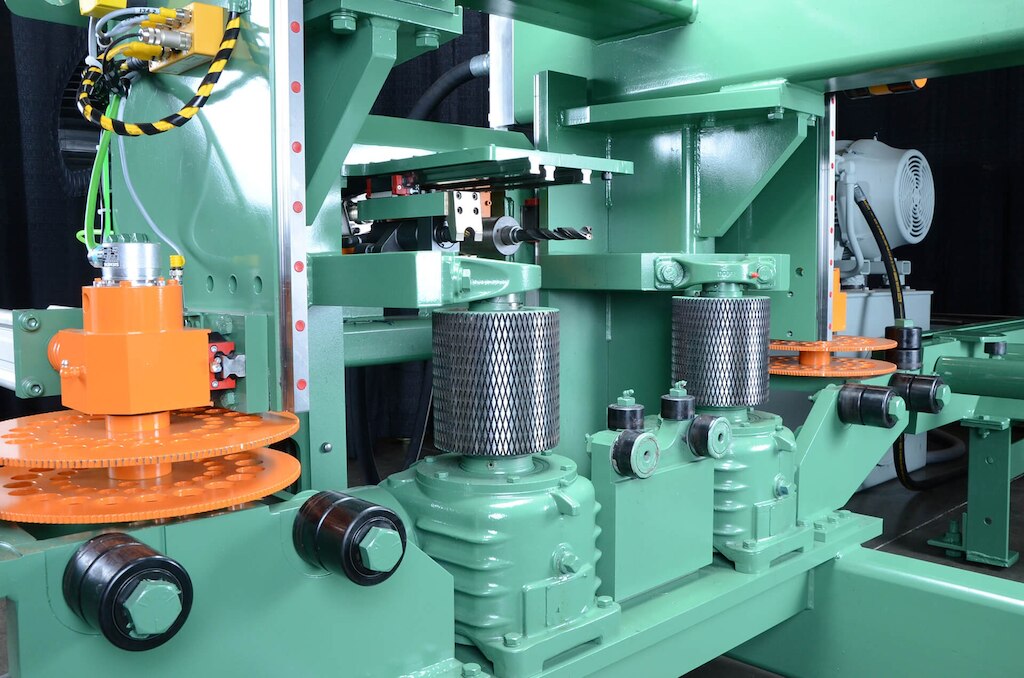

Nonstop Throughput with Roller Feed Measurement

Peddinghaus’ patented Roller Feed Measurement system exceeds the industry standard for roller measurement technology. Maintaining accurate measurements without any hesitation in production is crucial. Accuracy is not compromised even despite deviations in material.

Nonstop Throughput with Roller Feed Measurement

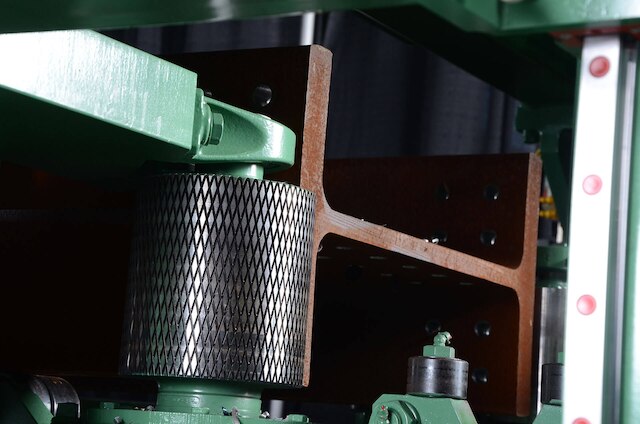

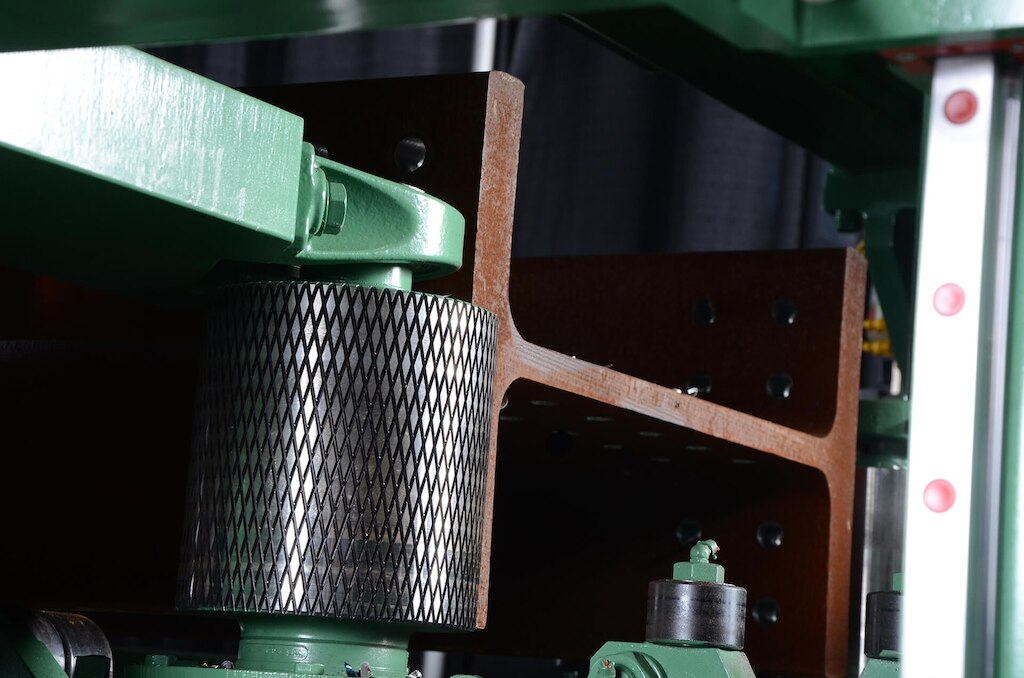

Sturdy Drill Clamping to Eliminate Vibration

The Advantage employs a series of support clamps in order to achieve optimum rigidity of the workpiece through the machine. Carbide tool life is best sustained with the least amount of vibration possible.

Sturdy Drill Clamping to Eliminate Vibration

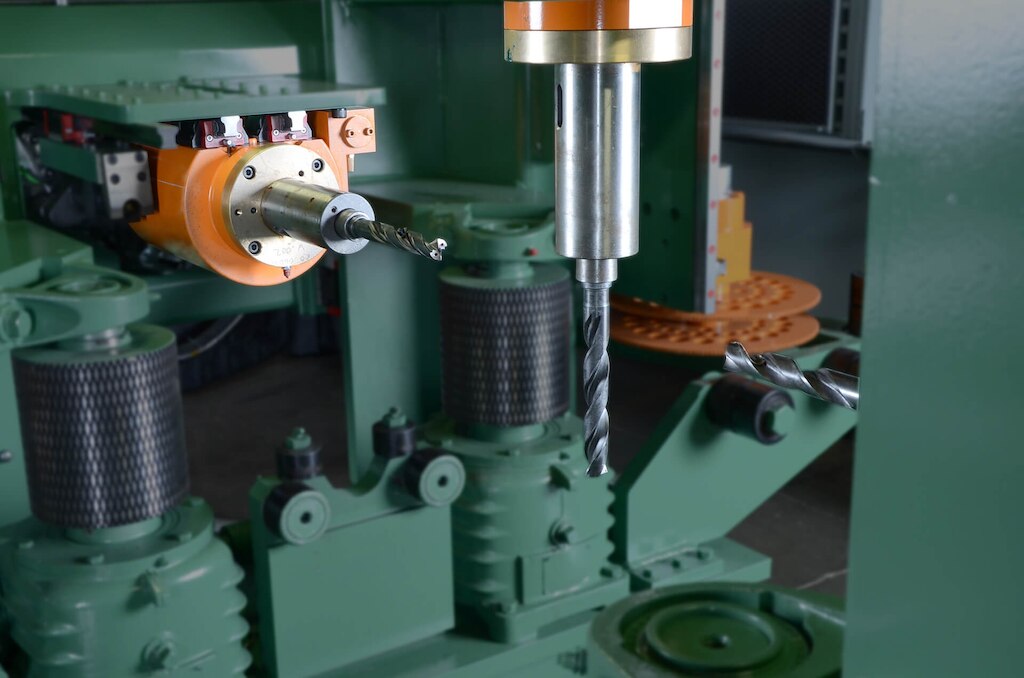

Smart Spindle Technology for Faster Drilling

Peddinghaus engineers pioneered a system that instantaneously senses material break-through notifying the machine of the moment a hole is completed and immediately advancing to the next hole in a pattern. Smart Spindle technology is designed to increase the amount of time that your drill is actually drilling material.

Smart Spindle Technology for Faster Drilling

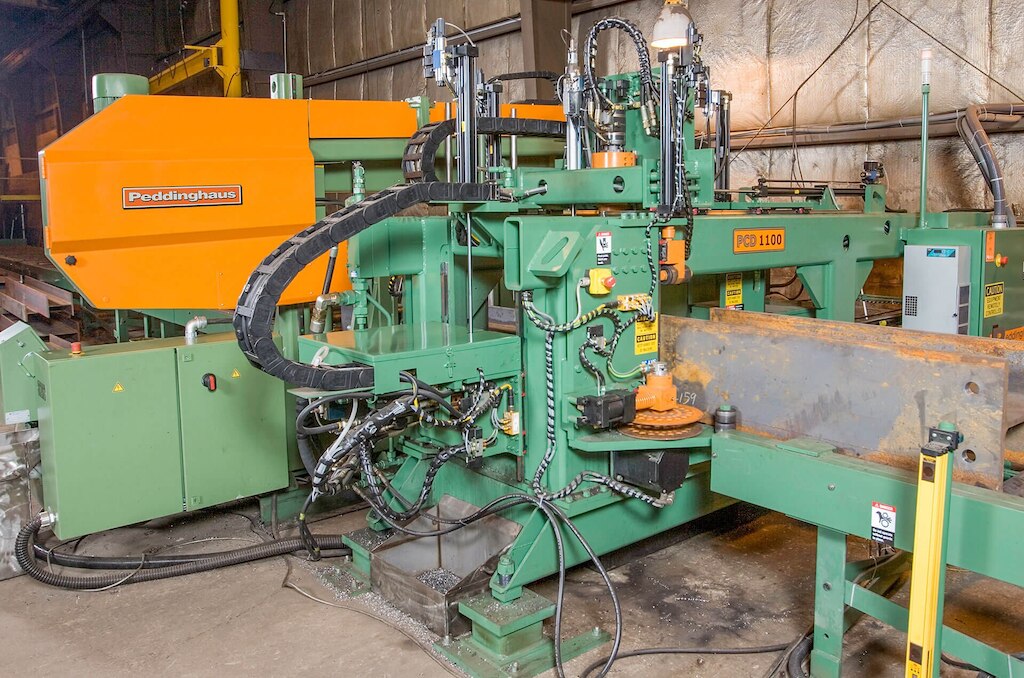

Band Saw Integration

The Advantage drill line with its powerful material handling support, meticulous measurement capabilities and high speed designs are ideal for tandem installations with any of Peddinghaus' automatic sawing systems.

Band Saw Integration

Raptor 3D CAD/CAM Software

Developed by Peddinghaus, Raptor 3D CAD/CAM Software takes CNC innovation further by enabling users to program faster and more accurately. Inspect, modify and export part information directly within the 3D platform. This coupled with Peddinghaus CNC technology means maximum capacity for fabricators.
