Viewing: angle lines

6 Punches

Machines
Three punch stations per hydraulic press allow the machine to apply up to three different hole shapes/sizes per leg. A new and improved punch tool design allows for quicker and easier tool changes.
Machine: Anglemaster-663
View Full Image

Powerful Shearing

Machines
The Anglemaster-663 uses a single cut 320 ton shear press for the cutting to length angle and flat stock.
Machine: Anglemaster-663
View Full Image

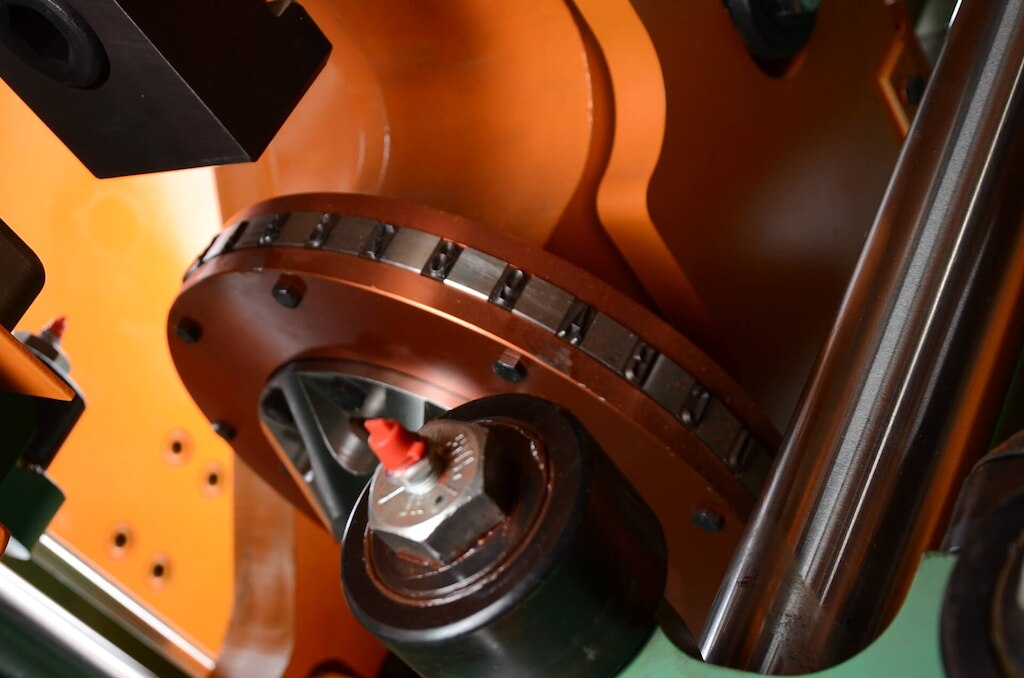

SignoMat Part Stamping

Machines
The SignoMat part stamping unit holds up to 36 characters, letters or numbers, and stamps at a depth of 1/32" (.8 mm) with a total height of 1/2" (12 mm).
Machine: Anglemaster-663
View Full Image

Roller Feed Technology

Machines
Equipped with the Peddinghaus Roller Feed measurement system, the Anglemaster-663 maximizes contact with the material at all times. This Roller Feed technology ensures a constant roll and an accurate measurement given deviations in material.
Machine: Anglemaster-663
View Full Image

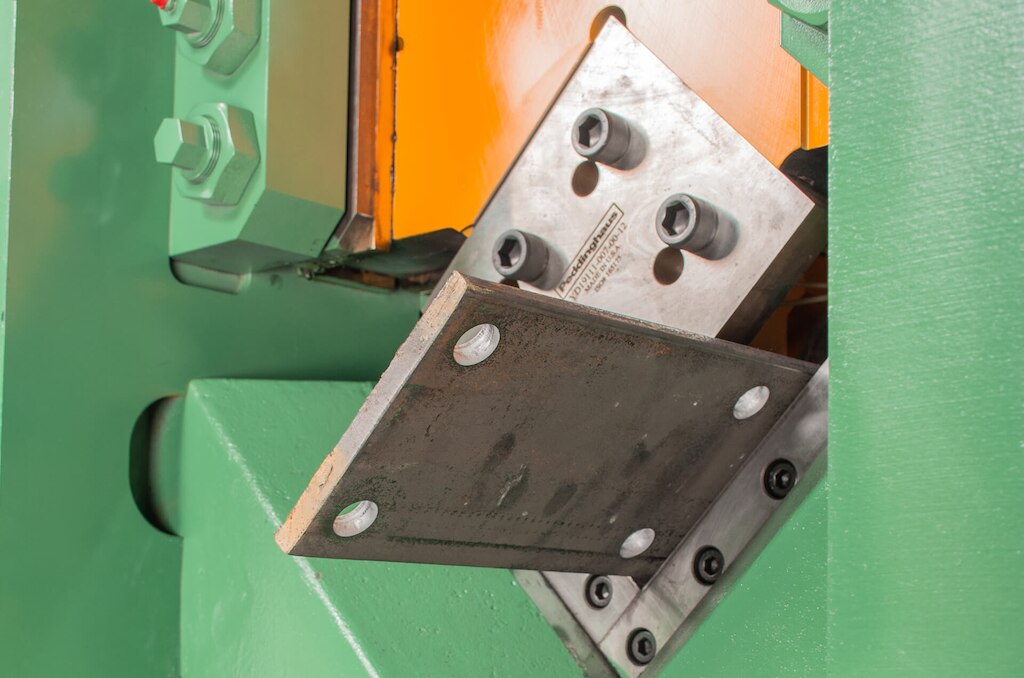

Shearing Plate

Machines
Cleanly processes base plates and flat bars with precision accuracy. Designed for rugged fabrication environments, it maintains perfect cut integrity.
Machine: Anglemaster-663
View Full Image

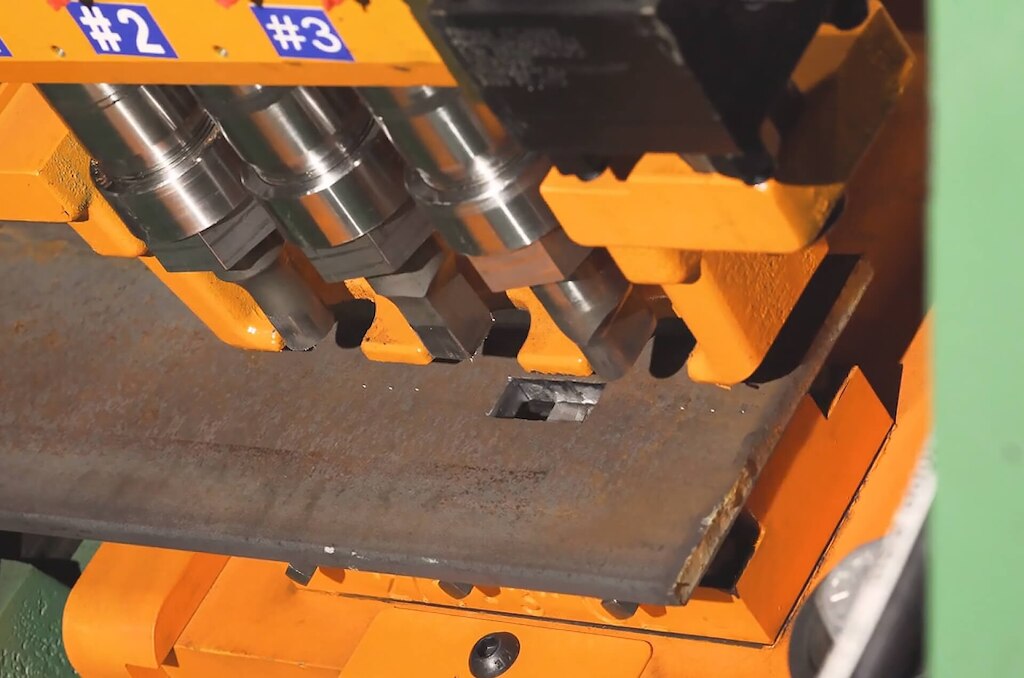

Square Punching

Machines
High-speed square punching provides consistent hole quality and alignment for angle and plate fabrication. The Peddinghaus hydraulic system ensures tight tolerances for structural steel production.
Machine: Anglemaster-663
View Full Image

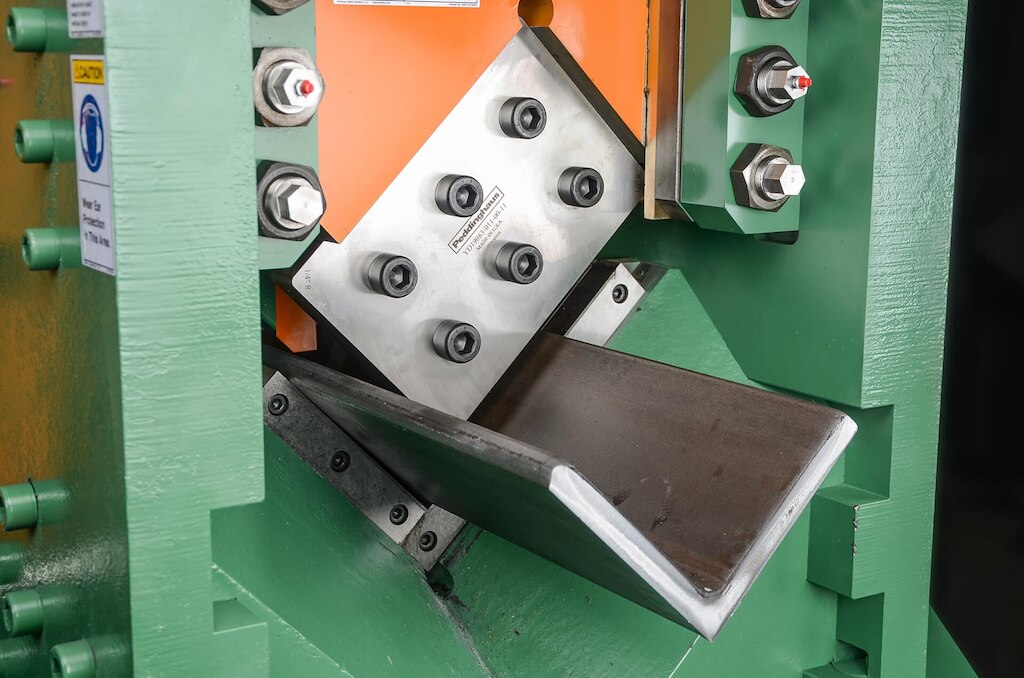

Shearing Angle

Machines
The precision shear station delivers clean, burr-free cuts on heavy-duty steel angles. Engineered for longevity, this system ensures accurate shearing with minimal material waste.
Machine: Anglemaster-663
View Full Image

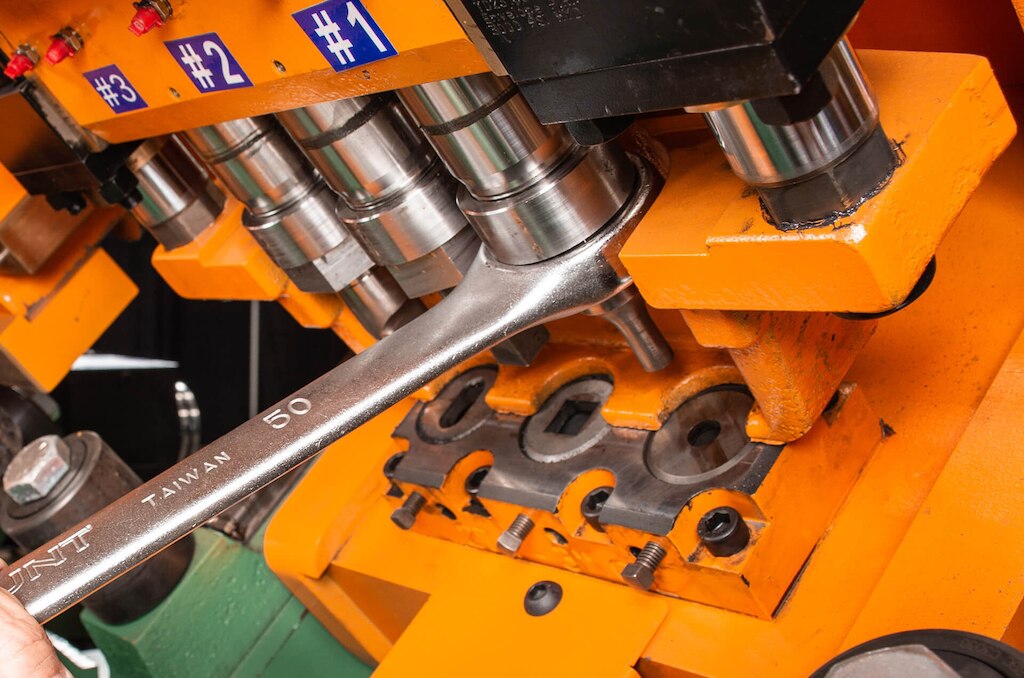

Easy Tool Changes

Machines
Quick-change tooling minimizes downtime and maximizes productivity on the Peddinghaus Anglemaster. Operators can efficiently swap punch and shear tools to adapt to different profiles without interrupting production.
Machine: Anglemaster-663
View Full Image

6 Punches

Machines
Two 169 ton punch cylinders each with three punch stations per hydraulic press allow the Anglemaster-HD to apply up to three different hole shapes/sizes per leg.
Machine: Anglemaster-HD
View Full Image

Powerful Shearing

Machines
The Anglemaster-HD uses a single cut 515 ton shear press for the cutting to length angle and flat stock.
Machine: Anglemaster-HD
View Full Image

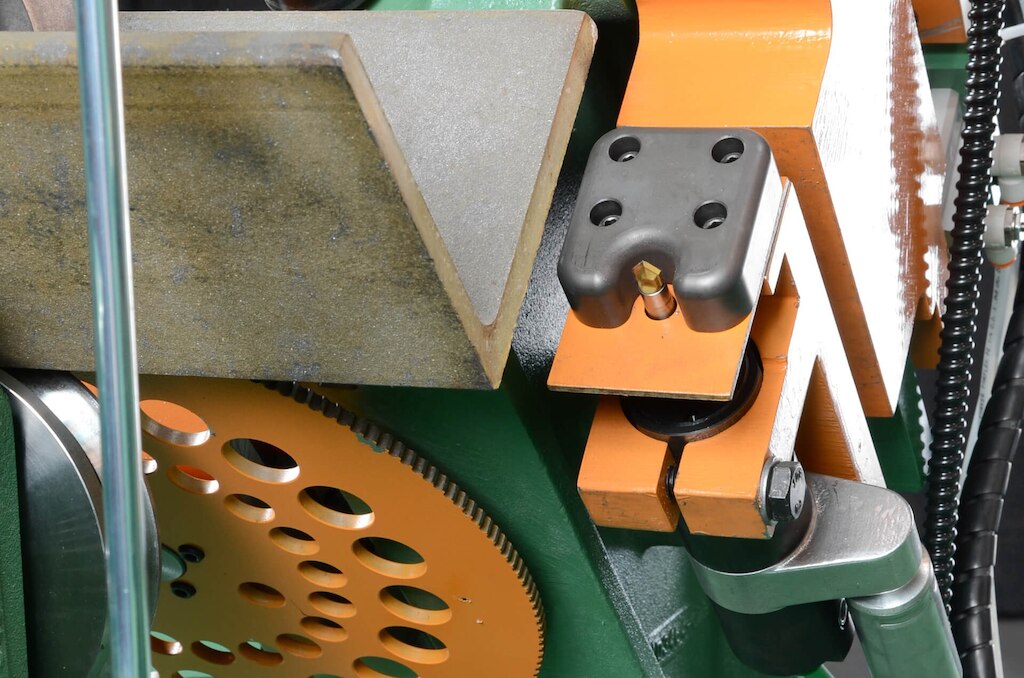

SignoScript Carbide Scribing

Machines
The SignoScript layout marking attachment eliminates human error in manual layout methods.
Machine: Anglemaster-HD
View Full Image

Roller Feed Technology

Machines
Equipped with the Peddinghaus Roller Feed measurement system, the Anglemaster-HD maximizes contact with the material at all times.
Machine: Anglemaster-HD
View Full Image

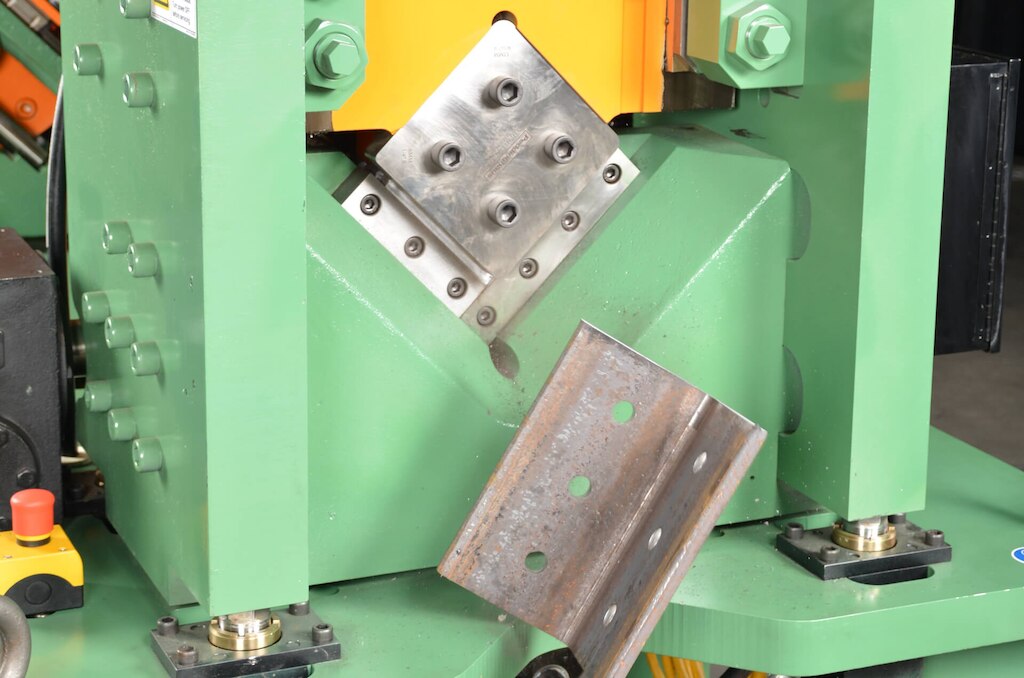

Shearing Angle

Machines
The precision shear station delivers clean, burr-free cuts on heavy-duty steel angles. Engineered for longevity, this system ensures accurate shearing with minimal material waste.
Machine: Anglemaster-HD
View Full Image

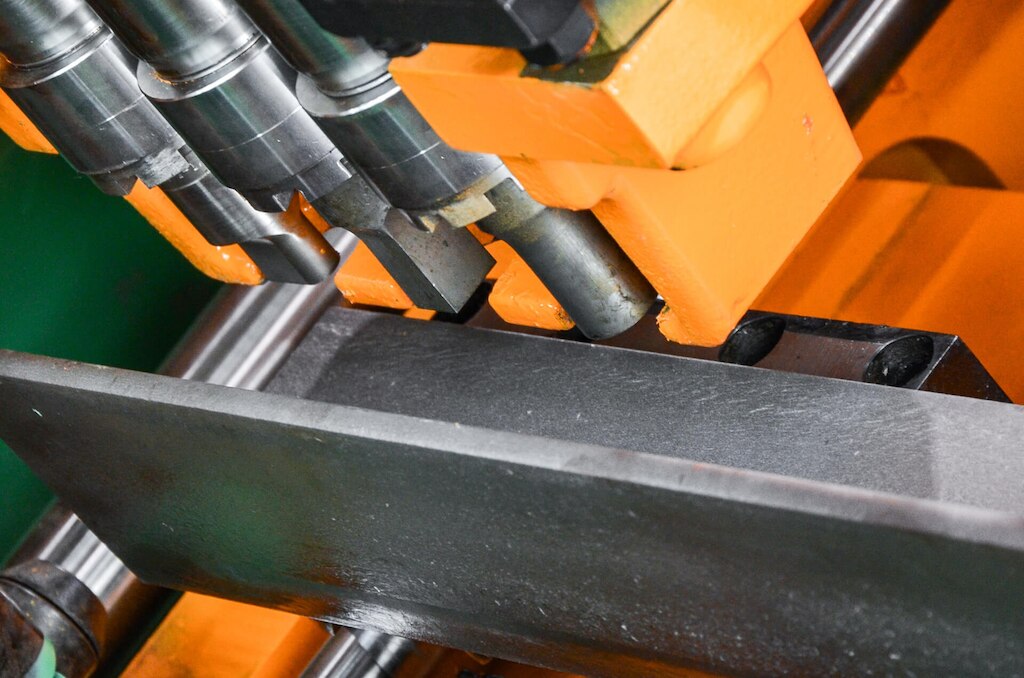

Punching Angle

Machines
High-speed punching provides consistent hole quality and alignment for angle and plate fabrication. The Peddinghaus hydraulic system ensures tight tolerances for structural steel production.
Machine: Anglemaster-HD
View Full Image

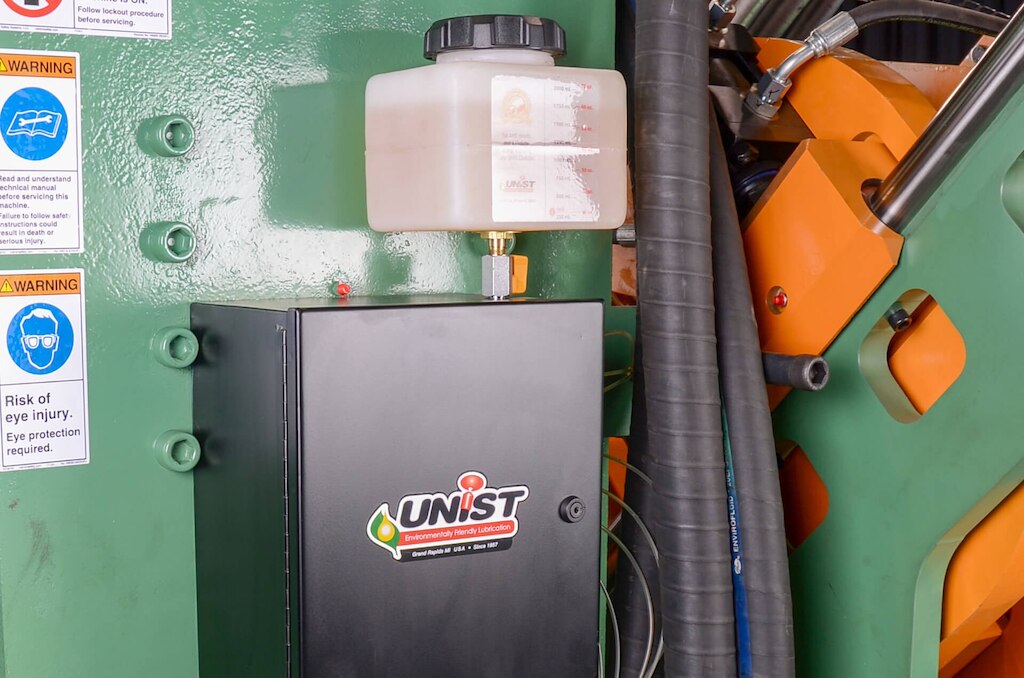

Minimum Quantity Lubrication (MQL)

Machines
This environmentally friendly, vegetable oil-based lubricant is designed specifically for use on all Peddinghaus machines.
Machine: Anglemaster-HD
View Full Image

SignoMat Part Stamping

Machines
The unit holds up to 36 characters for complete part marking ability.
Machine: Anglemaster-HD
View Full Image

4 Punches

Machines
Two 75 ton punch cylinders each with two punch stations per hydraulic press allow the Anglemaster-643 to apply up to two different hole shapes/sizes per leg.
Machine: Anglemaster-643
View Full Image

Powerful Shearing

Machines
The Anglemaster-643 uses a single cut 230 ton shear press for the cutting to length angle and flat stock.
Machine: Anglemaster-643
View Full Image

SignoScript Carbide Scribing

Machines
The SignoScript layout marking attachment eliminates human error in manual layout methods.
Machine: Anglemaster-643
View Full Image

Roller Feed Technology

Machines
Equipped with the Peddinghaus Roller Feed measurement system, the Anglemaster-643 maximizes contact with the material at all times.
Machine: Anglemaster-643
View Full Image

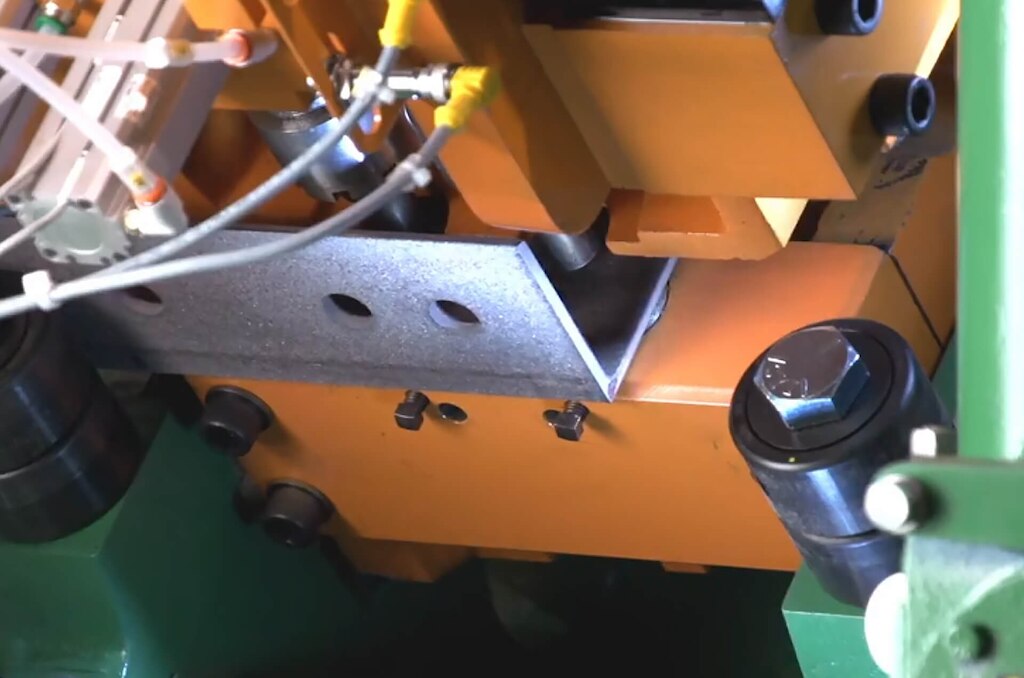

Punching Angle

Machines
High-speed punching provides consistent hole quality and alignment for angle and plate fabrication. The Peddinghaus hydraulic system ensures tight tolerances for structural steel production.
Machine: Anglemaster-643
View Full Image

SignoScript Carbide Scribing

Machines
The SignoScript layout marking attachment eliminates human error in manual layout methods. Complete information is maintained throughout blasting, galvanizing and painting processes.
Machine: Anglemaster-643
View Full Image

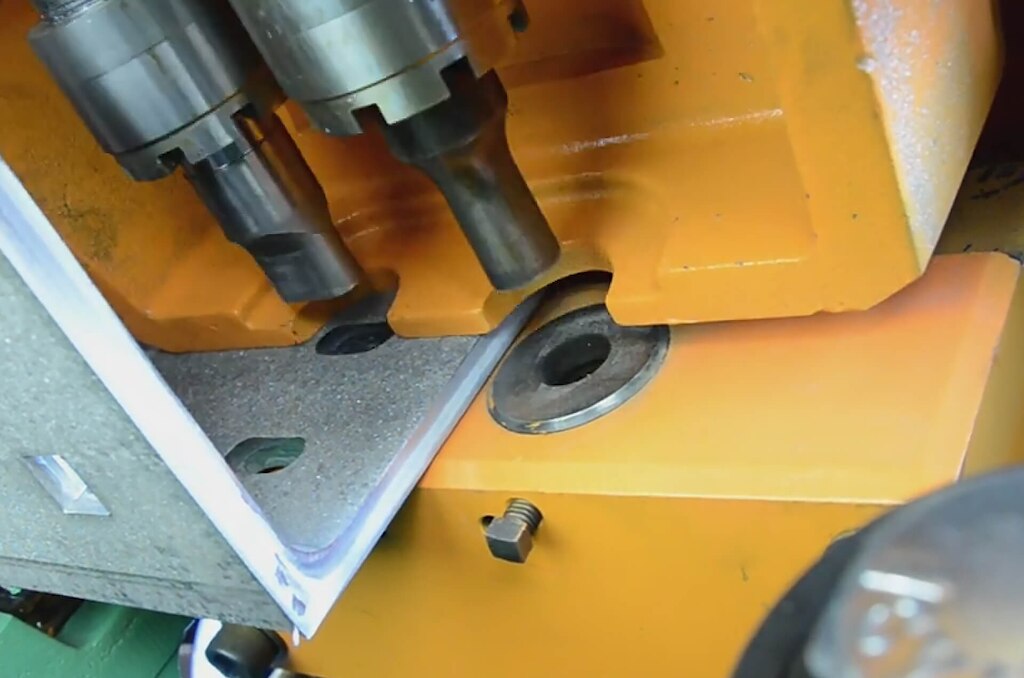

Oblong Punching Angle

Machines
The Peddinghaus Anglemaster delivers precise oblong punching for slotted holes in heavy structural angles. This advanced hydraulic system ensures smooth, repeatable punches for bolted connections.
Machine: Anglemaster-643
View Full Image

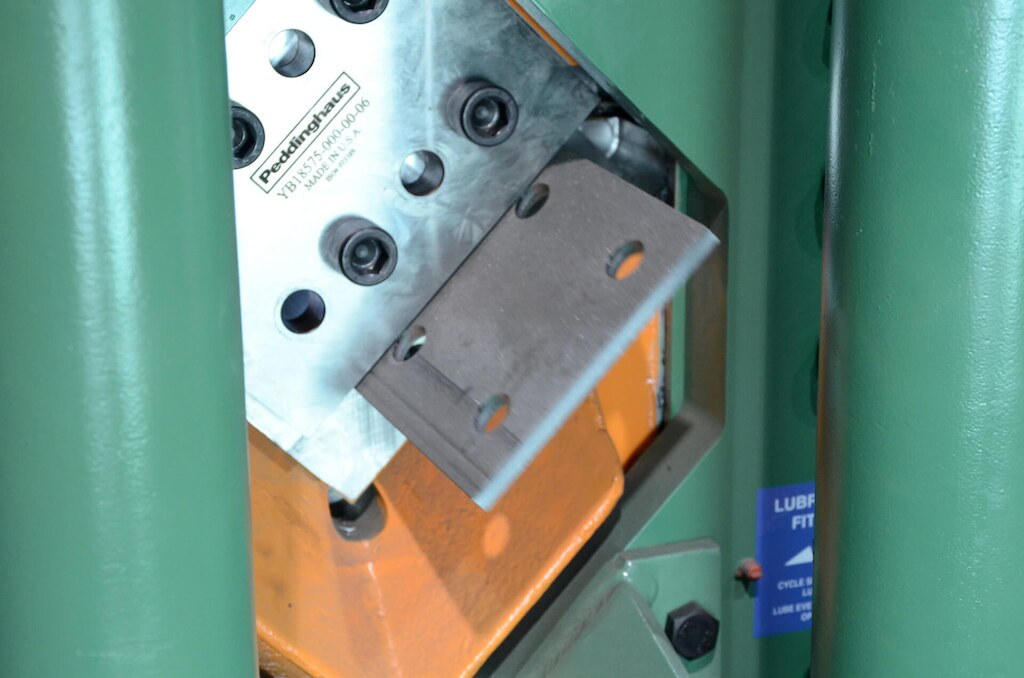

Shearing Plate

Machines
The Anglemaster-643 angle line machine uses a single cut 230 ton shear press for the cutting to length angle and flat stock. A single cut shear mechanism eliminates the slug created by double cut shear mechanisms.
Machine: Anglemaster-643
View Full Image
