The New King in Angle Processing

PeddiNews: Anglemaster-663

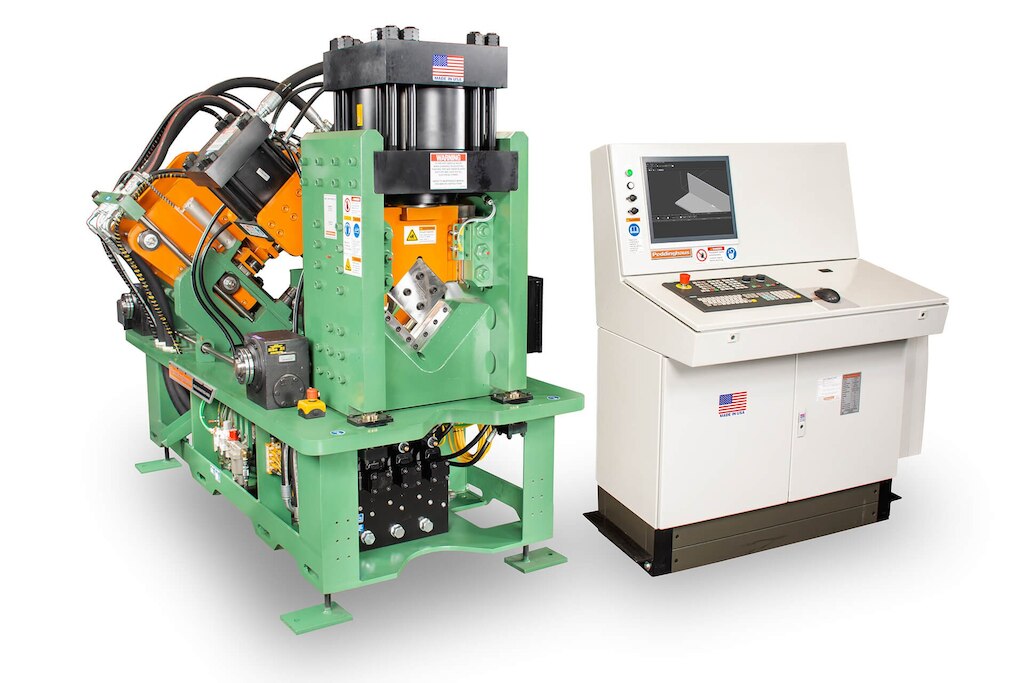

Serving as the industry's benchmark for productivity, the Anglemaster-663 caters to today's fabricators' need to automate punching, shearing and marking for angle and flat bar. A new and improved punch tool design allows for quicker and easier tool changes. The Anglemaster-663 can accommodate shaped holes such as squares, rectangles, obrounds and slots, including a feature that allows nibbling of material.

Powerful Shear

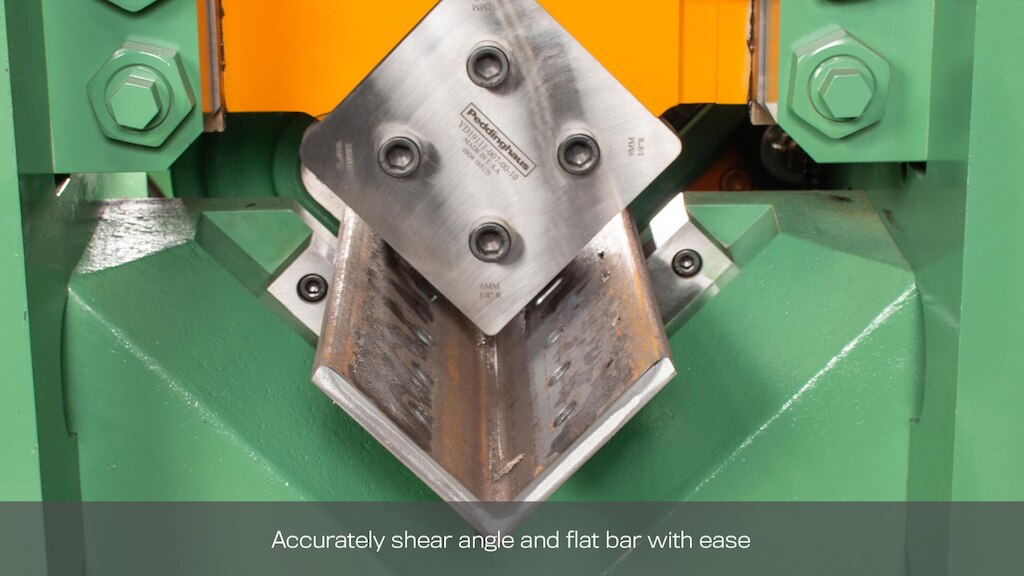

The Anglemaster-663 uses a single cut 320 ton shear press for the cutting to length angle and flat stock. A single cut shear mechanism eliminates the slug created by double cut shear mechanisms. The misting feature on the Anglemaster-663 extends to the shear, now allowing for longer shear life.

shear angle

Six Punches Equals Less Tool Changes

Three punch stations per hydraulic press allow the machine to apply up to three different hole shapes/sizes per leg. A new and improved punch tool design allows for quicker and easier tool changes. The Anglemaster-663 can accommodate shaped holes such as squares, rectangles, obrounds and slots, including a feature that allows nibbling of material for cutting large notches out of angle or flat bar. This particular Anglemaster employs a misting feature in order to maximize punch tooling life during operation through the use of MQL.

6 punches

Roller Feed Redesigned

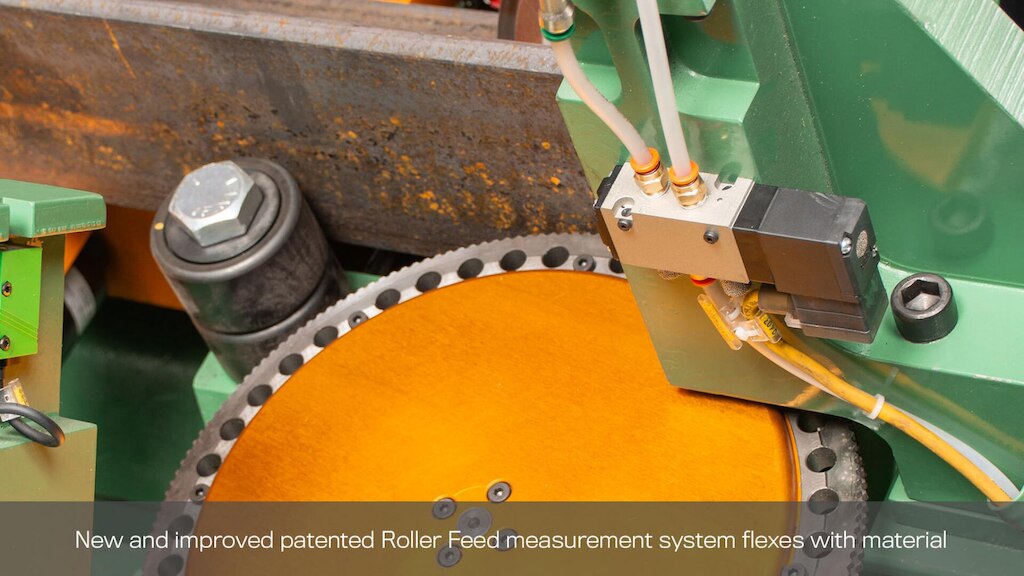

As accurate as measuring material can be, the Roller Feed drive and measurement system from Peddinghaus is designed to improve accuracy even greater than before. By positioning two encoders (infeed and prior to shear) on the machine, steel can pass through piece after piece with no stop in production. This newly designed patented Roller Feed flexes with the material in order to ensure a constant roll and an accurate measurement given deviations in material. This maximizes contact with long parts, eliminating more errors than ever before.

patented roller feed

Stamp or Scribe

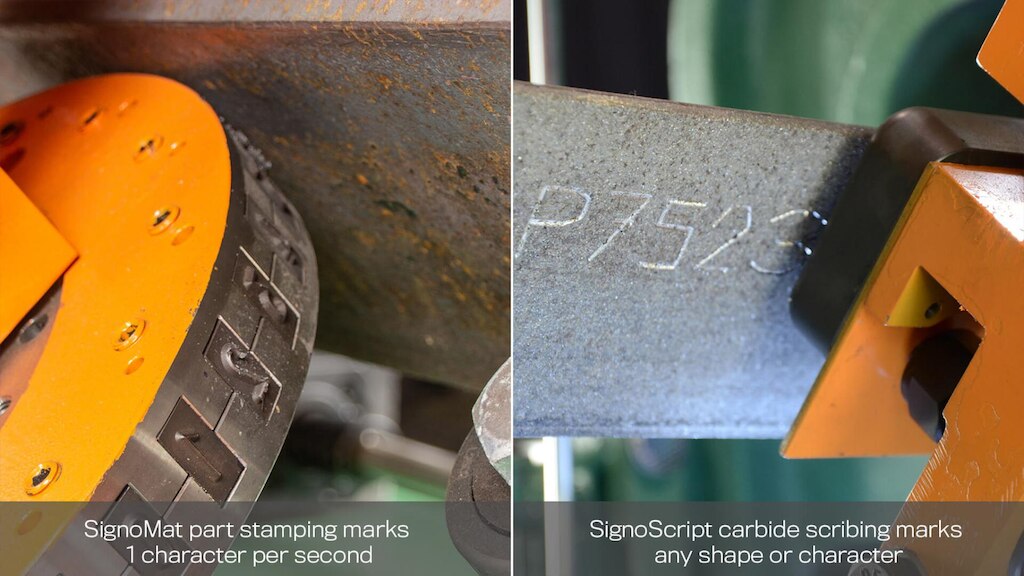

Clear and concise part marking is critical in shop production. Having the information in the right place for your fitters drastically reduces errors and rework. Peddinghaus employs SignoMat part stamping as well as SignoScript carbide scribing to achieve the longest lasting results. The SignoMat part stamping unit holds up to 36 characters, letters or numbers, and are stamped at a depth of 1/32" and have a total height of 1/2". This ensures the markings remain visible even after shot blasting and painting. The SignoScript carbide scribing unit marks layouts as well as characters using CNC precision.

signomat and signoscript

For more information, visit www.peddinghaus.com/anglemaster663
