Intelligent Thermal Cutting

Request Quote

Burn Your Way to Savings

What makes the Ring of Fire perfect for fabricators is it’s advanced 360º approach to cutting sections. This machine not only acts as a superior coping machine, but it can take the place of a drill line, band saw and angle line. With the additional marking on 4 sides of the profile, the Ring of Fire becomes a true powerhouse.

Thermal Cutting

State-of-the-Art Plasma Cutting

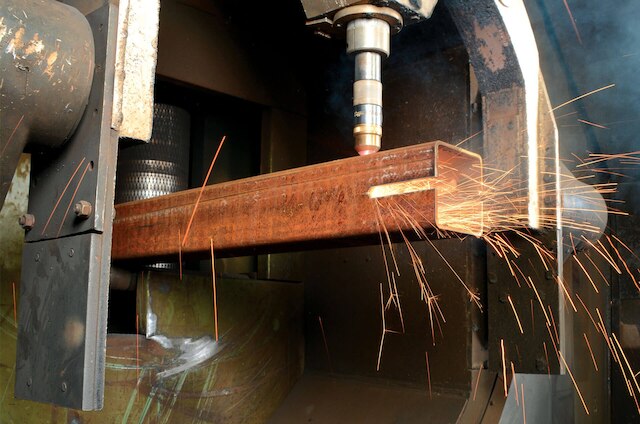

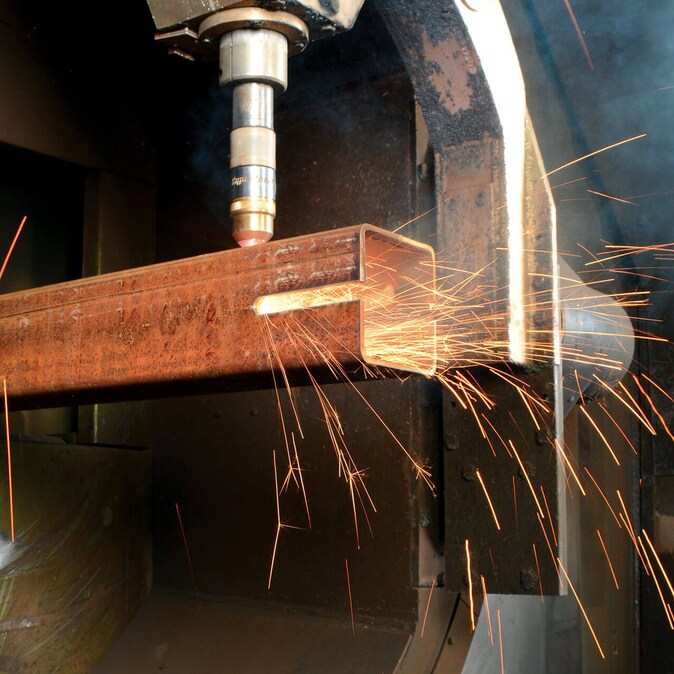

The Ring of Fire is a true one-stop-shop machine capable of processing all structural shapes. With the ability to process plate, flat stock, square tubing, angle, beams and channel, the Ring of Fire can go from fabricating columns and floor beams straight to clip angles and other detail parts in a single pass.

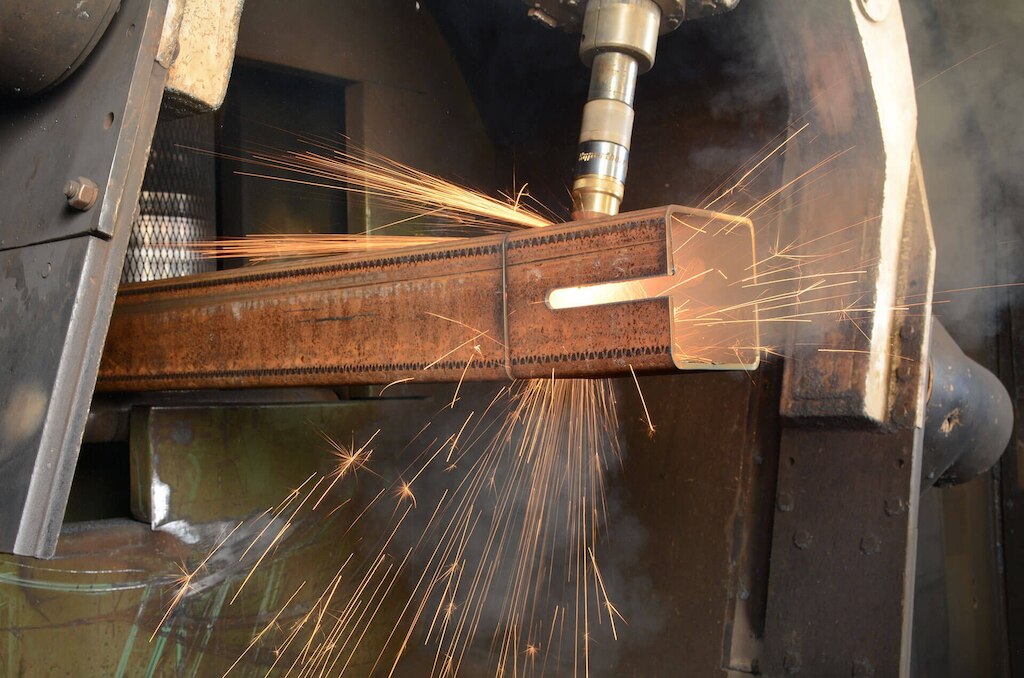

One Machine for All Processes

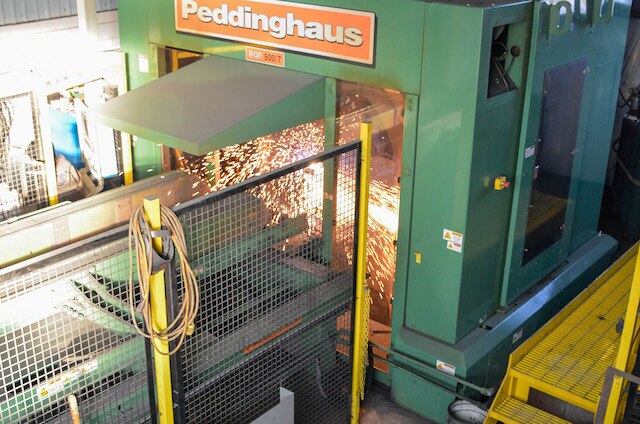

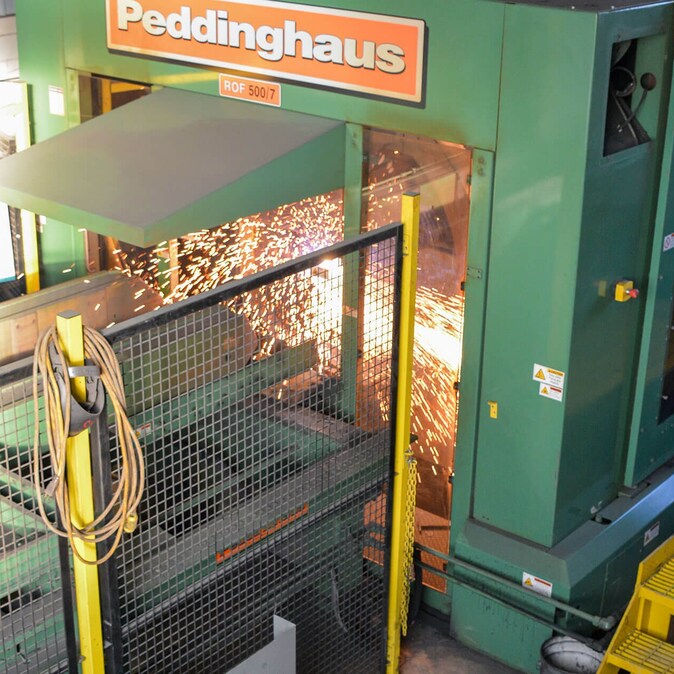

The Ring of Fire from Peddinghaus is the ideal solution for shops looking for a one-stop production package. Harnessing the power of modern plasma technology, the Ring of Fire is capable of processing up to 50 tons of structural steel per week.

One Machine for All Processes

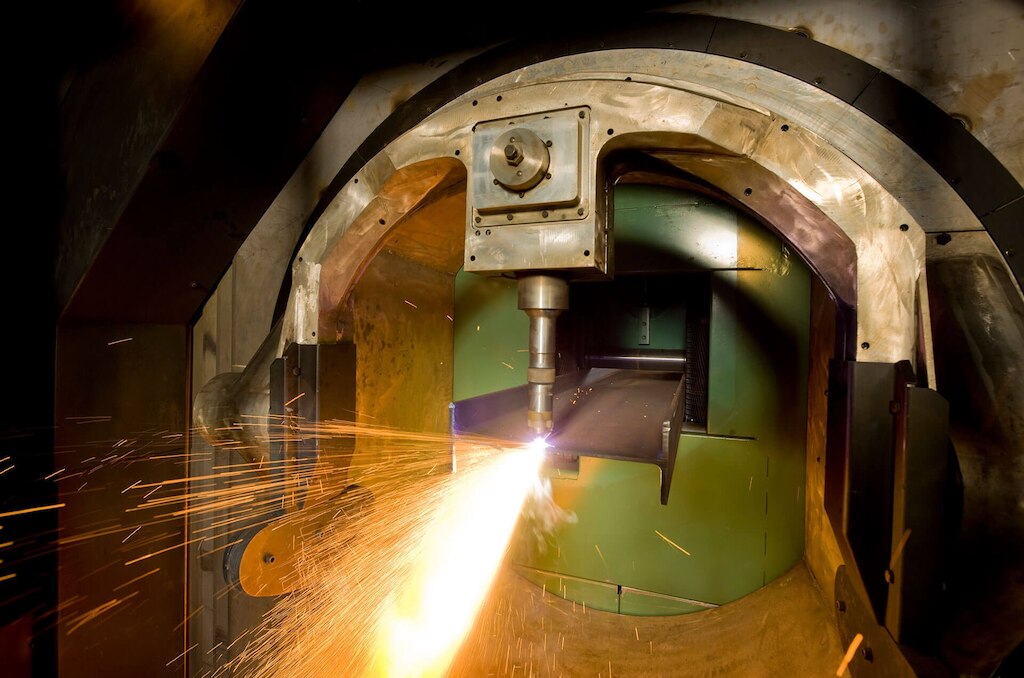

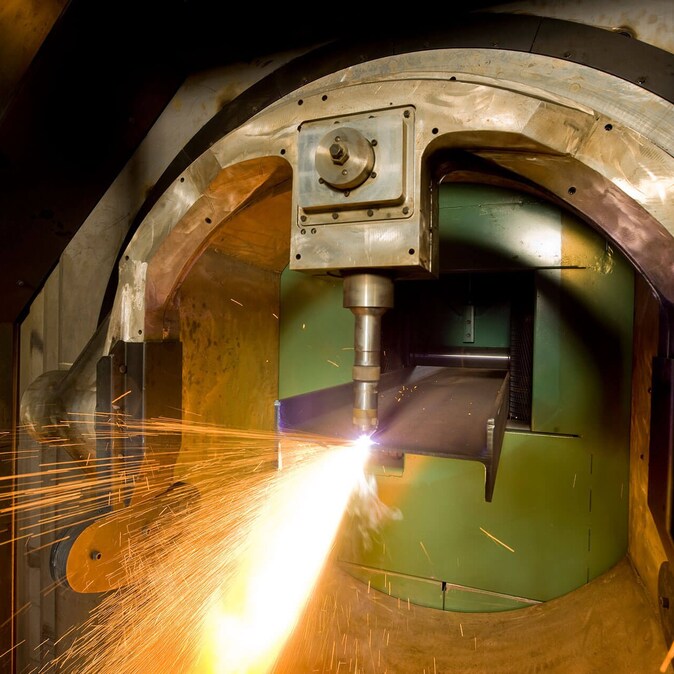

The Most Versatile Plasma Cutting

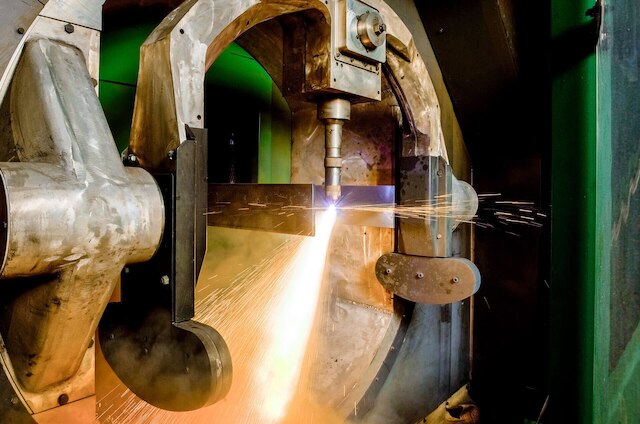

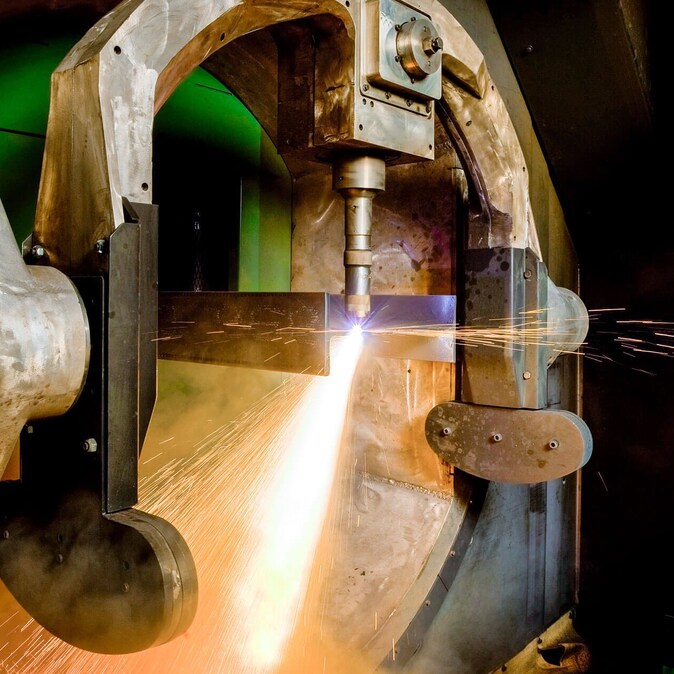

The Ring of Fire utilizes a 360º approach to plasma cutting. A single Hypertherm plasma torch is fixed to a rotating ring, capable of revolving in excess of 360º around the profile being processed. This allows the machine to process all 4 sides of a tube, process each side of a beam, angle or channel and even mark on all 4 sides of any structural profile.

The Most Versatile Plasma Cutting

Integrated Layout Marking

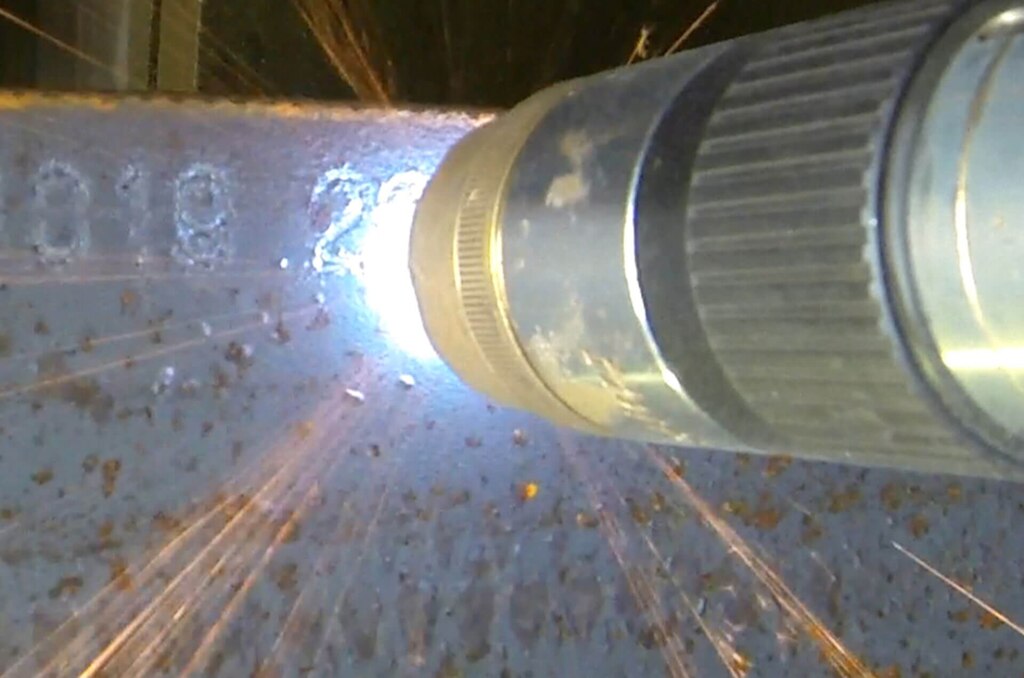

Multi-axis plasma layout marking is a long-lasting and economical solution. Faster than carbide scribing and easier to maintain than a laser, the Ring of Fire utilizes modern layout marking plasma technology. Completely visible through rust and scale, plasma layout marking technology reduces error from manual layout out and marking weld data onto a profile.

Integrated Layout Marking

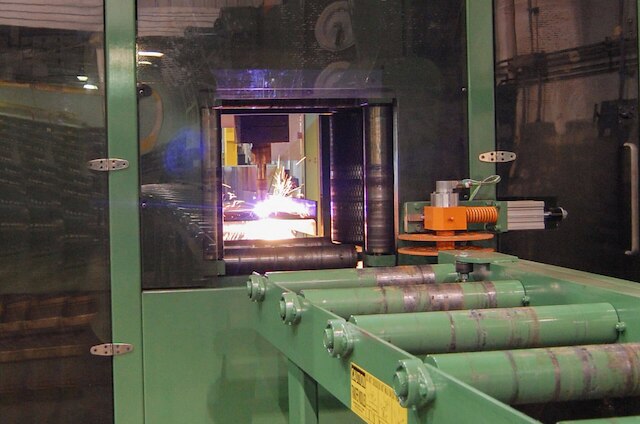

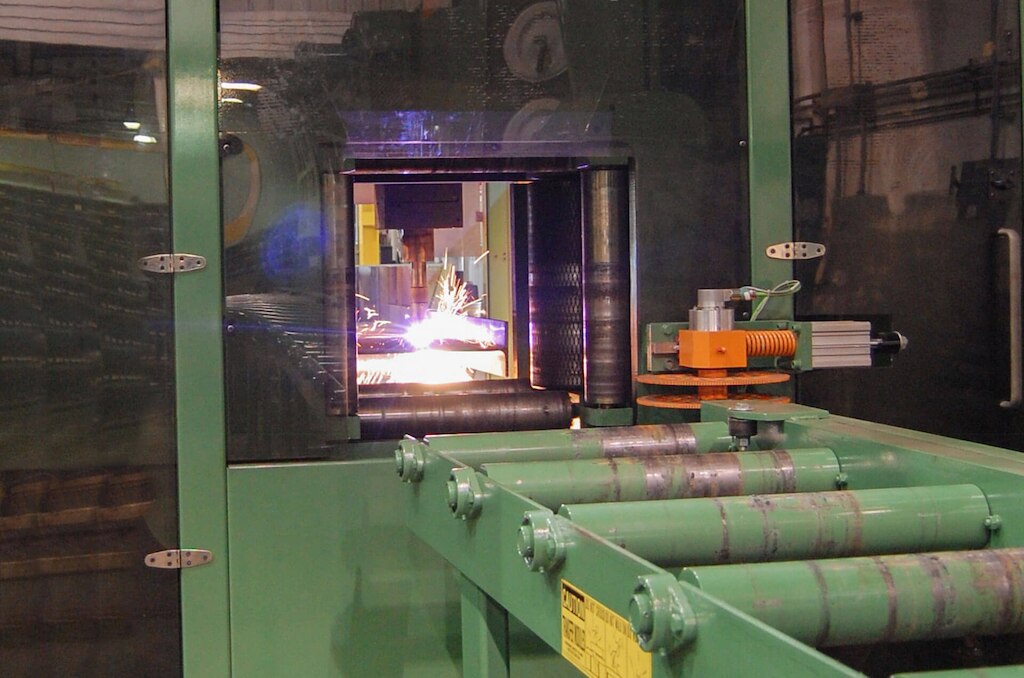

Nonstop Throughput with Roller Feed Measurement

Peddinghaus’ patented Roller Feed Measurement system exceeds the industry standard for roller measurement technology. Maintaining accurate measurements without any hesitation in production is crucial. Accuracy is not compromised even despite deviations in material.

Nonstop Throughput with Roller Feed Measurement

Raptor 3D CAD/CAM Software

Developed by Peddinghaus, Raptor 3D CAD/CAM Software takes CNC innovation further by enabling users to program faster and more accurately. Inspect, modify and export part information directly within the 3D platform. This coupled with Peddinghaus CNC technology means maximum capacity for fabricators.
